915254 - Ariens Edge 52" Zero-Turn Mower, 21.5hp Kawasaki (SN: 002000 & Above) Discharge Chute - 52" Parts Diagram

Edge 52" Zero-Turn Mower, 21.5hp Kawasaki

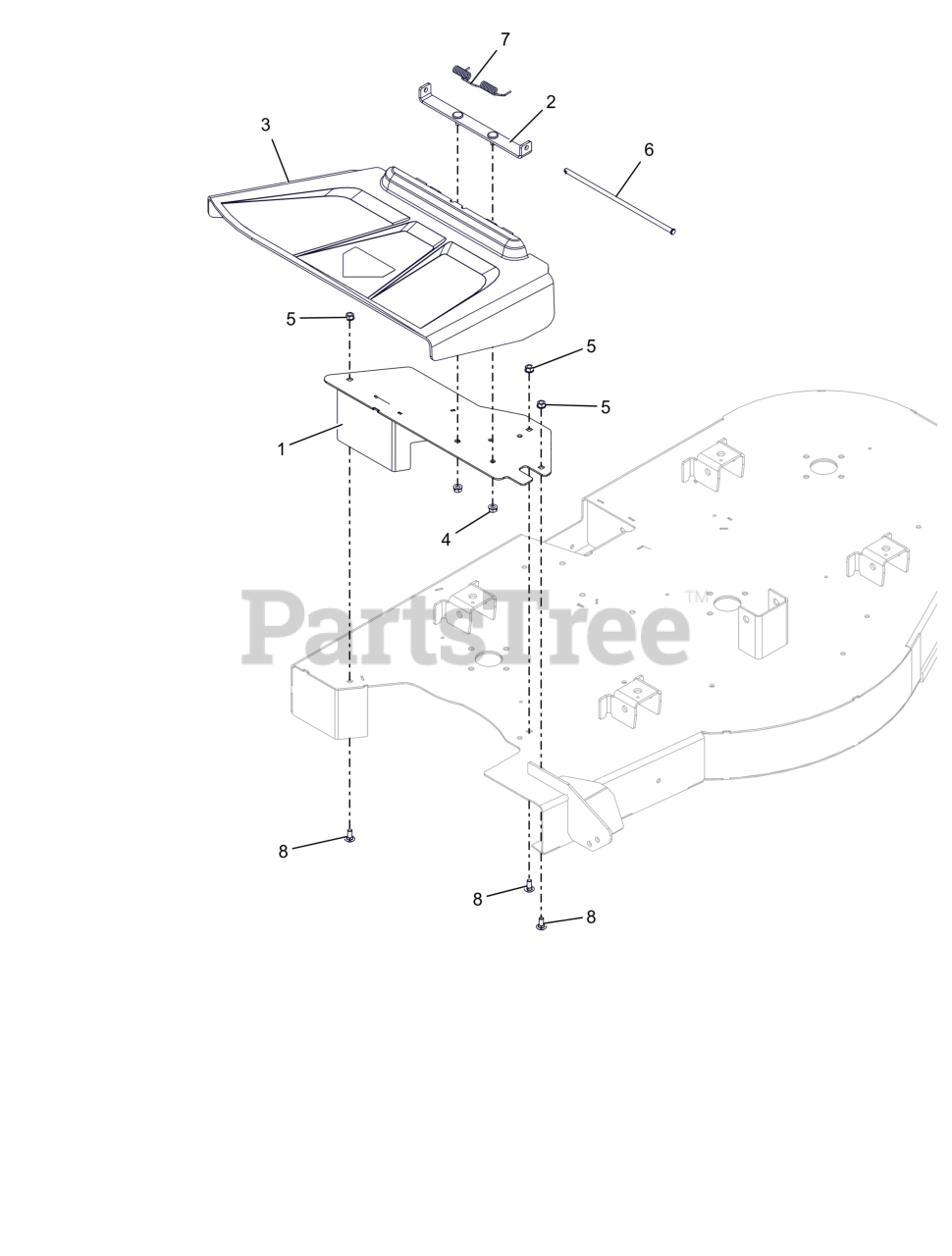

Discharge Chute - 52" Parts Diagram

  • Title
1

Ariens 09156259

WLDMT, DISCHARGE PLATE (ORANGE)

$75.99

$

In Stock, only 1 left!

0

2

$21.99

$

In Stock, Qty 20+

0

3

Ariens 04795000

CHUTE, SIDE DISCHARGE

$45.99

$

In Stock, Qty 20+

0

4

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06800205

PIN, SLIC-.312X10.45

$15.99

$

In Stock, Qty 20+

0

7

Ariens 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 20+

0

8

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0
