915253 - Ariens Edge 42" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 002000 & Above) Deck Lift - 42" and 52" Parts Diagram

Edge 42" Zero-Turn Mower, 20hp Briggs & Stratton

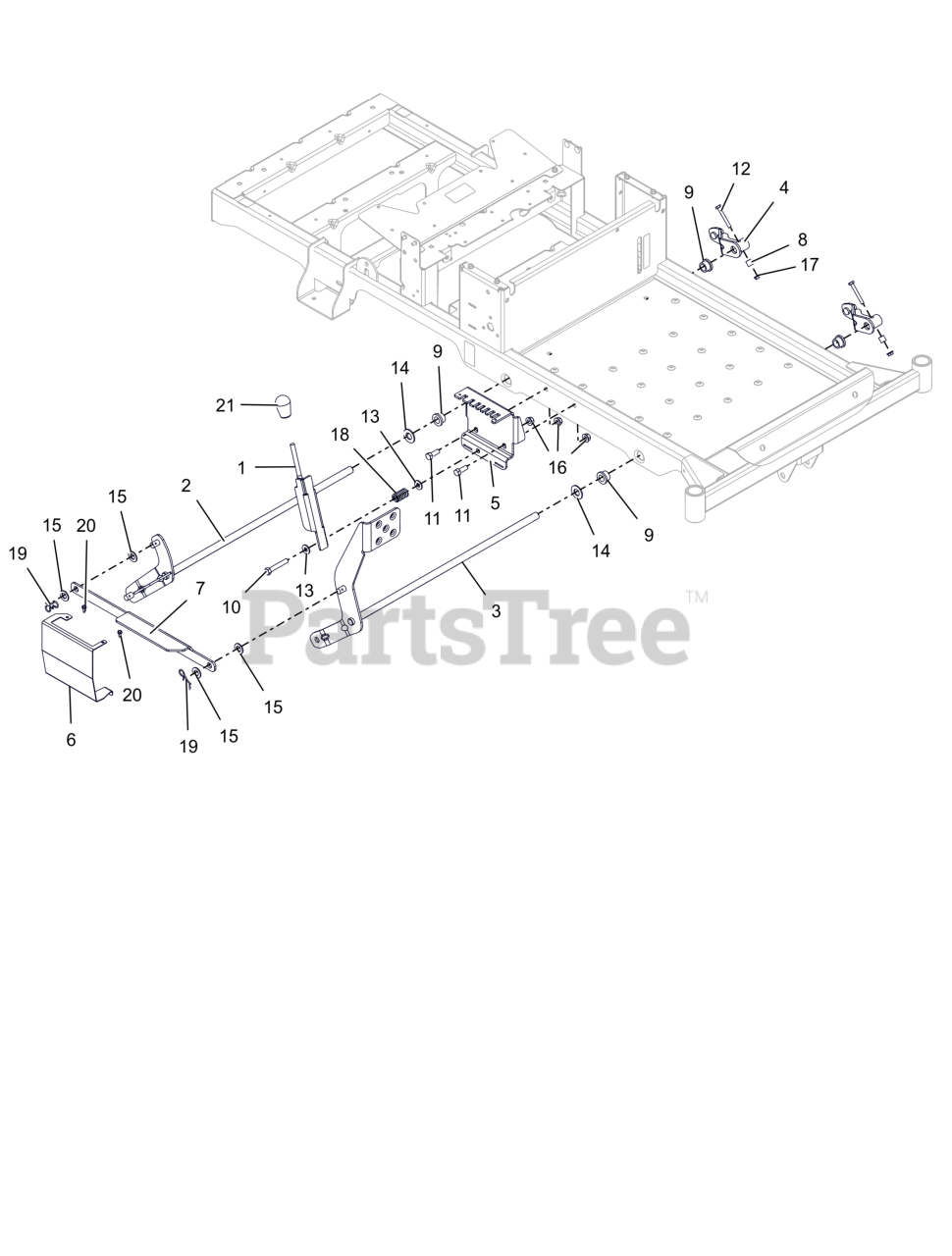

Deck Lift - 42" and 52" Parts Diagram

  • Title

1

Ariens 04391559

WLDMT, HEIGHT OF CUT (ORANGE)

$168.99

$

Usually ships in 4-12 days

0

2

Ariens 05280559

WLDMT, REAR DECK LIFT (ORANGE)

$88.99

$

Usually ships in 4-12 days

0

3

Ariens 05280659

WLDMT, FOOTPEDAL (ORANGE)

$95.99

$

Usually ships in 4-12 days

0

4

Ariens 05298459

WLDMT, DECK LIFT ARM (ORANGE)

$29.99

$

Usually ships in 4-12 days

0

5

Ariens 04377959

PLATE, HEIGHT (ORANGE)

$

$

Not available

6

Ariens 04723759

GUARD, DECK HOC (ORANGE)

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 05292659

LINK, LIFT /HOC (ORANGE)

$

$

Not available

8

Ariens 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 05519100

BSHG-FLG .629X.879X.469X1.250

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

11

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05901740

BLT, HEX .25-20X2.00 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06401118

WSHR, FLT .656X1.313X.095 ZCC

$2.49

$

In Stock, only 3 left!

0

15

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08300631

SPRG, COMPRESSION

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 06700220

PIN, BOWTIE .091X1.875 ZCC

$1.99

$

In Stock, Qty 20+

0

20

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

21

Ariens 07500224

KNOB,SOFT TEARDROP,PUSH-ON BLK

$

$

Not available
