915251 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 002000 & Above) Idlers and Sheaves - 34" Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

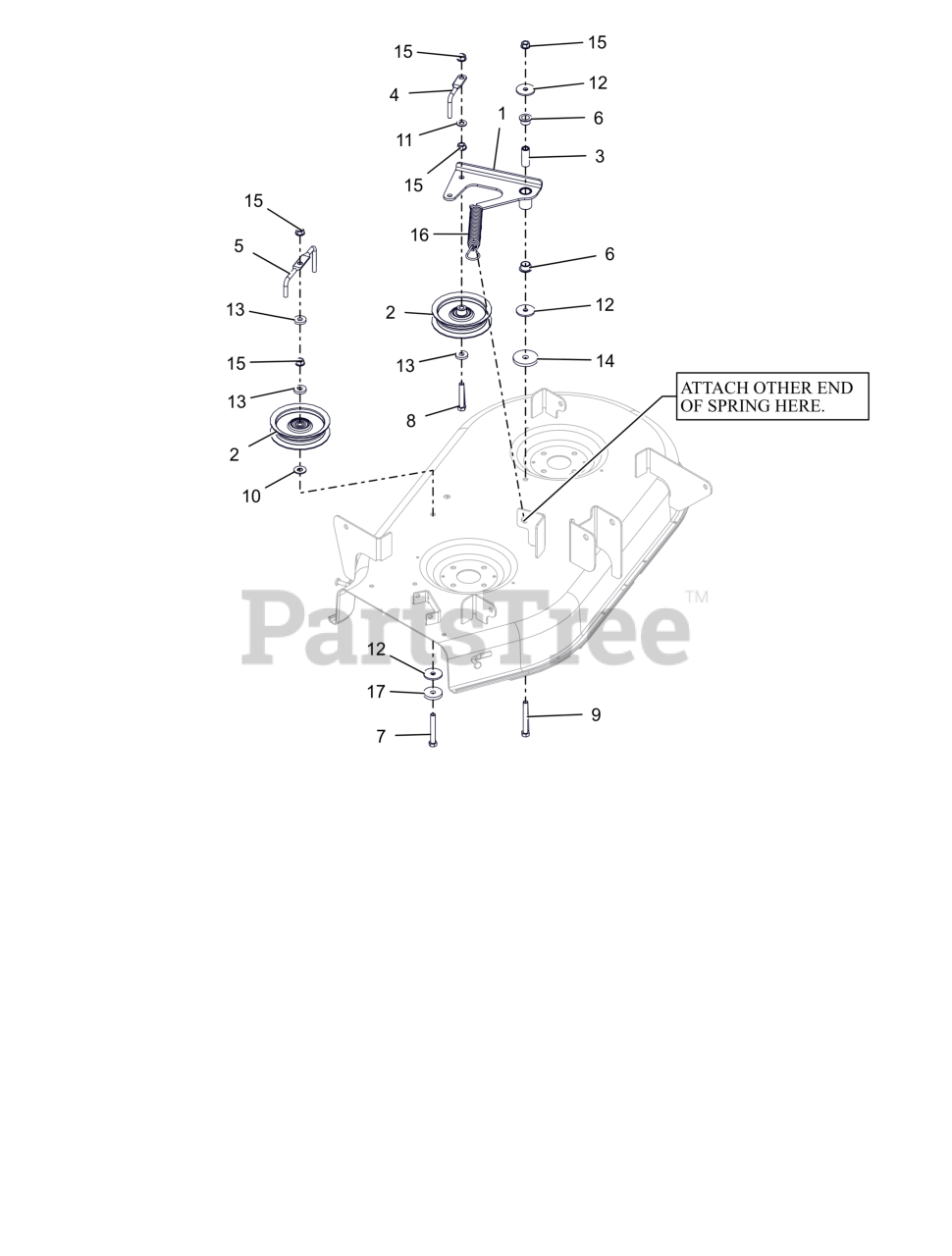

Idlers and Sheaves - 34" Parts Diagram

  • Title

1

Ariens 04430859

WLDMT, IDLER ARM (ORANGE)

$63.99

$

Usually ships in 4-12 days

0

2

Ariens 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

3

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Ariens 03828800

WIREFORM-BELT FINGER

$9.49

$

In Stock, only 1 left!

0

5

Ariens 03974100

BELT FINGER

$

$

Not available

6

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

7

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

8

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05901814

BLT, HEX .38-16X3.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 9

0

13

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, only 2 left!

0

15

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0

17

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0
