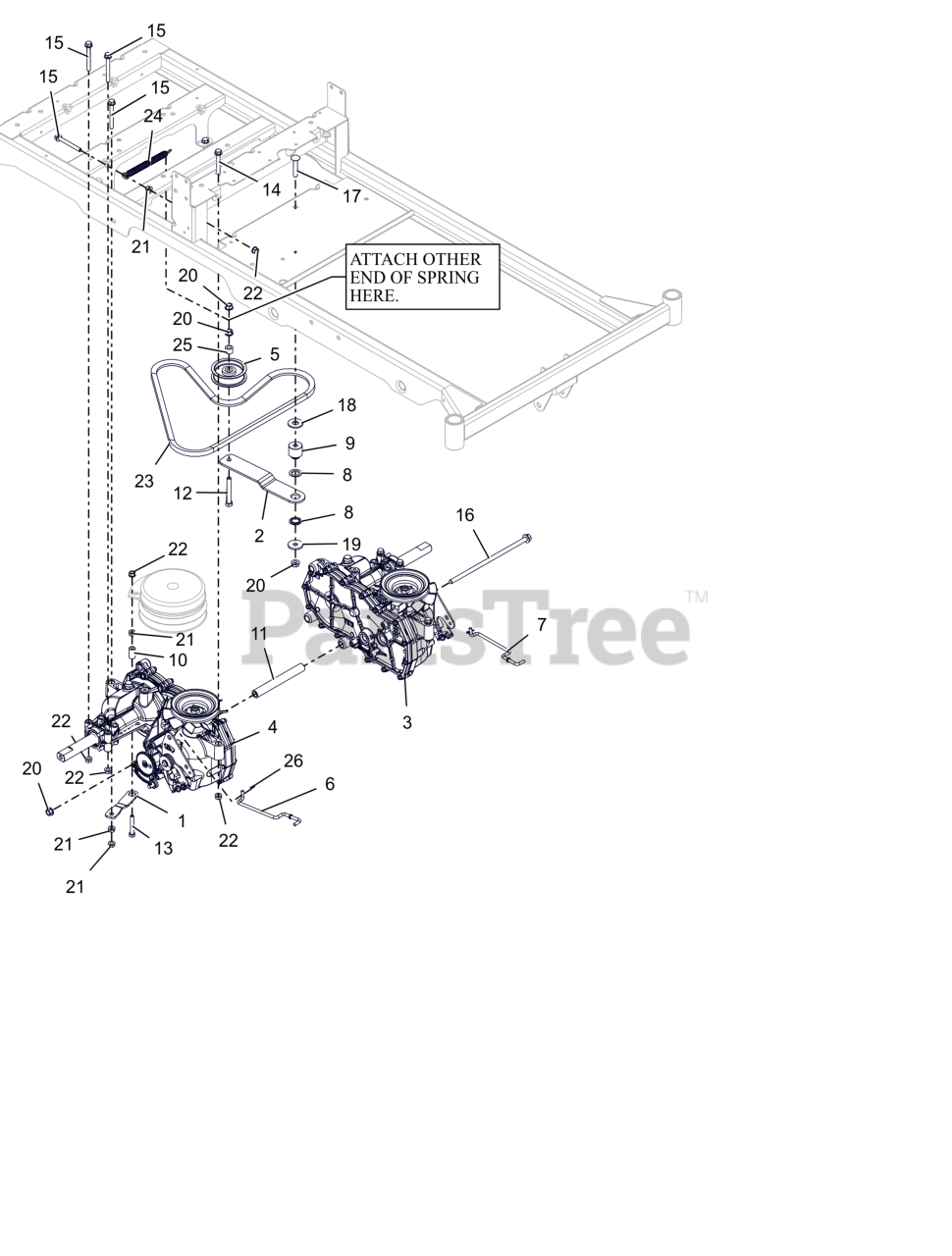

915251 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 001999) Transaxles and Idler Pulley 34" Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

Transaxles and Idler Pulley 34" Parts Diagram

  • Title

1

Ariens 03956700

BRKT, CLUTCH

$

$

Currently unavailable

2

Ariens 03961000

IDLER ARM, GROUND DRIVE
(Superseded to 03961067)

$

$

Not available

3

Ariens 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

$

$

Not available

4

Ariens 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

$

$

Not available

5

Ariens 07300221

PULLEY, ENGINE CLUTCH 03608

$30.99

$

In Stock, only 1 left!

0

6

Ariens 03762700

DUMPVALVE, RH LCZ

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 03762800

DUMPVALVE, LH LCZ

$28.99

$

Usually ships in 4-12 days

0

Not Shown

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

Note: Not Shown Clip to hold Dump Valve Lever

$0.99

$

In Stock, Qty 12

0

8

Ariens 03960700

BUSHING, IDLER ARM

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 03961100

SPACER, GROUND DRIVE IDLER

$5.99

$

In Stock, only 1 left!

0

10

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 2 left!

0

11

Ariens 05281800

SPCR, TRANSAXLE .438 ID X .750 OD X 8.18

$12.99

$

In Stock, Qty 5

0

12

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

13

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 05902032

BLT, HEX-FLG 0.375-16X9.75 GR5 ZC120

$9.49

$

In Stock, Qty 11

0

17

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 1 left!

0

19

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

20

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07200010

V-BELT, HA-RAW EDGE

$36.99

$

In Stock, only 2 left!

0

24

Ariens 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

25

Ariens 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, only 1 left!

0

26

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 12

0
