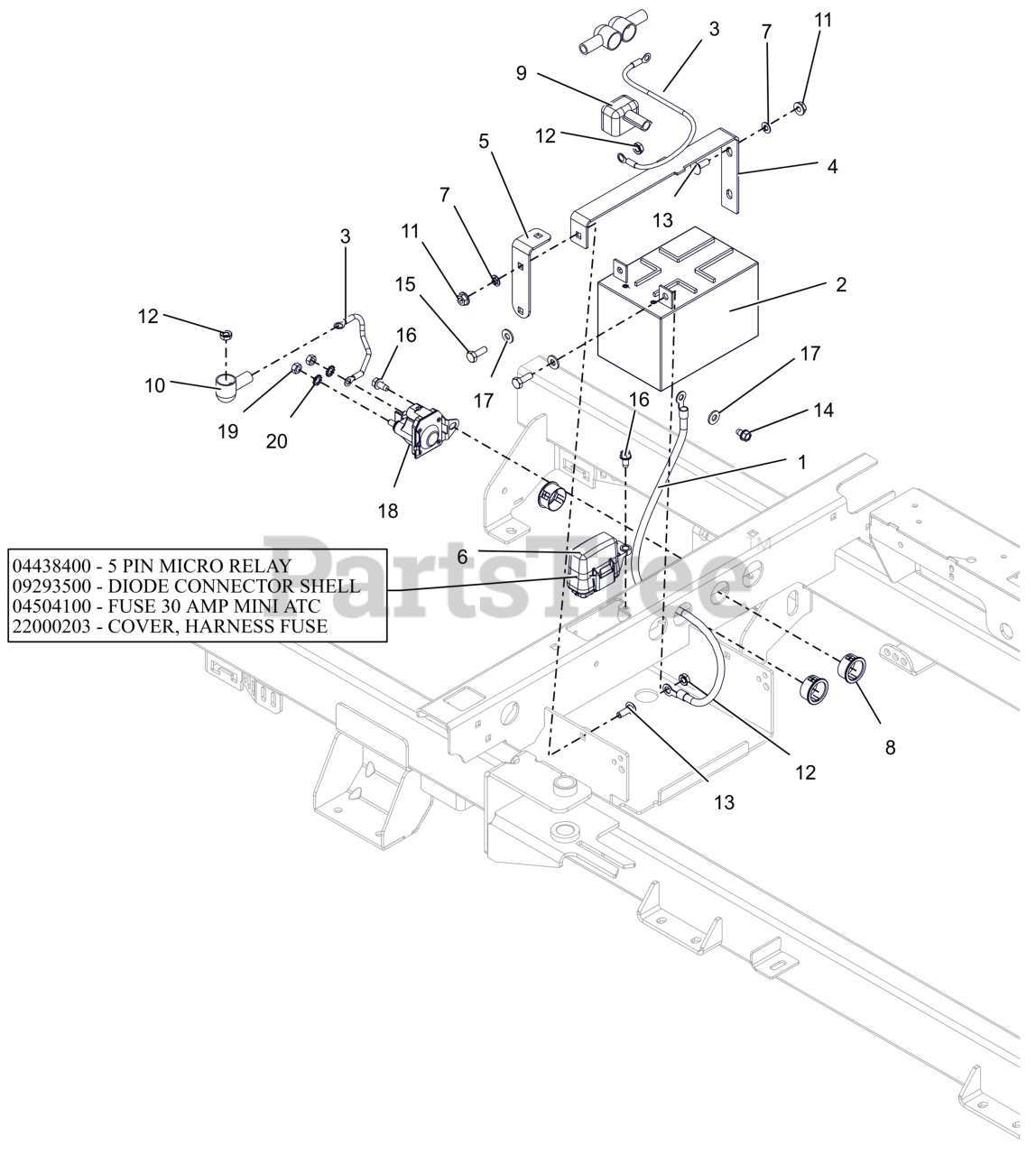

915250 (ZTX 52) - Gravely 52" Zero-Turn Mower, 24hp Kohler (SN: 085000 & Above) Electrical Parts Diagram

52" Zero-Turn Mower, 24hp Kohler

Electrical Parts Diagram

  • Title
1

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

2

Gravely 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

3

Gravely 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 1 left!

0

4

Gravely 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 04833651

BRKT, BATTERY HOLD DOWN

$

$

Not available

6

Gravely 04974400

HARNESS, WIRE-4POS KEY IKON/ZT
(Superseded to 05295600)

$102.99

$

In Stock, only 1 left!

0

6

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: SERVICE PART

$19.99

$

In Stock, only 1 left!

0

6

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: SERVICE PART

$11.99

$

In Stock, only 3 left!

0

6

Gravely 04504100

FUSE,30 AMP MINI-ATC

Note: SERVICE PART

$

$

Not available

6

Gravely 22000203

COVER, FUSE

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

8

Gravely 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

11

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

13

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

14

Gravely 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 17

0

19

Gravely 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

20

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0
