915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 085000 & Above) Controls Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

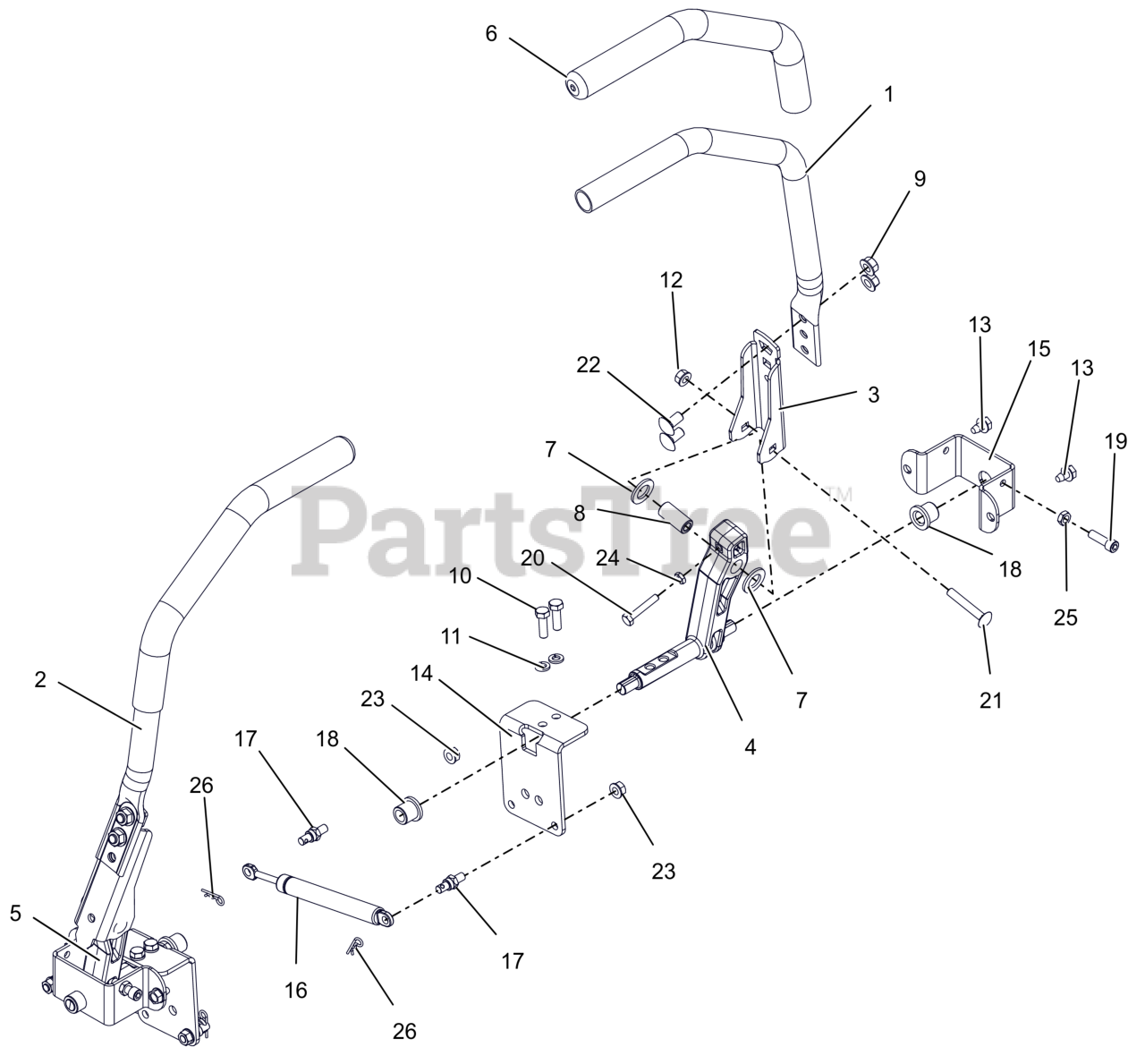

Controls Parts Diagram

  • Title
1

Gravely 05107151

HANDLE, STEERING - LH (BLACK)

$26.99

$

In Stock, only 1 left!

0

2

Gravely 05107051

HANDLE, STEERING - RH (BLACK)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 05179651

ARM, CONTROL -UPPER RH (BLACK)

$43.99

$

In Stock, only 1 left!

0

4

Gravely 05177200

STEERING, LH LWR CAST ARM
(Superseded to 09155500)

$39.99

$

In Stock, Qty 17

0

5

Gravely 05177100

STEERING, RH LWR CAST ARM
(Superseded to 09155400)

$36.99

$

In Stock, only 1 left!

0

6

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 2 left!

0

7

Gravely 06401130

WSHR, FRICTION

$4.99

$

In Stock, only 3 left!

0

8

Gravely 05501334

BSHG-SLV .342 X .627 X 1.331

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04764151

BRKT, STEEERING

$38.99

$

Usually ships in 4-12 days

0

15

Gravely 04990951

BRKT, STEERING

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 05160400

DAMPER, STRAIGHT MOUNT

$36.99

$

In Stock, only 2 left!

0

17

Gravely 05171400

COUPLER, DAMPER MOUNT

$6.99

$

In Stock, only 2 left!

0

18

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

19

Gravely 05901733

SCR, SKH .312-18X1.00 G8 ZC120

$2.99

$

In Stock, only 2 left!

0

20

Gravely 05902030

BLT, HEX 0.25-20X1.5F GR5 ZCC

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

22

Gravely 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500908

NUT-JAM .250-20 G2 ZCC

$0.99

$

Usually ships in 4-12 days

0

25

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0
