915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 080000 - 084999) Front Caster Wheels Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

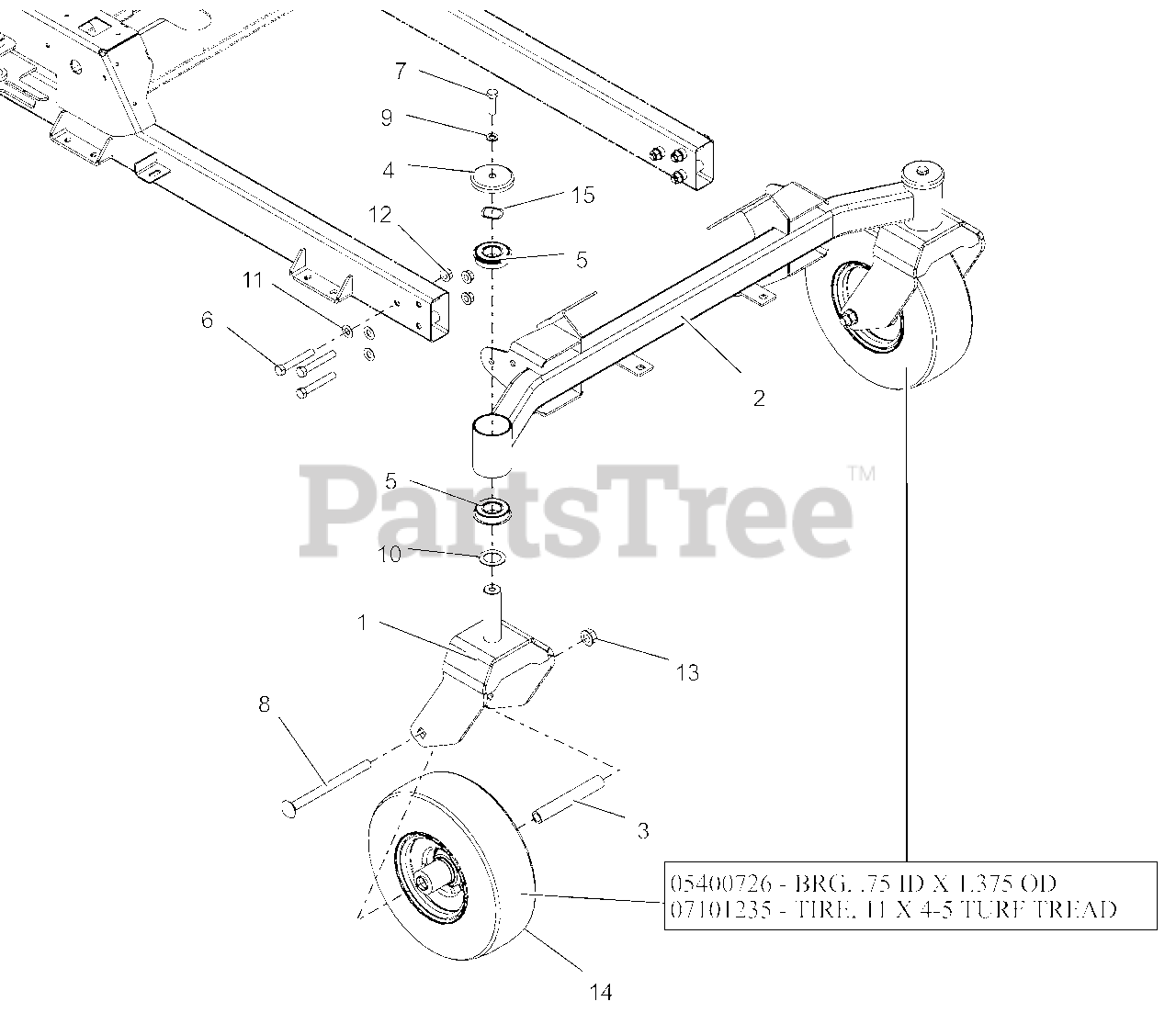

Front Caster Wheels Parts Diagram

  • Title

1

Gravely 05198253

WLDMT, CASTER FORK-X (RED)
(Superseded to 05266153)

$88.99

$

Usually ships in 4-12 days

0

2

Gravely 05198153

WLDMT, FRONT AXLE-X/XL (RED)

$221.99

$

Usually ships in 4-12 days

0

3

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

4

Gravely 05198400

SHIELD, AXLE BEARING

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

In Stock, Qty 6

0

6

Gravely 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

In Stock, only 4 left!

0

7

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, only 2 left!

0

9

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06401129

WSHR-FL-STL 0.406X0.812X0.055 HRD

$1.49

$

In Stock, Qty 5

0

12

Gravely 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

14

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

14

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 07108600

TUBE 11 X4.0-5 TR87

Note: Optional Component Service Part

$11.99

$

In Stock, only 2 left!

0

15

Gravely 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 20+

0
