915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 080000 - 084999) Deck, Belt, Blades And Spindles - 42" Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

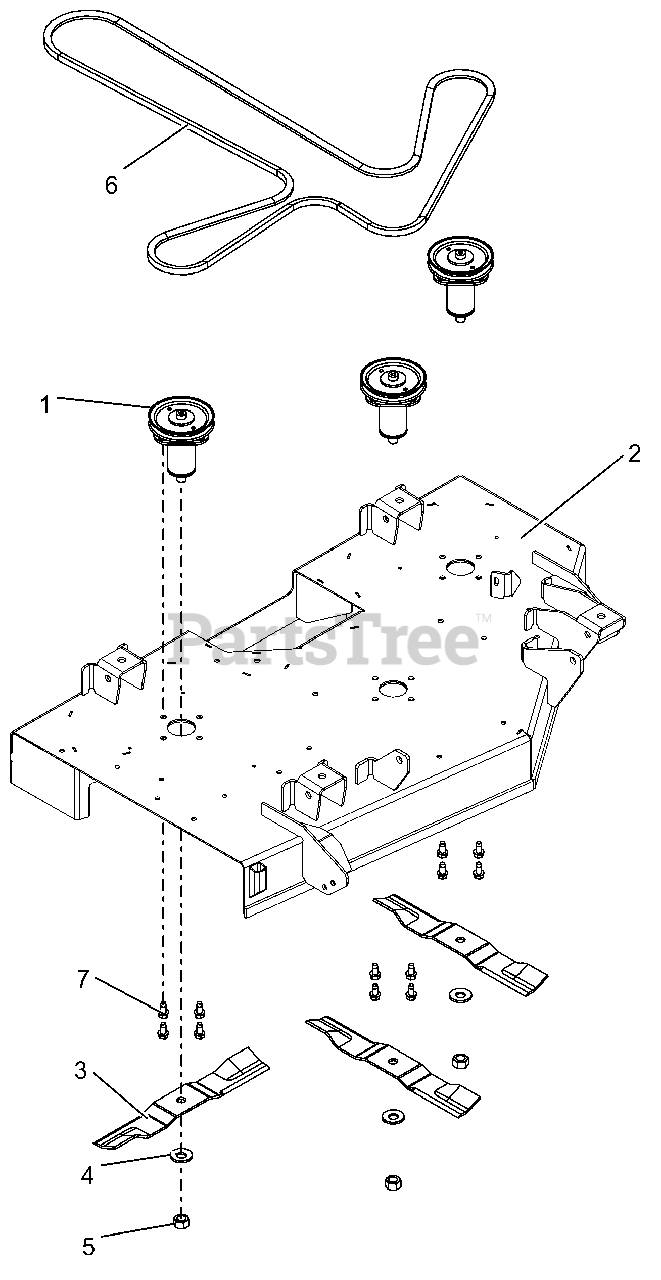

Deck, Belt, Blades And Spindles - 42" Parts Diagram

  • Title
1

Gravely 51527900

KIT, DECK SPINDLE ASM-IKON-ZTX
(Superseded to 51537000)

$182.99

$

In Stock, only 3 left!

0

2

Gravely 51532200

KIT, 42" GRAVELY DECK W/DECALS

$

$

Not available

3

Gravely 04769800

BLADE, MOWER 15.00"

$25.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

5

Gravely 06500920

NUT-STD .625-18 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07200523

V-BELT, 4L-WRAPPED

$69.99

$

In Stock, Qty 20+

0

7

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
