915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 075000 - 079999) Controls Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

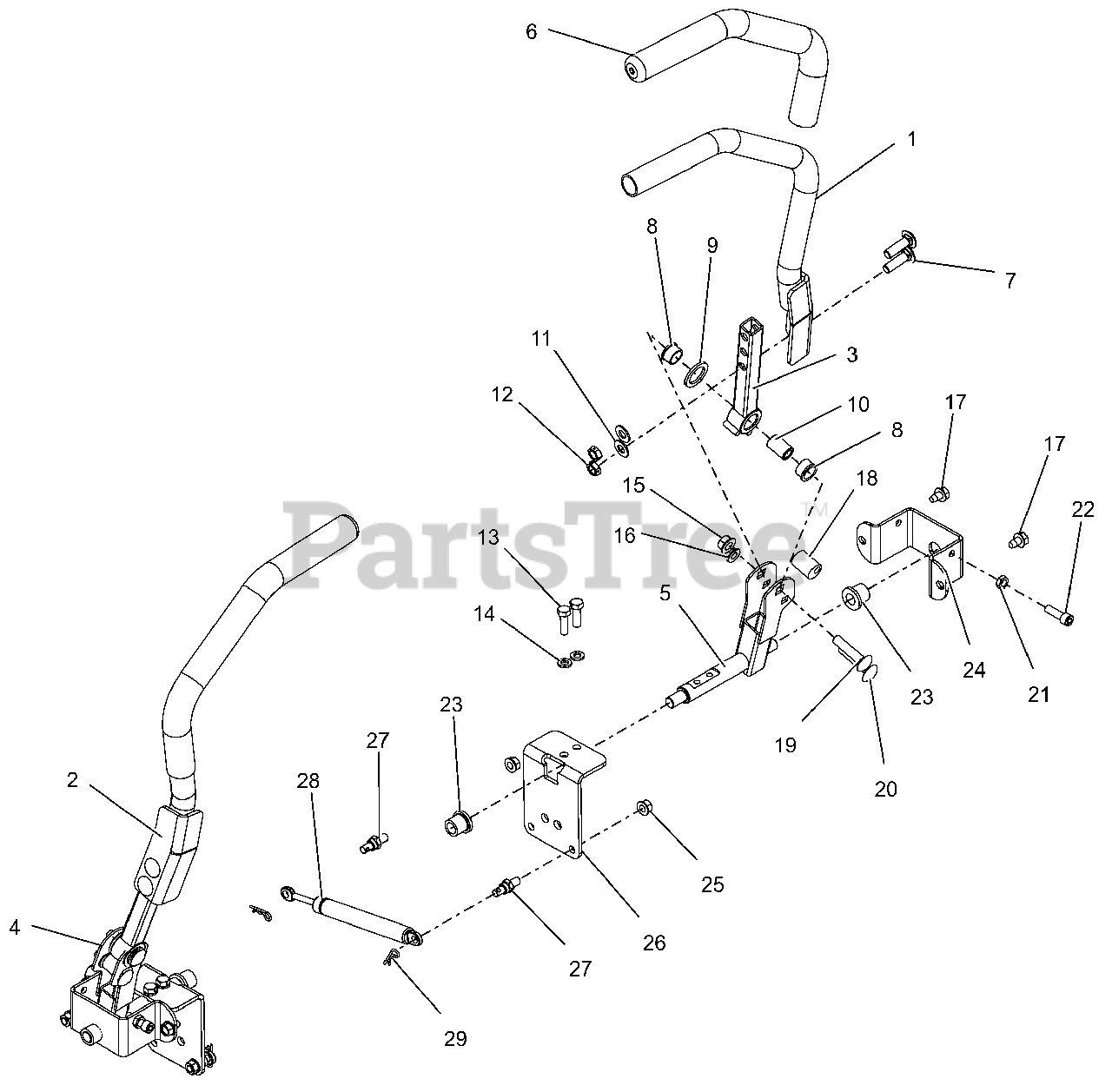

Controls Parts Diagram

  • Title
1

Gravely 04796151

WLDMT, STEERING HANDLE LH

$51.99

$

In Stock, only 1 left!

0

2

Gravely 04796051

WLDMT, STEERING HANDLE RH

$64.99

$

In Stock, only 1 left!

0

3

Gravely 04959251

WLDMT, UPPER CONTROL ARM

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 04959051

WLDMT,STEERING ARM LOWER RIGHT

$127.99

$

Usually ships in 4-12 days

0

5

Gravely 04959151

WLDMT,STEERING ARM LOWER LEFT

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 1 left!

0

7

Gravely 06200220

BLT,RHSSN-.375X1.25 G5 RIE5230
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05501017

BSHG-FLG, .625X.75X.450X.875

$7.99

$

In Stock, only 3 left!

0

9

Gravely 04832600

WASHER, FRICTION .875X1.25X.10

$5.99

$

In Stock, only 2 left!

0

10

Gravely 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

14

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

19

Gravely 06200221

BLT,RHSSN-.375X1.75 G5 RIE5230

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 06200222

BLT,RHSSN-.312X1.75 G5 RIE5230

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05901733

SCR, SKH .312-18X1.00 G8 ZC120

$2.99

$

In Stock, only 2 left!

0

23

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

24

Gravely 04990951

BRKT, STEERING

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

26

Gravely 04764151

BRKT, STEEERING

$38.99

$

Usually ships in 4-12 days

0

27

Gravely 05171400

COUPLER, DAMPER MOUNT

$6.99

$

In Stock, only 2 left!

0

28

Gravely 05160400

DAMPER, STRAIGHT MOUNT

$36.99

$

In Stock, only 1 left!

0

29

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0
