915245 - Ariens Edge 42" Zero-Turn Mower, 19hp Kohler (SN: 002000 & Above) Muffler Guarding Parts Diagram

Edge 42" Zero-Turn Mower, 19hp Kohler

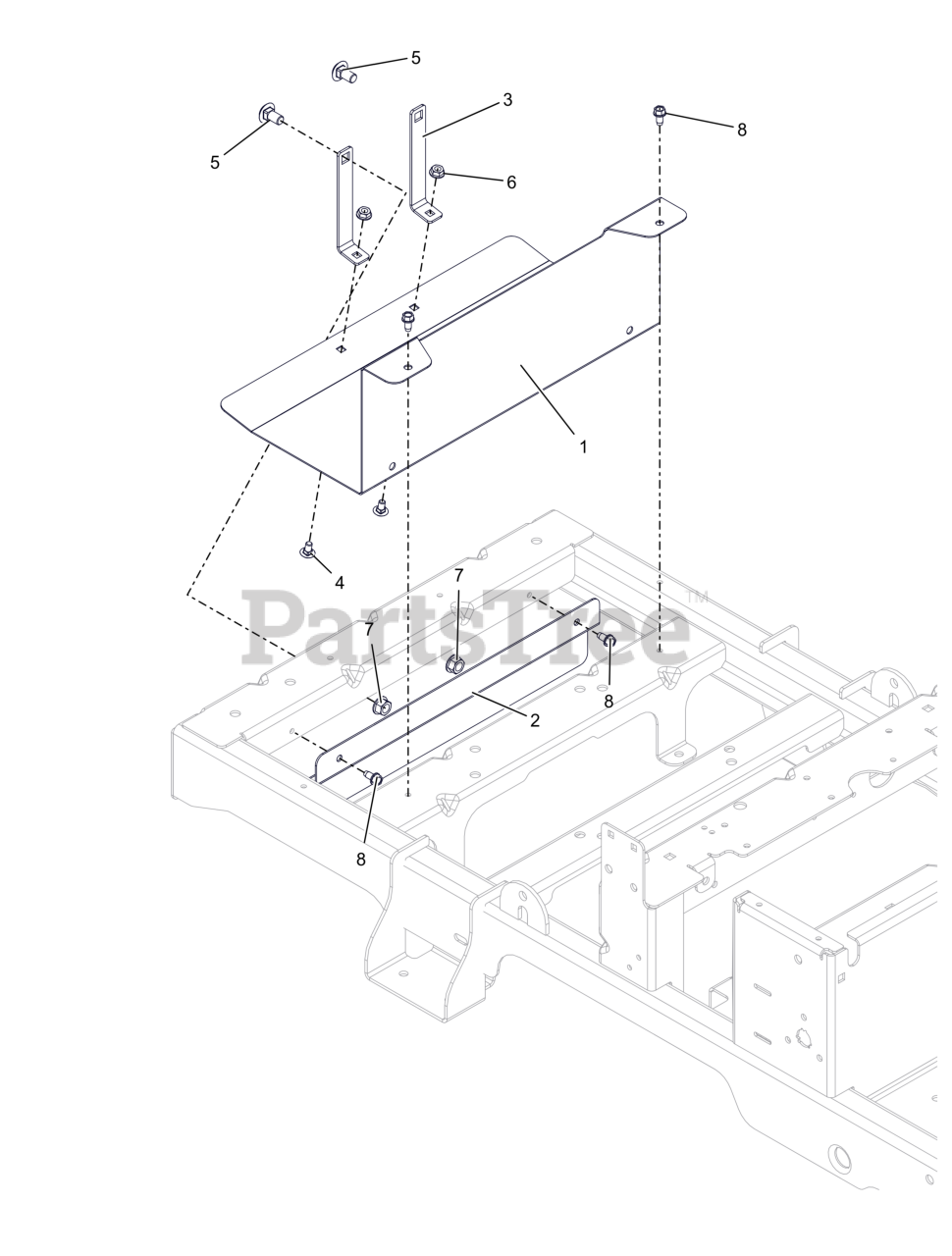

Muffler Guarding Parts Diagram

  • Title
1

Ariens 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 05288351

GUARD, EXHAUST (BLACK)

$

$

Currently unavailable

3

Ariens 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06200312

BLT, RHSN .38-16X.750 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

6

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
