915245 - Ariens Edge 42" Zero-Turn Mower, 19hp Kohler (SN: 000101 - 001900) Front and Rear Wheels 42" & 52" Parts Diagram

Edge 42" Zero-Turn Mower, 19hp Kohler

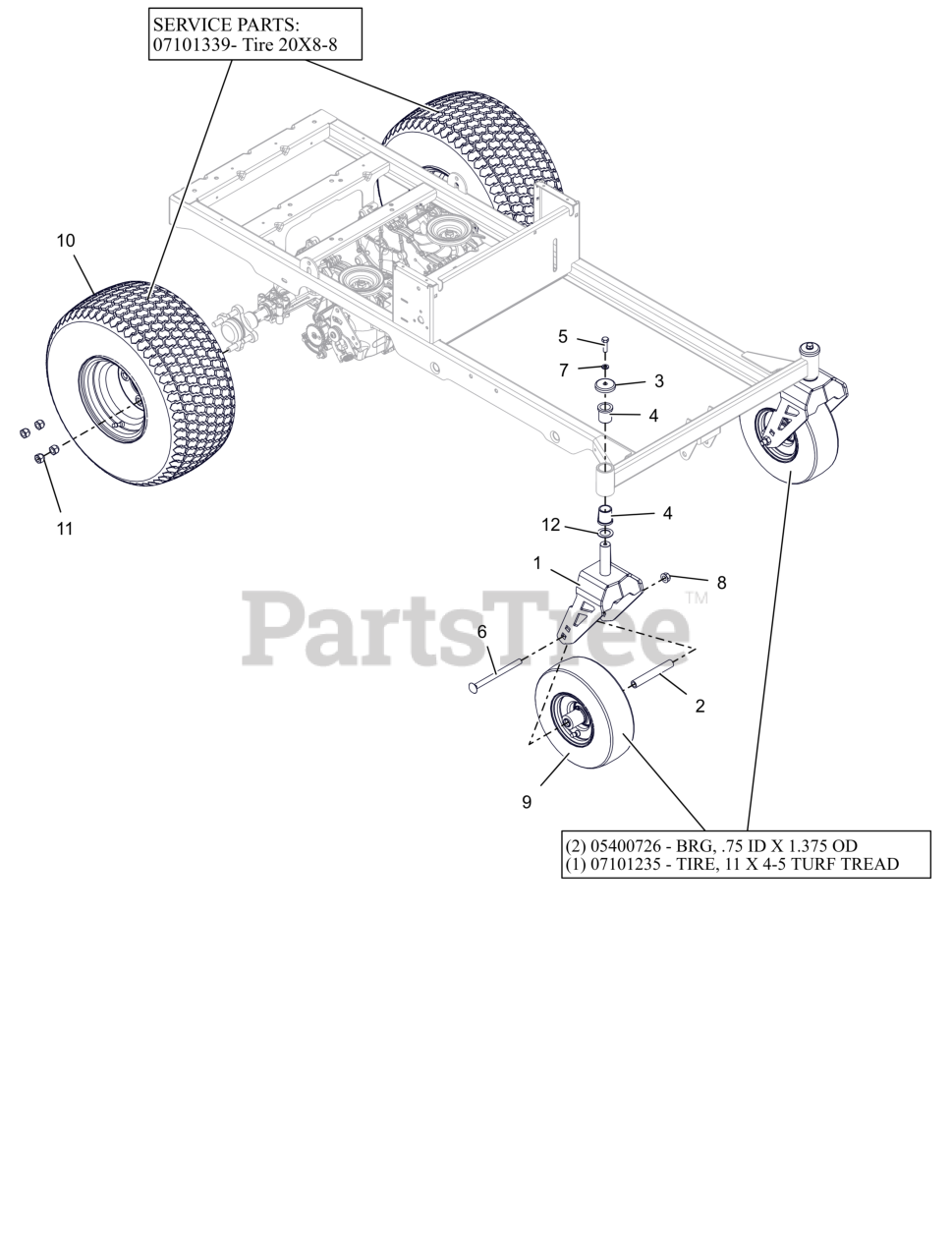

Front and Rear Wheels 42" & 52" Parts Diagram

  • Title

1

Ariens 05295759

WLDMT, CASTER FORK-XD (ORANGE)

$147.99

$

Usually ships in 4-12 days

0

2

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

3

Ariens 05290100

SHIELD, AXLE BEARING

$

$

Not available

4

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

5

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

9

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Service Component Part

$

$

Not available

9

Ariens 07101235

TIRE, 11X4-5 TURF TREAD

Note: Service Component Part

$51.99

$

Usually ships in 4-12 days

0

9

Ariens 07108600

TUBE 11 X4.0-5

Note: Optional Service Component Part

$11.99

$

In Stock, only 2 left!

0

10

Ariens 07101334

ASSM TIRE\WHEEL, 20 X 8 -8

$148.99

$

Usually ships in 4-12 days

0

10

Ariens 07101339

TIRE, 20 X 8-8

Note: Service Component Part

$79.99

$

In Stock, only 1 left!

0

11

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0
