915244 (ZT 34) - Gravely 34" Zero-Turn Mower, 19hp Kohler Twin (SN: 000101 & Above) Belt Covers And Blades - 34" Parts Diagram

34" Zero-Turn Mower, 19hp Kohler Twin

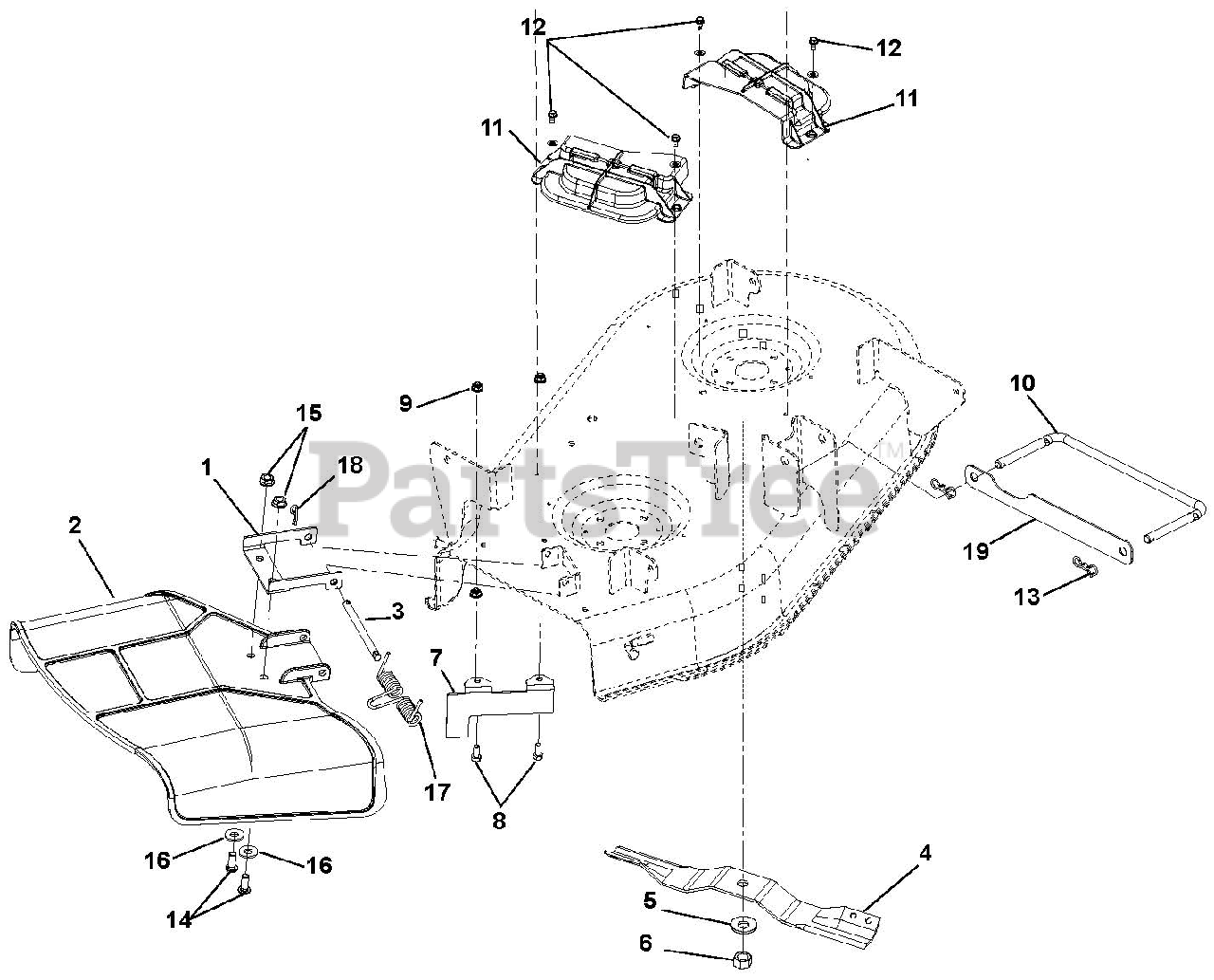

Belt Covers And Blades - 34" Parts Diagram

  • Title

1

Gravely 00662653

BRKT, CHUTE REINFORCEMENT

$

$

Not available

2

Gravely 03994300

CHUTE, SIDE DISCHARGE

$54.99

$

In Stock, only 1 left!

0

3

Gravely 06800002

PIN, 5/16 X 3.88"

$9.49

$

Usually ships in 4-12 days

0

4

Gravely 03971900

BLADE, MOWER 17.35

$23.99

$

In Stock, Qty 20+

0

5

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

6

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03779253

BRKT-BAFFLE, DISCHARGE 34"

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04377667

WIREFORM, DRAG LINK
(Superseded to 04377600)

$23.99

$

In Stock, only 1 left!

0

11

Gravely 04323800

COVER-BELT, MOLDED

$

$

Not available

12

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01258100

SPRING, TORSION

$9.49

$

In Stock, Qty 8

0

18

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 04424951

STRAP, DRAG LINK
(Superseded to 04424967)

$20.99

$

In Stock, only 1 left!

0
