915243 - Ariens Edge 34" Zero-Turn Mower, 19hp Kohler (SN: 002000 & Above) Deck Lift 34" Cont. Parts Diagram

Edge 34" Zero-Turn Mower, 19hp Kohler

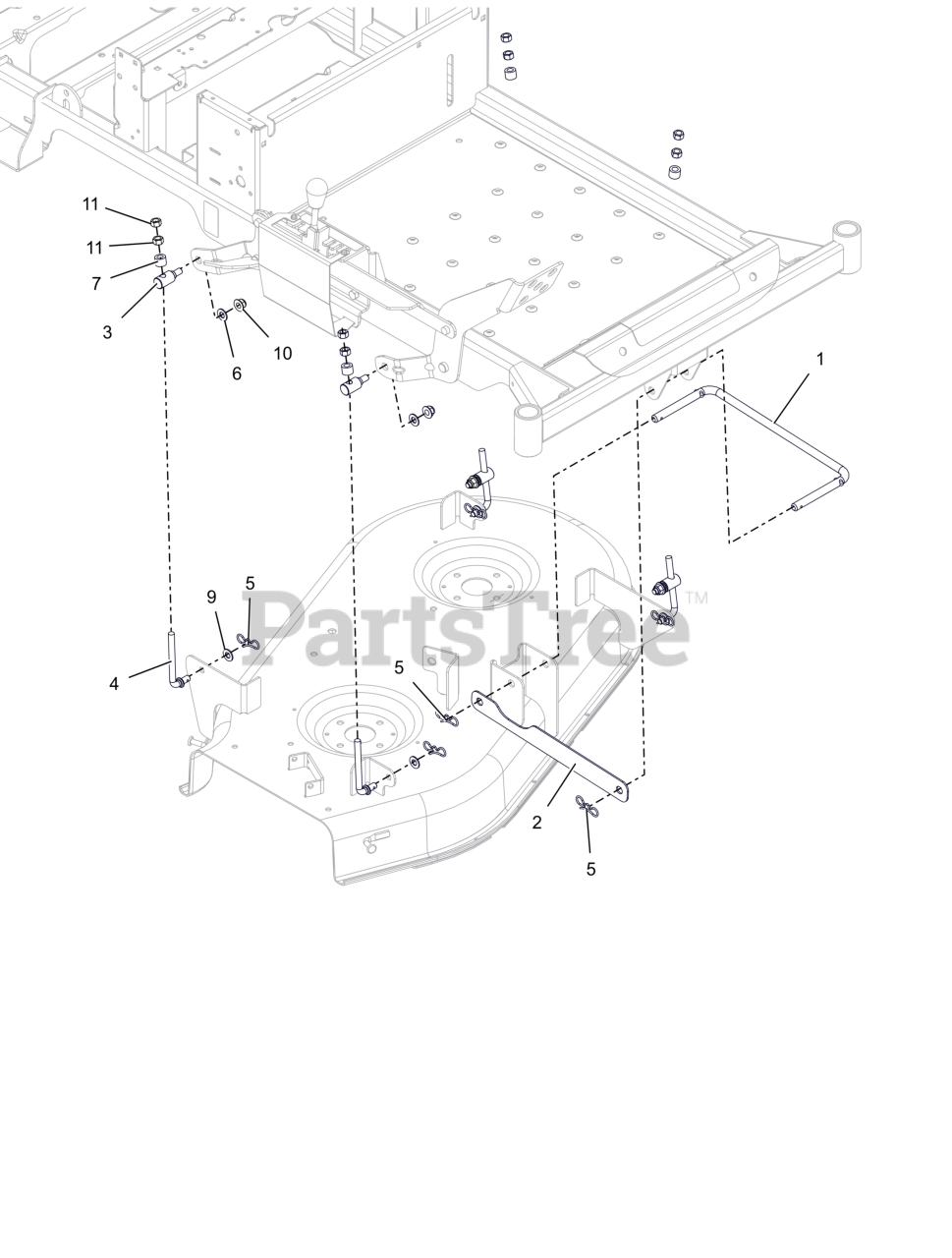

Deck Lift 34" Cont. Parts Diagram

  • Title
1

Ariens 04377600

WIREFORM, DRAG LINK

$23.99

$

In Stock, only 1 left!

0

2

Ariens 04424900

STRAP, DRAG LINK

$20.99

$

In Stock, only 1 left!

0

3

Ariens 04377800

TRUNNION, DECK ADJUSTER

$

$

Not available

4

Ariens 04377700

WIREFORM, DECK ADJUSTMENT

$17.99

$

In Stock, only 2 left!

0

5

Ariens 06700220

PIN, BOWTIE .091X1.875 ZCC

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, only 1 left!

0

9

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500917

NUT-STD .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0
