915243 - Ariens Edge 34" Zero-Turn Mower, 19hp Kohler (SN: 000101 - 001999) Steering Controls Parts Diagram

Edge 34" Zero-Turn Mower, 19hp Kohler

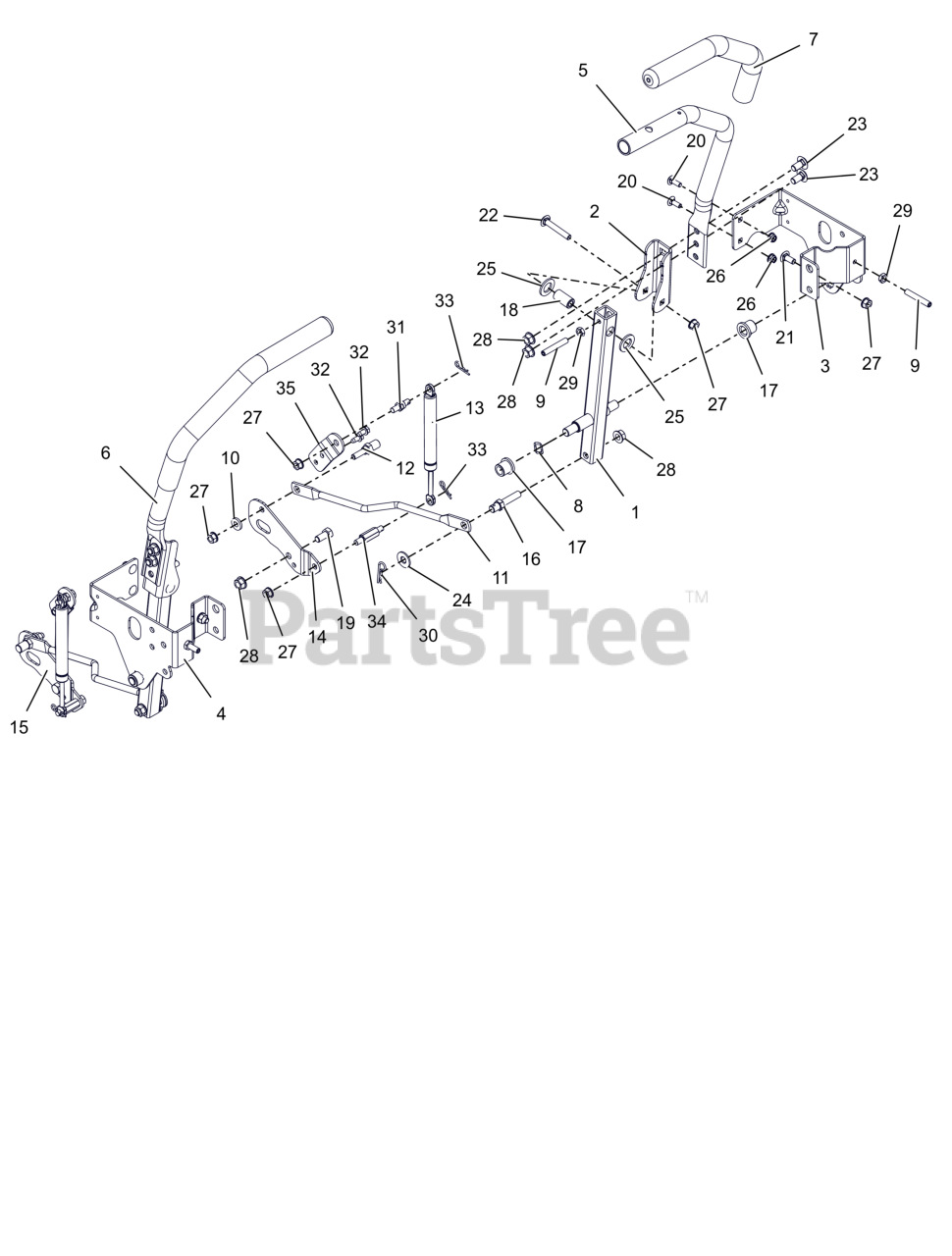

Steering Controls Parts Diagram

  • Title

1

Ariens 05286851

WLDMT, LOWER CONTROL ARM (BLACK)

$37.99

$

Usually ships in 4-12 days

0

2

Ariens 05281900

ARM, CONTROL -UPPER

$

$

Currently unavailable

3

Ariens 05288151

BRKT, SPEED ADJ/SEAT PIVOT-LH (BLACK)

$

$

Not available

4

Ariens 05288251

BRKT, SPEED ADJ/SEAT PIVOT-RH (BLACK)

$

$

Not available

5

Ariens 09161651

WLDMT, CONTROL HANDLE -LH (BLACK)

$42.99

$

In Stock, only 1 left!

0

6

Ariens 09161751

WLDMT, CONTROL HANDLE - RH (BLACK)

$

$

Not available

7

Ariens 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 1 left!

0

8

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06100301

SCR-SET, .312-18X2.000 SS

$

$

Not available

10

Ariens 04147200

BSHG-FLG .316X.430X.225X.750

$

$

Not available

11

Ariens 05282400

LINKAGE, STEERING

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 05282500

STUD, STEERING LINK-REAR

$

$

Not available

13

Ariens 05160400

DAMPER, STRAIGHT MOUNT

$36.99

$

In Stock, only 1 left!

0

14

Ariens 03759351

PLATE, DAMPER RH

$13.99

$

Usually ships in 4-12 days

0

15

Ariens 03766000

PLATE, DAMPER

$

$

Currently unavailable

16

Ariens 05288400

STUD, STEERING LINK -FRONT

$

$

Not available

17

Ariens 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

18

Ariens 05501411

BSHG, -SLV .342 X .627 X 1.171

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

21

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

23

Ariens 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

24

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06401130

WSHR, FRICTION

$4.99

$

In Stock, only 3 left!

0

26

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

27

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06700219

PIN, HAIR #203 .09X1.50 ZCC

$2.99

$

In Stock, Qty 9

0

31

Ariens 05171400

COUPLER, DAMPER MOUNT

$6.99

$

In Stock, only 2 left!

0

32

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

34

Ariens 09157100

COUPLER, DAMPER MOUNT (LOWER)

$

$

Not available

35

Ariens 09155951

PLATE, DAMPER TOP MOUNTING (BLACK)

$

$

Not available
