915242 (ZT XL 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR, CARB (SN: 035000 - 039999) Rear Tires and Transaxles 60" Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR, CARB

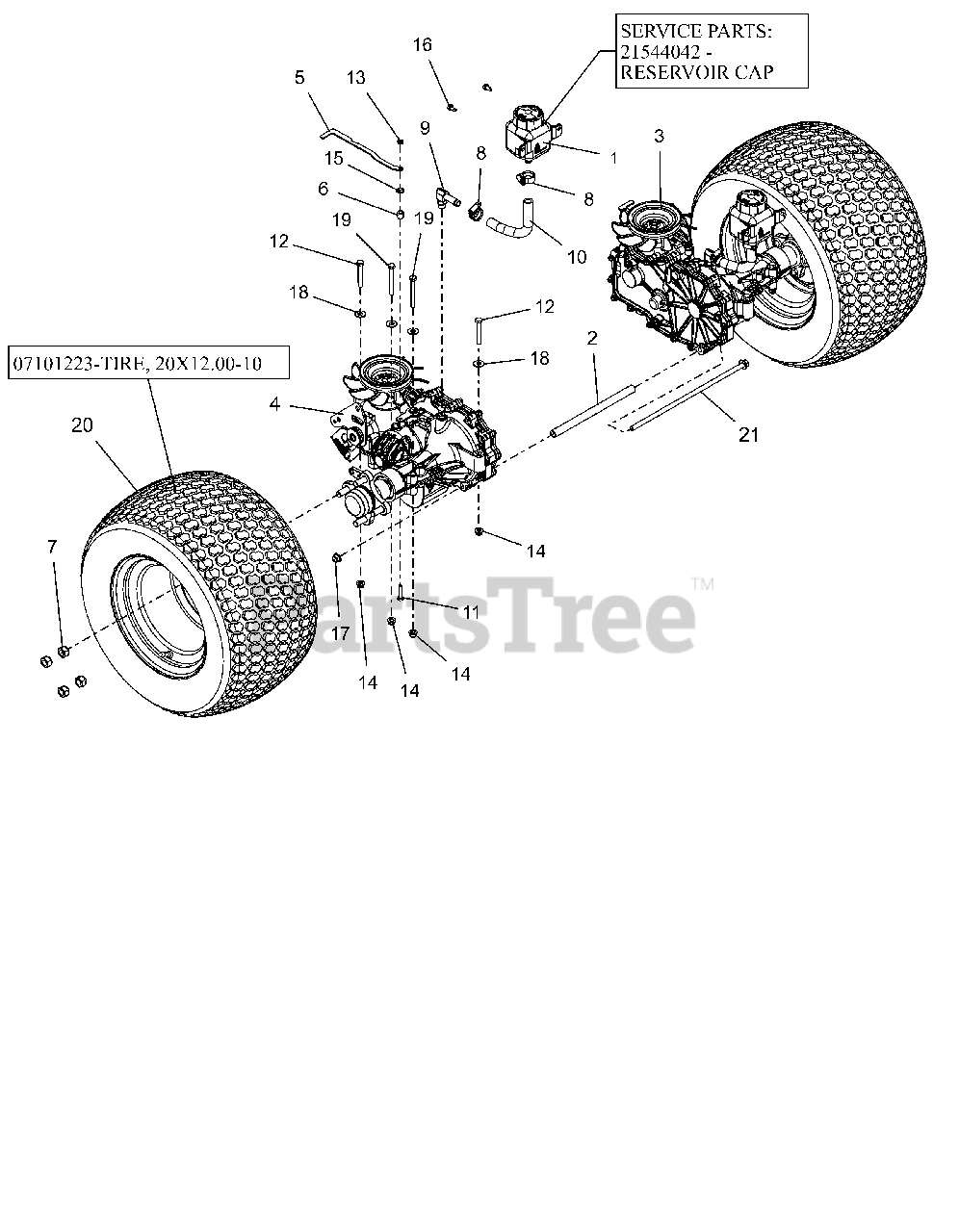

Rear Tires and Transaxles 60" Parts Diagram

  • Title
1

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 05162551

SPCR, TRANSAXLE .406 ID X .630 OD X 9.27 (BLACK)

$18.99

$

In Stock, only 1 left!

0

3

Gravely 04879900

TRANSAXLE,ZT2800 LH
(Superseded to 09160600)

$1427.99

$

Usually ships in 4-12 days

0

4

Gravely 04880100

TRANSAXLE,ZT2800 RH
(Superseded to 09160700)

$1428.99

$

Usually ships in 4-12 days

0

5

Gravely 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Gravely 07001735

HOSE, FORMED LH XL

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

12

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 07101213

ASM, WHL/TIRE 20X12.00-10
(Superseded to 07101313)

$205.99

$

Usually ships in 4-12 days

0

20

Gravely 07101223

TIRE, 20X12.00-10 (OTR)

Note: SERVICE PART

$227.99

$

Usually ships in 4-12 days

0

21

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$13.99

$

In Stock, only 1 left!

0
