915242 (ZT XL 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR, CARB (SN: 035000 - 039999) Deck, Belt, Blades and Spindles - 60" Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR, CARB

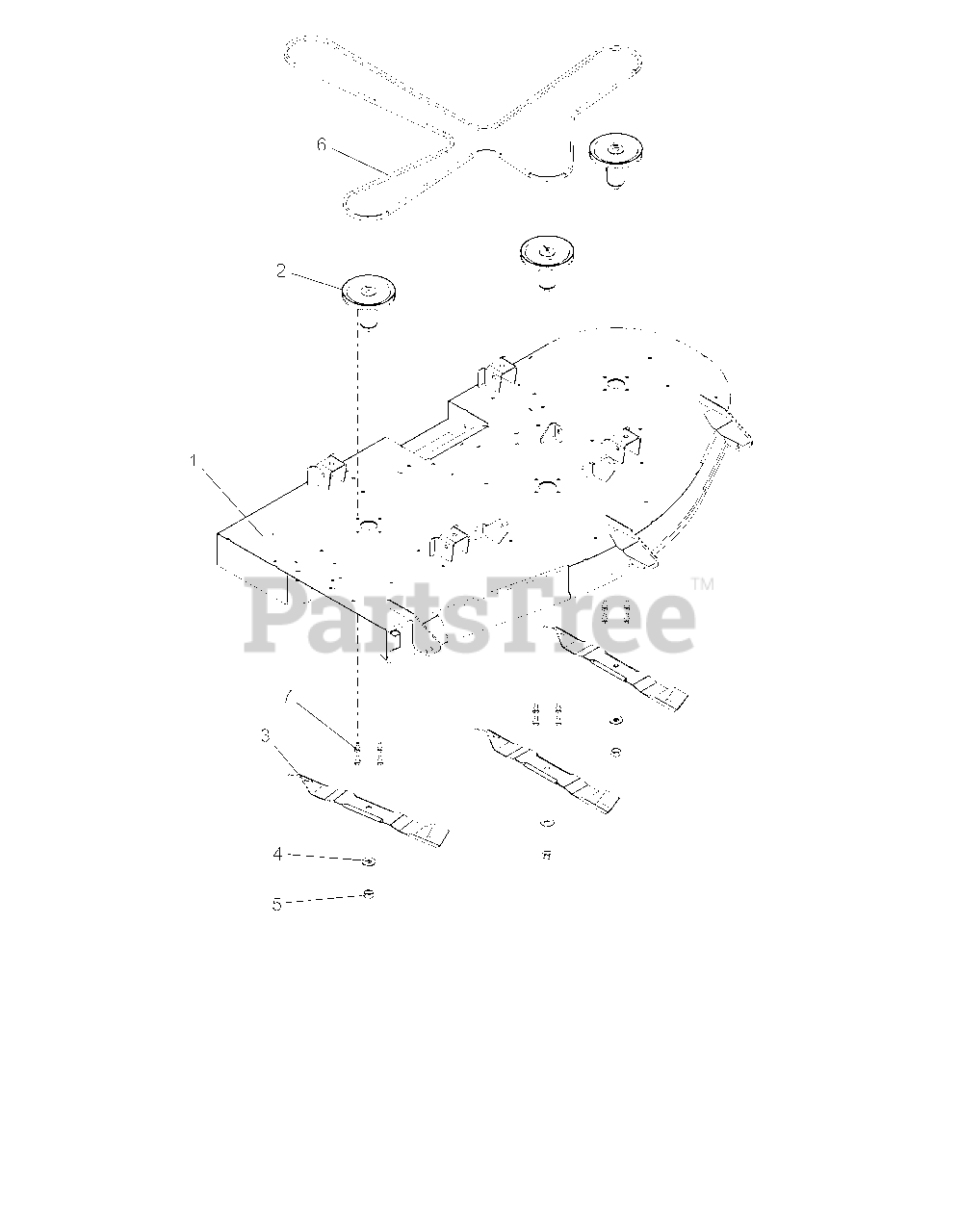

Deck, Belt, Blades and Spindles - 60" Parts Diagram

  • Title
1

Gravely 51532700

KIT, 60" GRAVELY DECK W/DECALS

$814.99

$

Usually ships in 4-12 days

0

2

Gravely 51530700

KIT, DECK SPINDLE ASM-60
(Superseded to 51537300)

$219.99

$

In Stock, only 2 left!

0

3

Gravely 04965000

BLADE, 21" 35 DEG

$28.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

5

Gravely 06500920

NUT-STD .625-18 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07200804

BELT, HA

$116.99

$

In Stock, only 2 left!

0

7

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
