915241 - Ariens Ikon-XL 60" Zero-Turn Mower, Kawasaki FR, CARB (SN: 030000 - 034999) Electrical Parts Diagram

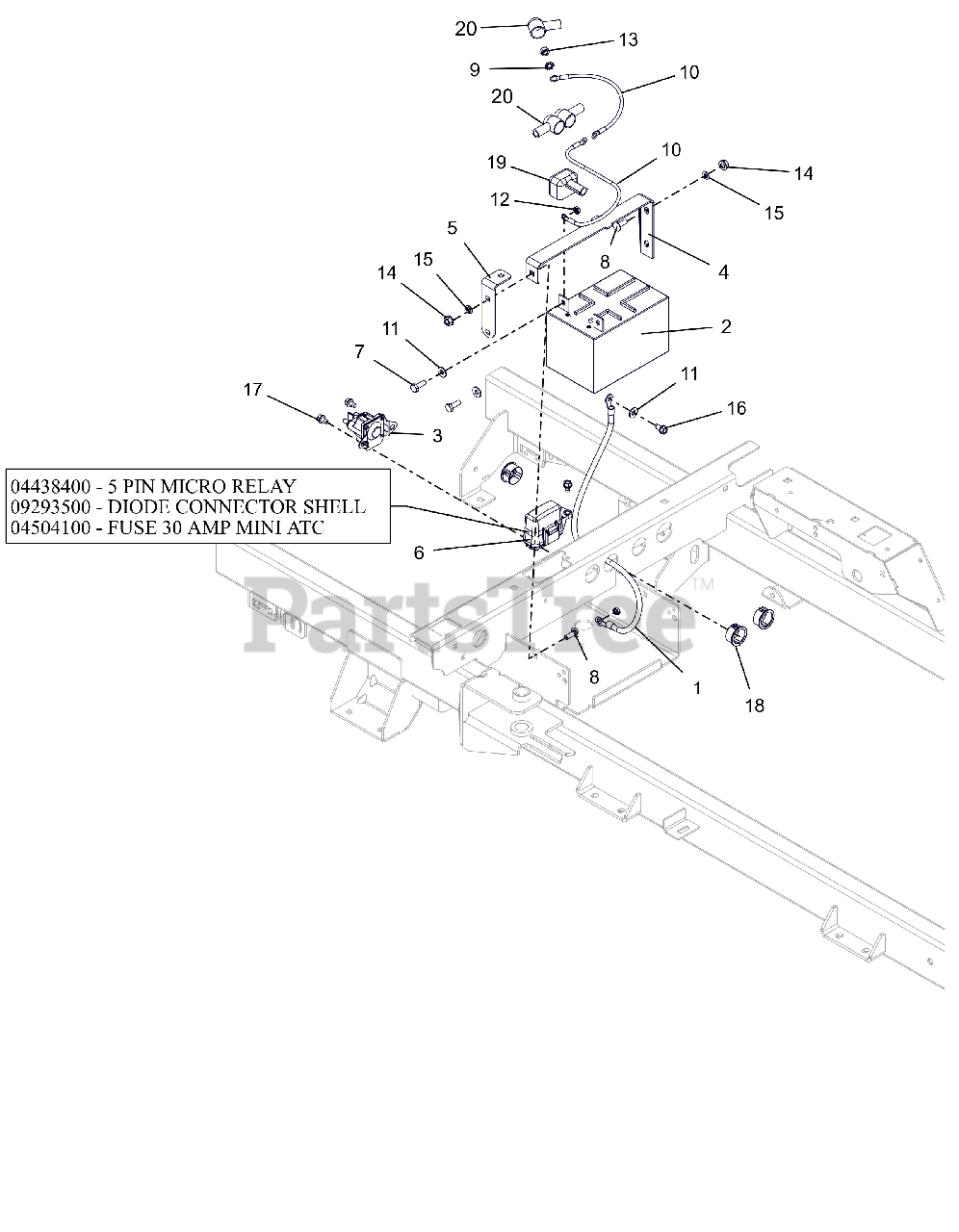

Ikon-XL 60" Zero-Turn Mower, Kawasaki FR, CARB

Electrical Parts Diagram

  • Title

1

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

2

Ariens 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

3

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 2 left!

0

4

Ariens 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 04833651

BRKT, BATTERY HOLD DOWN

$

$

Not available

6

Ariens 04974400

HARNESS, WIRE-4POS KEY IKON/ZT
(Superseded to 05295600)

$102.99

$

In Stock, only 1 left!

0

6

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: SERVICE PART

$19.99

$

In Stock, only 1 left!

0

6

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: SERVICE PART

$11.99

$

In Stock, only 3 left!

0

6

Ariens 04504100

FUSE,30 AMP MINI-ATC

Note: SERVICE PART

$

$

Not available

7

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

9

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 1 left!

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500704

NUT, 10-24 KEPS

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

20

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0
