915240 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR, CARB (SN: 035000 - 039999) Control Panel - Kawasaki Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR, CARB

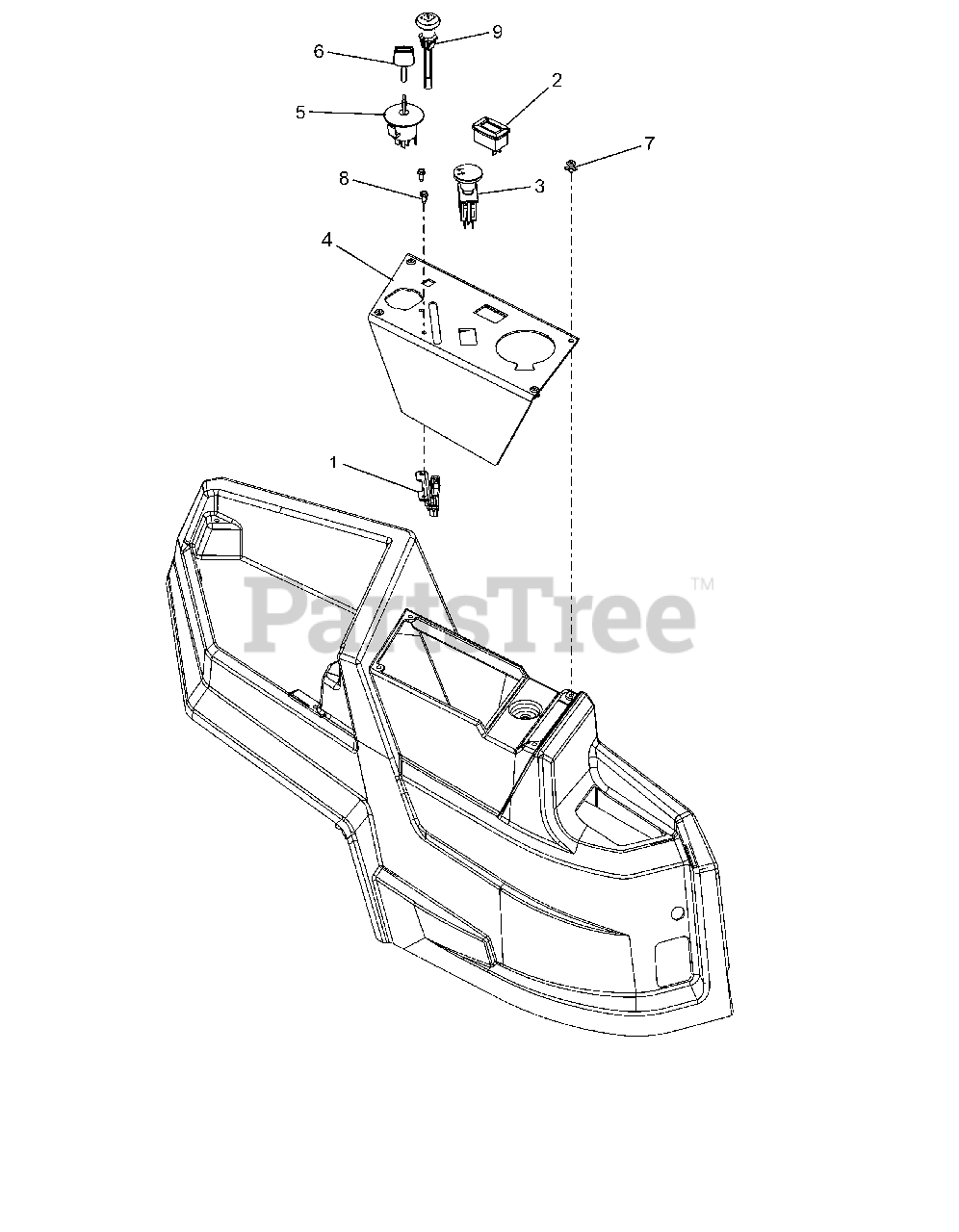

Control Panel - Kawasaki Parts Diagram

  • Title
1

Gravely 06900620

CABLE - THROTTLE CONTROL

$45.99

$

In Stock, only 1 left!

0

2

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

3

Gravely 04399600

SWITCH, CLUTCH (YELLOW)

$22.99

$

In Stock, only 1 left!

0

4

Gravely 04766953

PANEL, CONTROL

$37.99

$

In Stock, only 1 left!

0

5

Gravely 04974300

KEYSWITCH-IGNITION 4 POS

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 04986400

KEY, IGNITION

$7.99

$

In Stock, only 2 left!

0

7

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

9

Gravely 06900621

CABLE - CHOKE, SNAP-IN

$28.99

$

In Stock, only 1 left!

0
