915239 - Ariens Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin, CARB (SN: 030000 - 034999) Fenders Parts Diagram

Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin, CARB

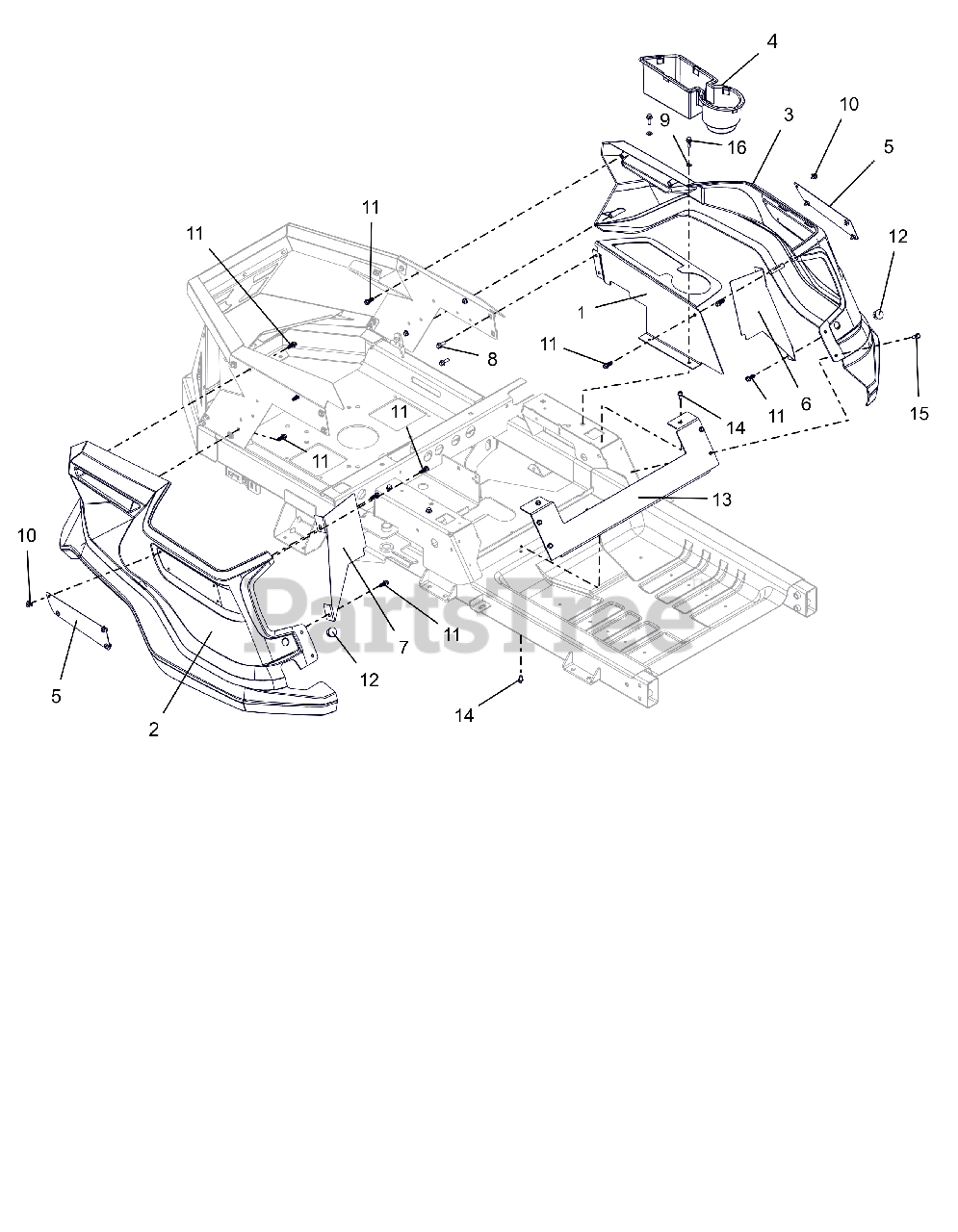

Fenders Parts Diagram

  • Title

1

Ariens 05080959

PANEL, LEFT SIDE FENDER MOUNT

$45.99

$

In Stock, only 1 left!

0

2

Ariens 05089900

FENDER, RH IKON

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 05090000

FENDER, LH IKON

$48.99

$

In Stock, Qty 13

0

4

Ariens 05091800

INSERT, CUP/STORAGE HOLDER

$17.99

$

In Stock, Qty 6

0

5

Ariens 05097359

PLATE, ARIENS NAME

$9.49

$

In Stock, only 2 left!

0

6

Ariens 05110900

PLATE, LH BLOCKER

$

$

Not available

7

Ariens 05115751

PLATE, RH BLOCKER

$

$

Not available

8

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

9

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07400119

SCR-.312X.75 #14H H/W/H H/L CZ

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07500402

PLUG, HOLE .75 (BLACK)

$

$

Not available

13

Ariens 04772359

PLATE, SEAT KICK

$

$

Not available

14

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

16

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available
