915236 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR, CARB (SN: 040000 - 079999) Seat Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR, CARB

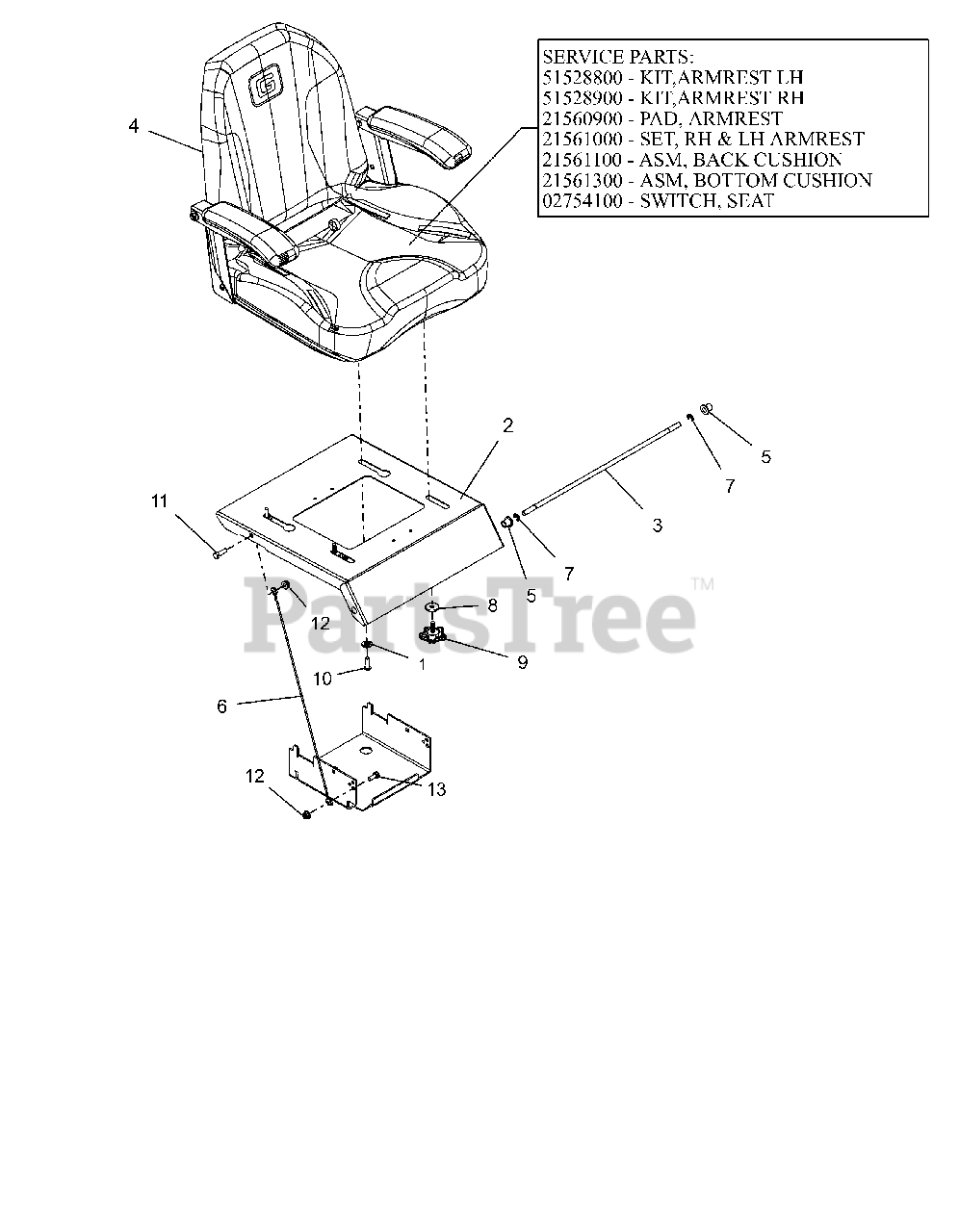

Seat Parts Diagram

  • Title

1

Gravely 05501328

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 2 left!

0

2

Gravely 05160853

PLATE, SEAT (FASTENER SLIDE)
(Superseded to 05246953)

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$

$

Not available

4

Gravely 04888500

SEAT, ZTX 2017
(Superseded to 05176200)

$905.99

$

Usually ships in 4-12 days

0

4

Gravely 51528800

KIT, ARMREST LH

$136.99

$

Usually ships in 4-12 days

0

4

Gravely 51528900

KIT, ARMREST RH

$136.99

$

Usually ships in 4-12 days

0

4

Gravely 21560900

PAD, ARMREST (HARD)

$

$

Not available

4

Gravely 21561000

SET,RH & LH ARMREST -HARD

$114.99

$

Usually ships in 4-12 days

0

4

Gravely 21561100

ASM,BACK CUSHION-GRAVELY X

$193.99

$

Usually ships in 4-12 days

0

4

Gravely 21561300

ASM,BOTTOM CUSHION-GRAVELY X

$232.99

$

Usually ships in 4-12 days

0

4

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

5

Gravely 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

6

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0

7

Gravely 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 3 left!

0

9

Gravely 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0
