915236 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR, CARB (SN: 040000 - 079999) Deck, Belt, Blades and Spindles - 52" Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR, CARB

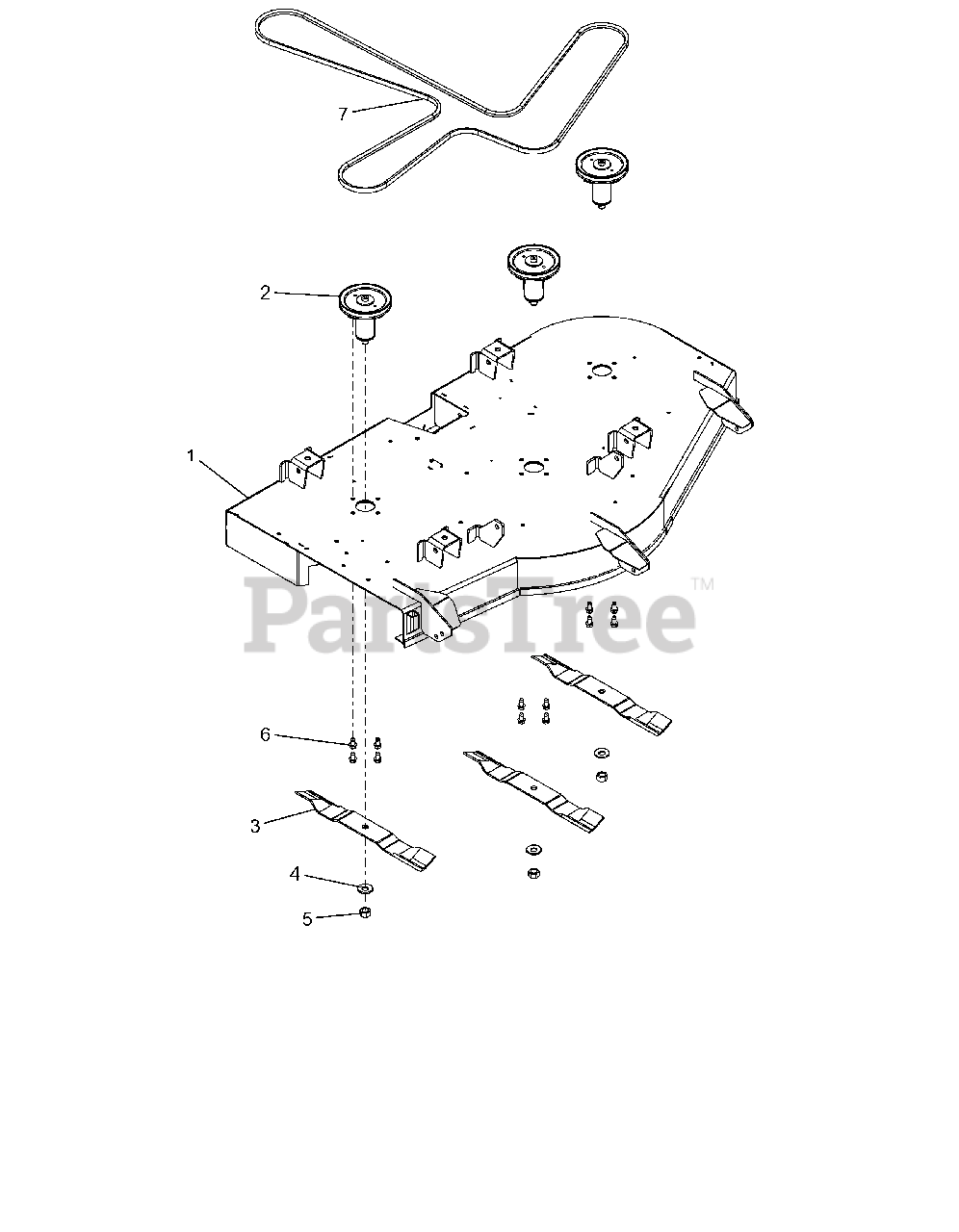

Deck, Belt, Blades and Spindles - 52" Parts Diagram

  • Title
1

Gravely 51532400

KIT, 52" GRAVELY DECK W/DECALS

$775.99

$

Usually ships in 4-12 days

0

2

Gravely 51528000

KIT, DECK SPINDLE ASM-52
(Superseded to 51537200)

$183.99

$

In Stock, Qty 20+

0

3

Gravely 04771200

BLADE, 18" - 30 DEG .5 OFFSET

$26.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

5

Gravely 06500920

NUT-STD .625-18 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07200023

V-BELT, HA-WRAPPED

$86.99

$

In Stock, Qty 20+

0
