915234 (ZT 50) - Gravely 50" Zero-Turn Mower, 23hp Kohler Twin, CARB (SN: 000101 & Above) Fuel Tank Parts Diagram

50" Zero-Turn Mower, 23hp Kohler Twin, CARB

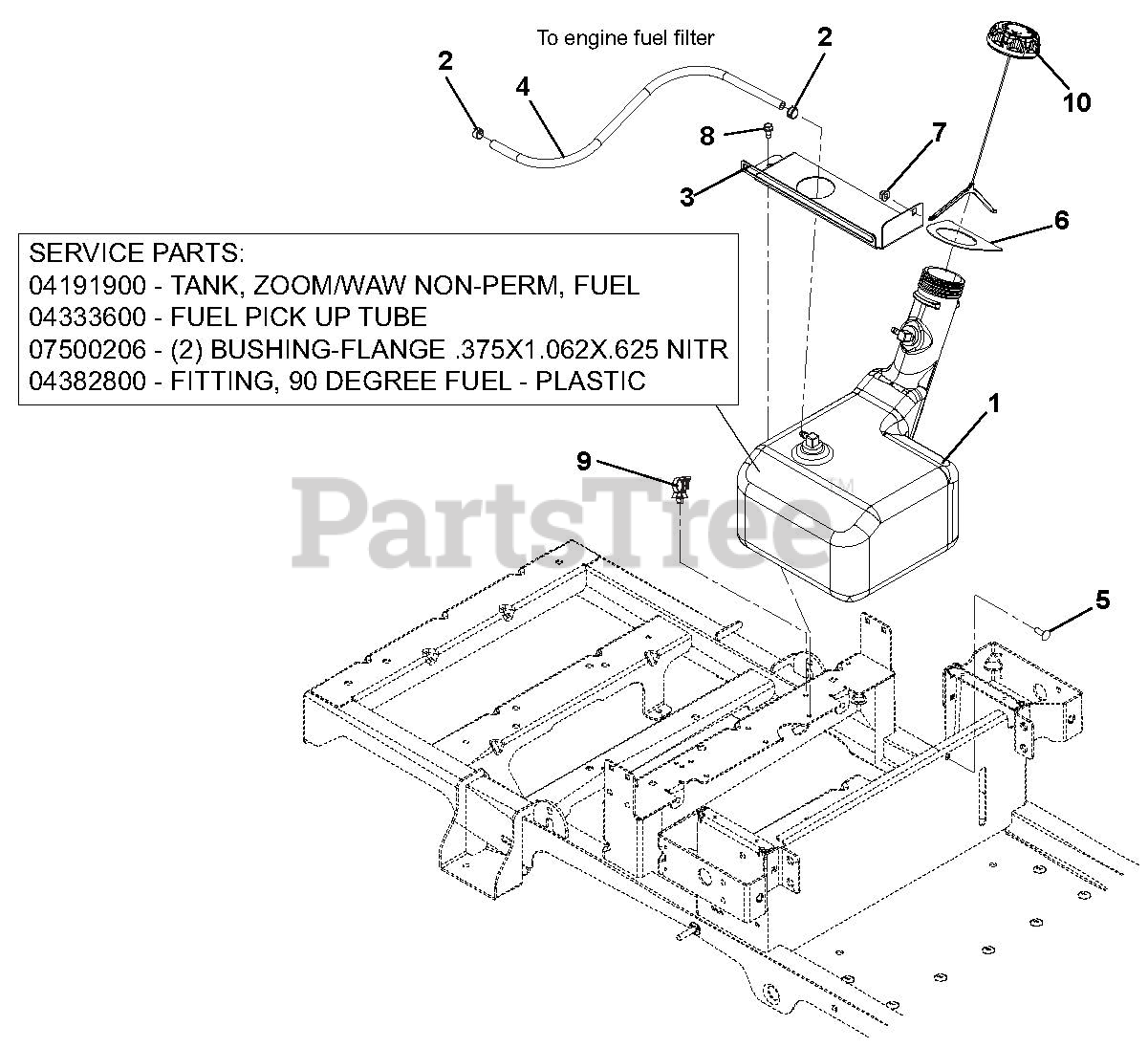

Fuel Tank Parts Diagram

  • Title

1

Gravely 04422900

FUEL TANK SUB ASSY ZT/ZOOM/WAW
(Superseded to 05244700)

$162.99

$

Usually ships in 4-12 days

0

1

Gravely 04191900

TANK, ZOOM/WAW NON-PERM. FUEL
(Superseded to 05244700)

Note: FUEL TANK SERVICE PART

$162.99

$

Usually ships in 4-12 days

0

1

Gravely 04333600

FUEL PICK UP TUBE

Note: FUEL TANK SERVICE PART

$15.99

$

In Stock, Qty 13

0

1

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: FUEL TANK SERVICE PART

$2.49

$

In Stock, Qty 20+

0

1

Gravely 04382800

FITTING, 90 DEG FUEL-PLASTIC

Note: FUEL TANK SERVICE PART

$5.99

$

In Stock, only 1 left!

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03771451

BRKT, TANK STRAP

$

$

Not available

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03795700

SEAL-TANK NECK

$3.99

$

In Stock, Qty 5

0

7

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

8

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0
