915234 (ZT 50) - Gravely 50" Zero-Turn Mower, 23hp Kohler Twin, CARB (SN: 000101 & Above) Belt Covers And Blades - 42" And 50" Parts Diagram

50" Zero-Turn Mower, 23hp Kohler Twin, CARB

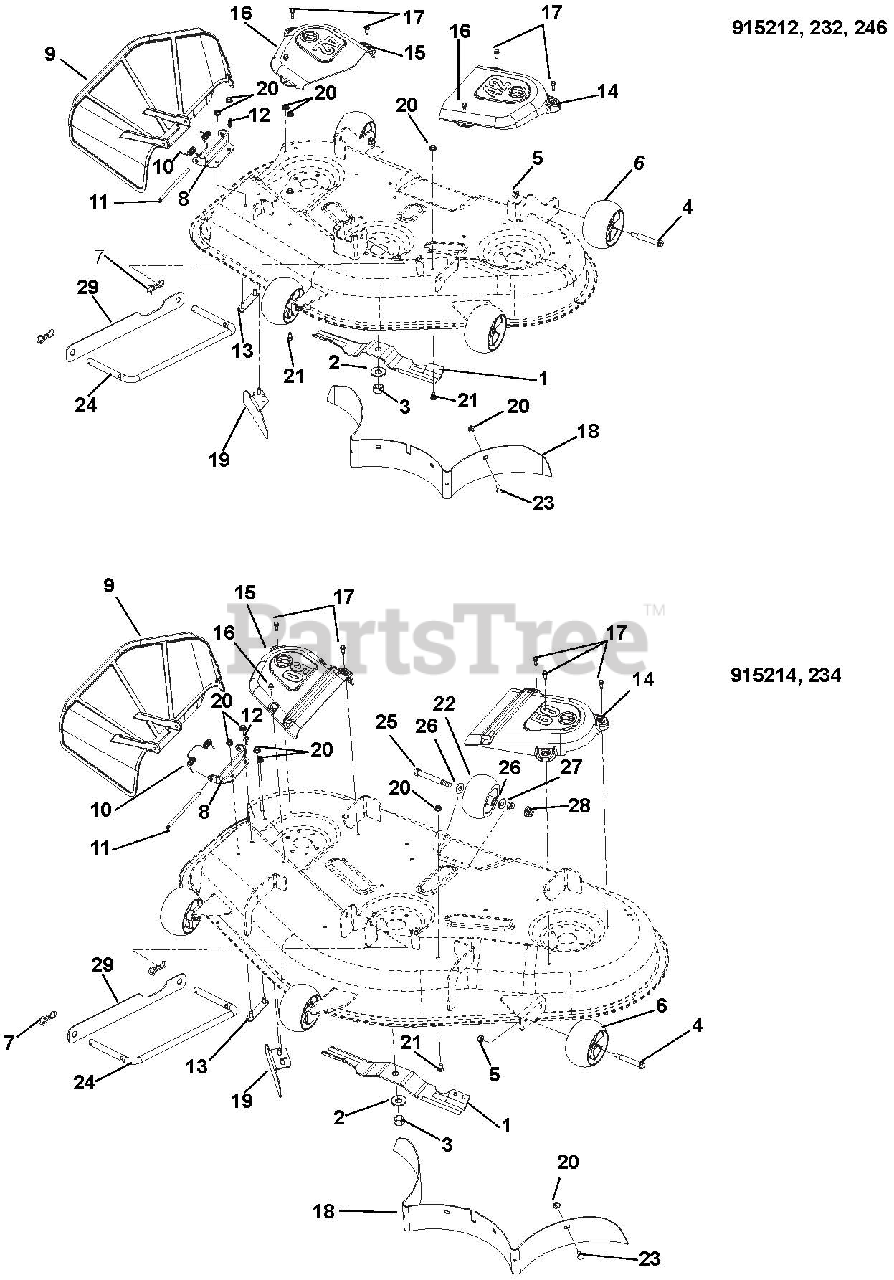

Belt Covers And Blades - 42" And 50" Parts Diagram

  • Title
1

Gravely 04265400

BLADE, MOWER 14.83 (.188 THK)

Note: (915212, 232, 246)

$25.99

$

In Stock, Qty 20+

0

1

Gravely 03971900

BLADE, MOWER 17.35

Note: (915214, 234)

$23.99

$

In Stock, Qty 20+

0

2

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

3

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03905600

ANTI-SCALP WHEEL - 5X OS

Note: (915212, 232, 246)

$15.99

$

In Stock, Qty 20+

0

6

Gravely 03905600

ANTI-SCALP WHEEL - 5X OS

Note: (915214, 234)

$15.99

$

In Stock, Qty 20+

0

7

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04073053

BRKT-DISCHARGE CHUTE MOUNT 42"

Note: (915212, 232, 246)

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 04443153

BRKT, CHUTE MOUNT - 50"

Note: (915214, 234)

$43.99

$

In Stock, only 1 left!

0

9

Gravely 04375900

CHUTE, DISCHARGE - MOLDED

$86.99

$

In Stock, only 1 left!

0

10

Gravely 08300515

SPRING-TORSION

$34.99

$

In Stock, only 1 left!

0

11

Gravely 00475800

PIN, 5/16 X 5.80"

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03977400

WMT-DISCHARGE CHUTE MT. STRAP

$

$

Not available

14

Gravely 03902200

BELT COVER - LH 42"

Note: (915212, 232, 246)

$28.99

$

In Stock, Qty 20+

0

14

Gravely 03901900

BELT COVER - LH 50"

Note: (915214, 234)

$15.99

$

In Stock, only 1 left!

0

15

Gravely 03902100

BELT COVER - RH 42"

Note: (915212, 232, 246)

$27.99

$

Usually ships in 4-12 days

0

15

Gravely 03901800

BELT COVER - RH 50"

Note: (915214, 234)

$28.99

$

In Stock, only 1 left!

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915212, 232, 246)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915214, 234)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

Note: (915212, 232, 246)

$1.49

$

In Stock, Qty 6

0

17

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

Note: (915214, 234)

$1.49

$

In Stock, Qty 6

0

18

Gravely 03957853

BAFFLE, REAR (42)

Note: (915212, 232, 246)

$60.99

$

Usually ships in 4-12 days

0

18

Gravely 04069053

BAFFLE-50" STAMPED DECK REAR

Note: (915214, 234)

$

$

Not available

19

Gravely 04395453

WLDMT-BAFFLE, DISCHARGE 42"

Note: (915212, 232, 246)

$71.99

$

Usually ships in 4-12 days

0

19

Gravely 03955953

BAFFLE, DEFLECTOR (50)

Note: (915214, 234)

$43.99

$

Usually ships in 4-12 days

0

20

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

22

Gravely 02745400

ROLLER

Note: (915214, 234)

$15.99

$

In Stock, Qty 20+

0

23

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 04377667

WIREFORM, DRAG LINK
(Superseded to 04377600)

$23.99

$

In Stock, only 1 left!

0

25

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (915214, 234)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

Note: (915214, 234)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (915214, 234)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 04424951

STRAP, DRAG LINK
(Superseded to 04424967)

$20.99

$

In Stock, only 1 left!

0
