915232 (ZT 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler Twin, CARB (SN: 000101 & Above) Frame, Hood, Fenders, Caster And Tires - CARB Parts Diagram

42" Zero-Turn Mower, 22hp Kohler Twin, CARB

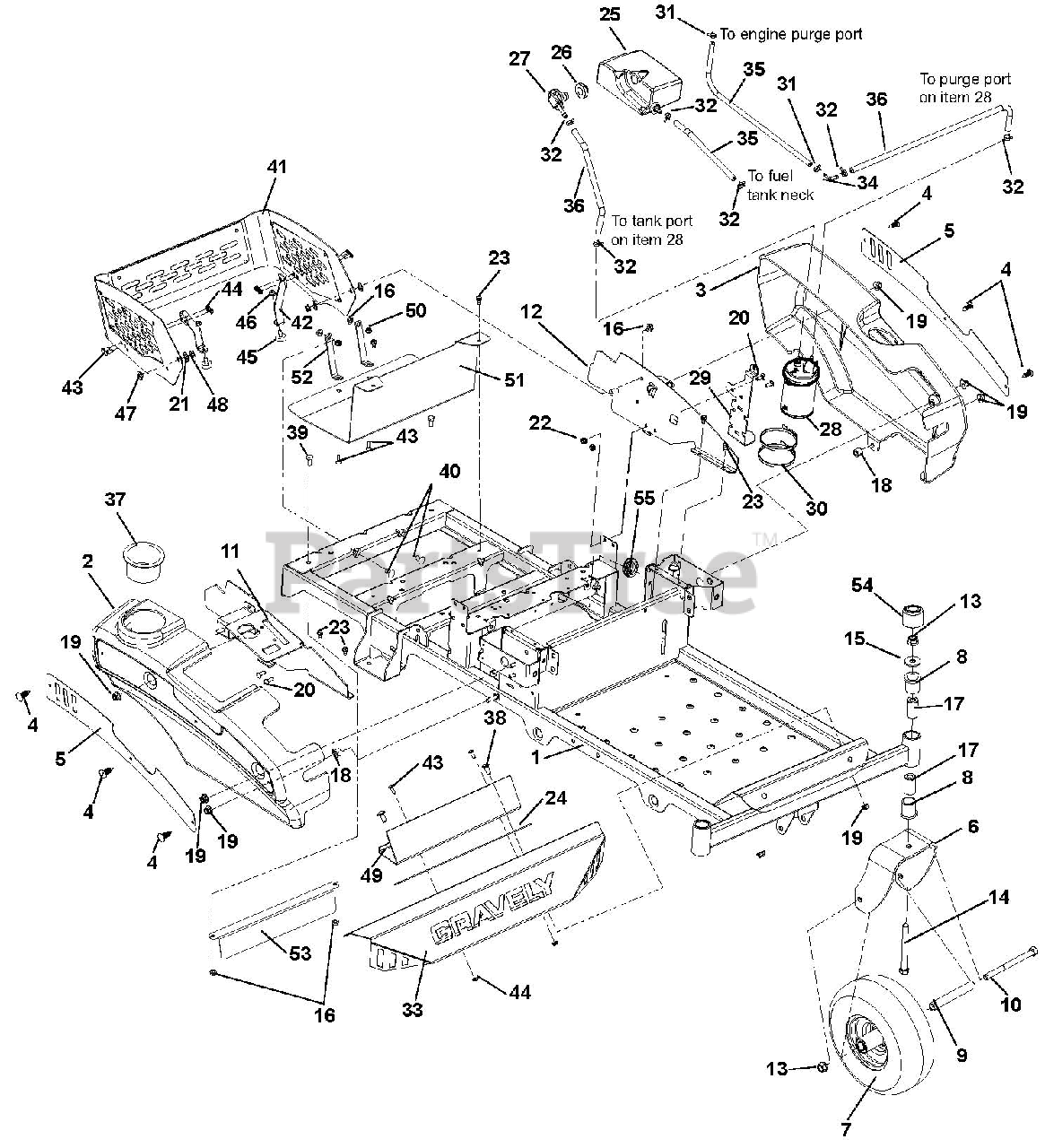

Frame, Hood, Fenders, Caster And Tires - CARB Parts Diagram

  • Title

1

Gravely 51525900

KIT, ZOOM/ZT FRAME W/ DECALS

$685.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

FENDER, RH

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

5

Gravely 04717553

PLATE, FENDER ZT

$22.99

$

In Stock, only 3 left!

0

6

Gravely 03368553

WMT, CASTER FORK

$72.99

$

In Stock, only 1 left!

0

7

Gravely 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

7

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 07108600

TUBE 11 X4.0-5 TR87

Note: Optional Component Service Part

$11.99

$

In Stock, only 2 left!

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Gravely 04821253

WLDMT, RH FENDER MOUNT

$82.99

$

Usually ships in 4-12 days

0

12

Gravely 04717253

WLDMT, LH FENDER MOUNT

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, only 4 left!

0

18

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

19

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03833800

GRIP, ADHESIVE (1" X 16" BLK)

$

$

Not available

25

Gravely 04423000

EXPANSION TANK SUB ASSY
(Superseded to 05244800)

$40.99

$

Usually ships in 4-12 days

0

26

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

27

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

28

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: USE 7"

$1.49

$

In Stock, Qty 20+

0

29

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: USE 10"

$1.49

$

In Stock, Qty 20+

0

30

Gravely 04082500

CARBON CANISTER, 300CC

$62.99

$

Usually ships in 4-12 days

0

31

Gravely 04086551

BRKT-MOUNT, CANISTER BBZ

$18.99

$

Usually ships in 4-12 days

0

32

Gravely 04102900

P-PLASTIC TIE STRAP LARGE

$

$

Not available

33

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

34

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

35

Gravely 04719653

WLDMT, 48" DECK 2014 PROSTANCE
(Superseded to 50569000)

$

$

Not available

36

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (915208)

$0.99

$

Usually ships in 4-12 days

0

37

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (915232) USE 11"

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (915208) USE 27"

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (915232) USE 30.5"

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04196270

CUPHOLDER

$

$

Currently unavailable

40

Gravely 06218900

BLT-RDHDSQNK .50-13X7.00

$

$

Not available

41

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

43

Gravely 51526600

ASSEMBLY, ENGINE WRAP ZT

$175.99

$

Usually ships in 4-12 days

0

44

Gravely 04719351

BRACKET, ENGINE WRAP FOOT

$

$

Currently unavailable

45

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

48

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 04717151

PLATE, BACK FOOT-PLATE

$

$

Not available

52

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

$54.99

$

Usually ships in 4-12 days

0

54

Gravely 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

$14.99

$

Usually ships in 4-12 days

0

55

Gravely 04739551

GUARD, HOT SURFACE (ZOOM/ZT)

$

$

Not available

56

Gravely 07500233

CAP, DUST

$9.49

$

In Stock, only 2 left!

0

57

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0
