915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 075000 - 079999) Parking Brake Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

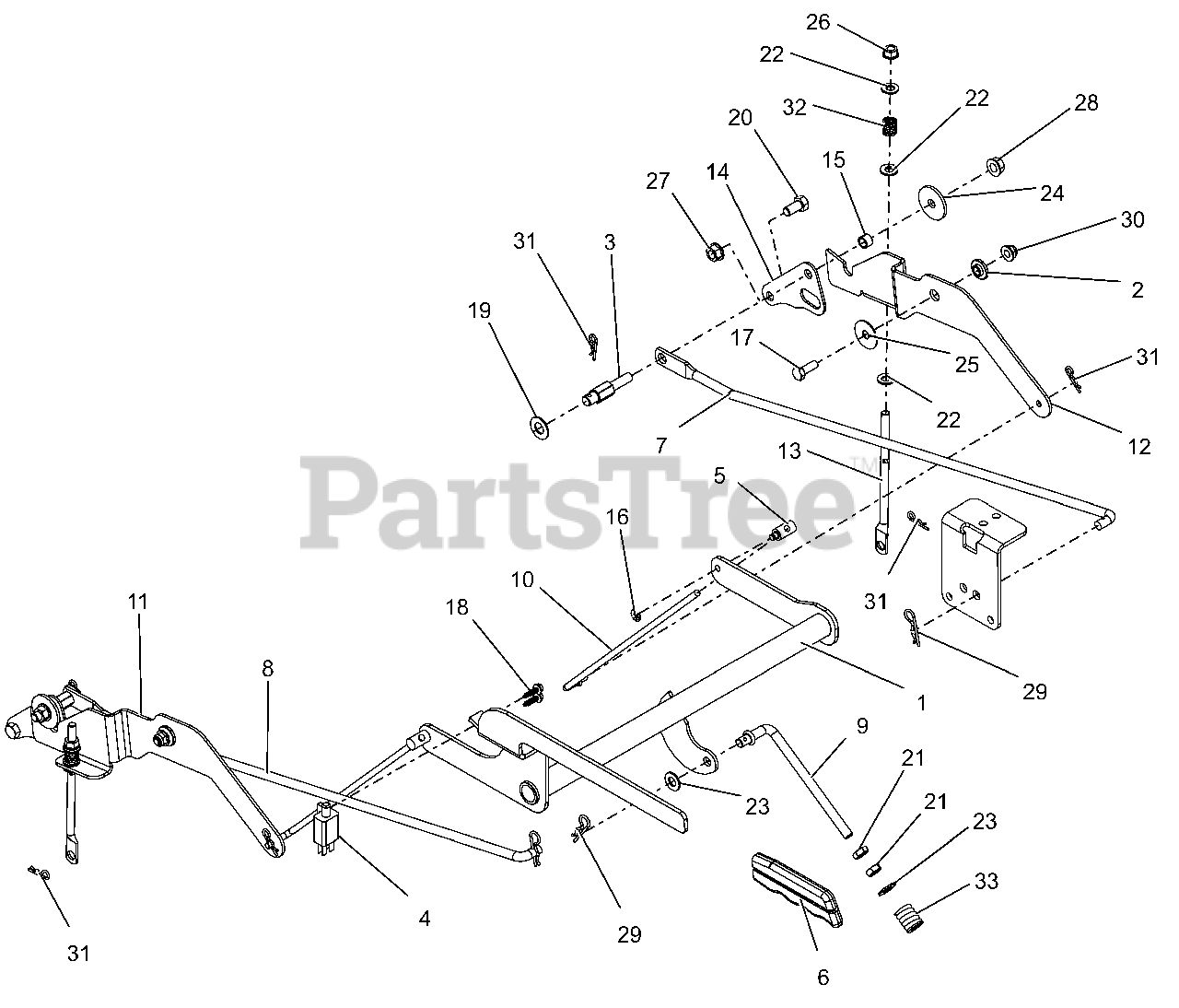

Parking Brake Parts Diagram

  • Title

1

Gravely 04787851

WLDMT, BRAKE LEVER

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

3

Gravely 05245800

POST, STEERING LINK MOUNTING

$

$

Not available

4

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

5

Gravely 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

6

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05245700

ROD, STEERING LINKAGE LH

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 05245600

LINKAGE, STEERING - RH

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 04787900

LINK, OVER CENTER, PARKING BRK

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 04788000

ROD, PARK BRAKE

$

$

Not available

11

Gravely 04788151

INTERLOCK, RH BRAKE LINK
(Superseded to 04788100)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 04790451

INTERLOCK, LH BRAKE LINK
(Superseded to 04790400)

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 04790600

LINK, TRANSAXLE BRAKE

$12.99

$

In Stock, Qty 20+

0

14

Gravely 04799351

PLATE, TRANSAXLE ADAPTOR

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 05501235

SPCR, SLV .385X.500X.350

$1.49

$

In Stock, Qty 11

0

16

Gravely 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

18

Gravely 06100232

SCR, PLASTITE-HWH 0.2 X 0.75 ZC120

$

$

Not available

19

Gravely 06401112

WSHR, FLT .505X1.00X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 10

0

25

Gravely 06401105

WSHR, FLT .347X1.254X.048 ZCC

$2.49

$

In Stock, only 2 left!

0

26

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06700219

PIN, HAIR .09 X 1.50 ZCC

$2.99

$

In Stock, Qty 9

0

30

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

32

Gravely 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

33

Gravely 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 20+

0
