915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 - 039999) Controls Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

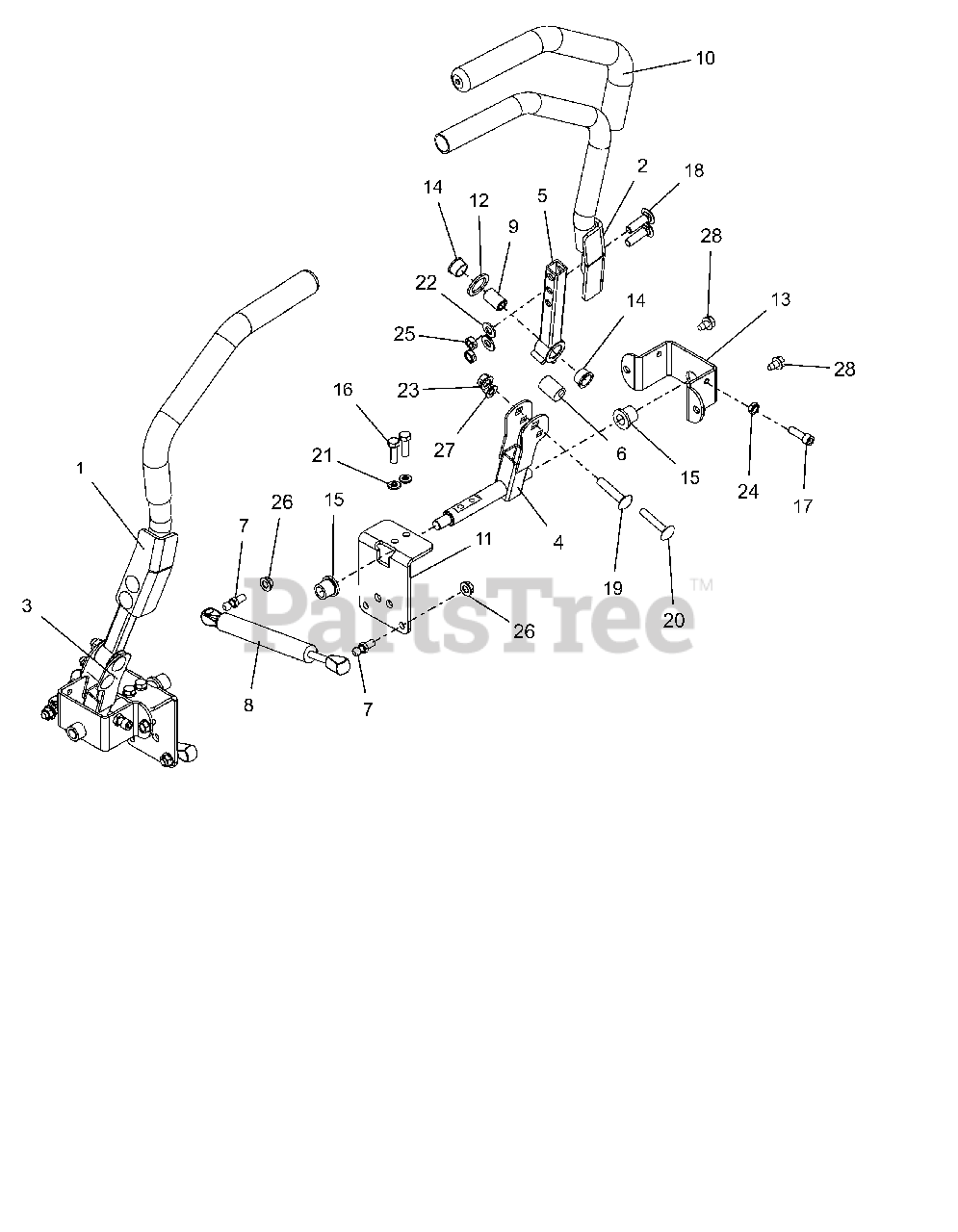

Controls Parts Diagram

  • Title

1

Gravely 04796051

WLDMT, STEERING HANDLE RH

$64.99

$

In Stock, only 1 left!

0

2

Gravely 04796151

WLDMT, STEERING HANDLE LH

$51.99

$

In Stock, only 1 left!

0

3

Gravely 04959051

WLDMT,STEERING ARM LOWER RIGHT

$127.99

$

Usually ships in 4-12 days

0

4

Gravely 04959151

WLDMT,STEERING ARM LOWER LEFT

$142.99

$

Usually ships in 4-12 days

0

5

Gravely 04959251

WLDMT, UPPER CONTROL ARM

$83.99

$

Usually ships in 4-12 days

0

6

Gravely 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

7

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

8

Gravely 03943800

DAMPER, STABILUS

$40.99

$

In Stock, only 2 left!

0

9

Gravely 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

10

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 1 left!

0

11

Gravely 04764151

BRKT, STEEERING

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 04832600

WASHER, FRICTION .875X1.25X.10

$5.99

$

In Stock, only 2 left!

0

13

Gravely 04990951

BRKT, STEERING

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 05501017

BSHG-FLG, .625X.75X.450X.875

$7.99

$

In Stock, only 3 left!

0

15

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

16

Gravely 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

17

Gravely 05901733

SCR, SKH .312-18X1.00 G8 ZC120

$2.99

$

In Stock, only 2 left!

0

18

Gravely 06200220

BLT,RHSSN-.375X1.25 G5 RIE5230
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06200221

BLT,RHSSN-.375X1.75 G5 RIE5230

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 06200222

BLT,RHSSN-.312X1.75 G5 RIE5230

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
