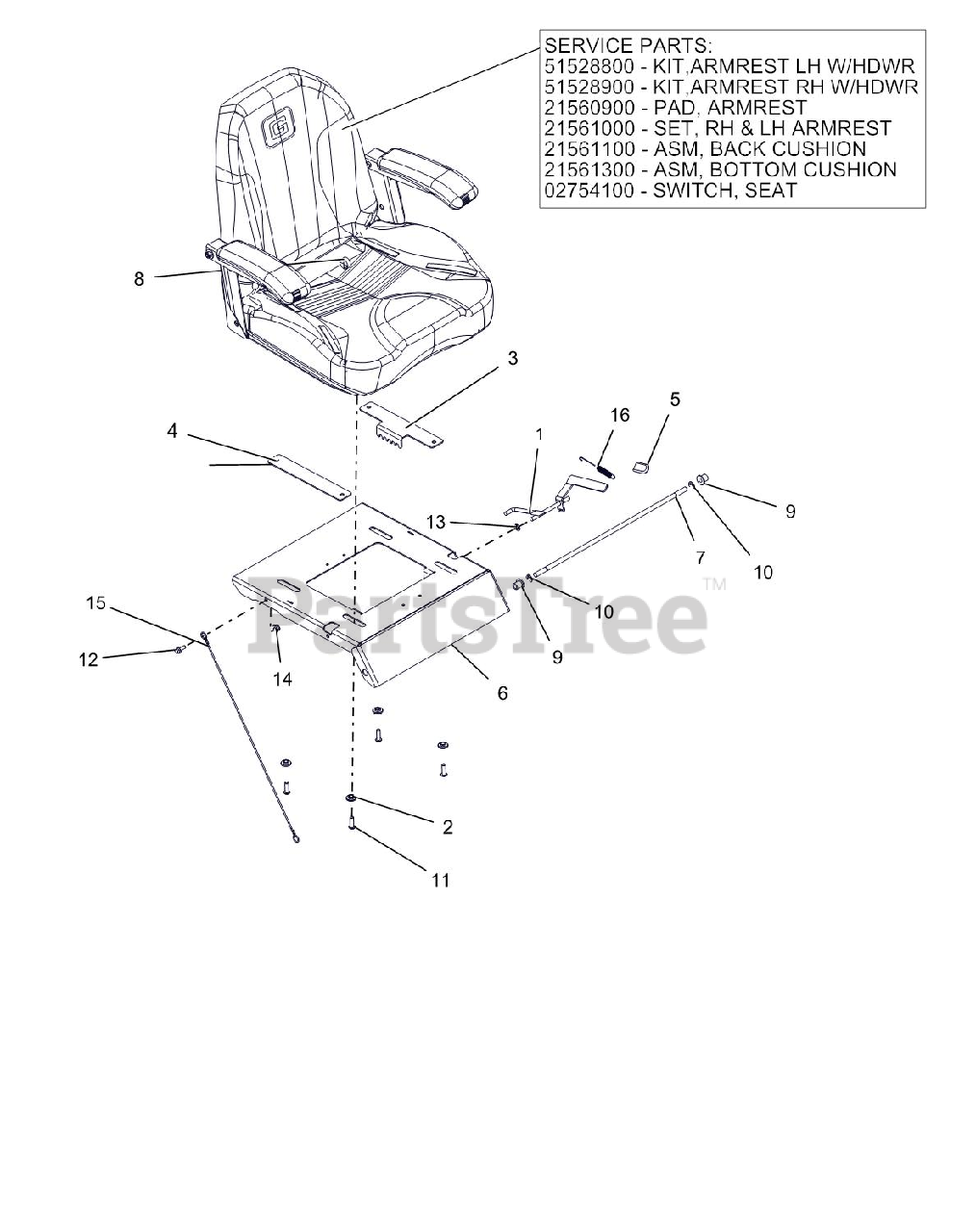

915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 029999) Seat Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

Seat Parts Diagram

  • Title

1

Gravely 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 04376951

PLATE, ADJUSTABLE SEAT TRACK

$13.99

$

In Stock, only 1 left!

0

4

Gravely 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 04757053

PLATE, SEAT

$90.99

$

Usually ships in 4-12 days

0

7

Gravely 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

8

Gravely 51528800

KIT, ARMREST LH

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

8

Gravely 51528900

KIT, ARMREST RH

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

8

Gravely 04888500

SEAT, ZTX 2017
(Superseded to 05176200)

$905.99

$

Usually ships in 4-12 days

0

8

Gravely 21560900

PAD, ARMREST (HARD)

Note: SERVICE PART

$40.99

$

Usually ships in 4-12 days

0

8

Gravely 21561000

SET,RH & LH ARMREST -HARD

Note: SERVICE PART

$114.99

$

Usually ships in 4-12 days

0

8

Gravely 21561100

ASM,BACK CUSHION-GRAVELY X

Note: SERVICE PART

$193.99

$

Usually ships in 4-12 days

0

8

Gravely 21561300

ASM,BOTTOM CUSHION-GRAVELY X

Note: SERVICE PART

$232.99

$

Usually ships in 4-12 days

0

9

Gravely 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

10

Gravely 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05901508

SCR-SKH .31-18X1.0 BTNHD YWZC
(Superseded to 05901840)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0

16

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0
