915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 029999) Idlers And Sheaves - 52 Inch Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

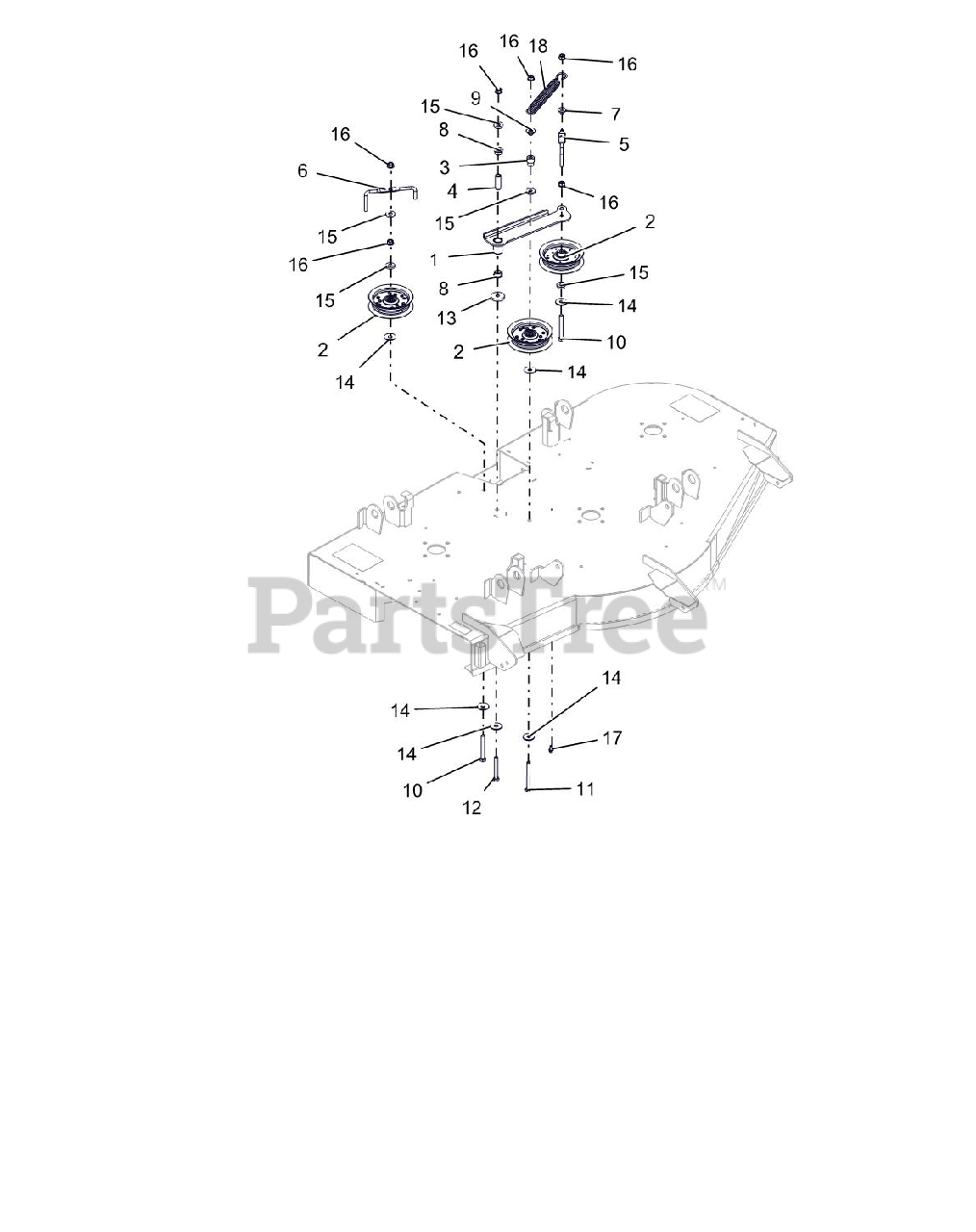

Idlers And Sheaves - 52 Inch Parts Diagram

  • Title

1

Gravely 04795653

WLDMT, IDLER ARM-52"

$77.99

$

In Stock, only 1 left!

0

2

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

3

Gravely 00679300

BUSHING, IDLER (P/M)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

5

Gravely 03856853

WIREFORM, BELT FINGER
(Superseded to 03856800)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

$

$

Not available

7

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

9

Gravely 05501028

BSHG-FLG .385X.500X.875X.31

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

11

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06400917

WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0
