915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 029999) Deck, Belt, Blades And Spindles - 52 Inch Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

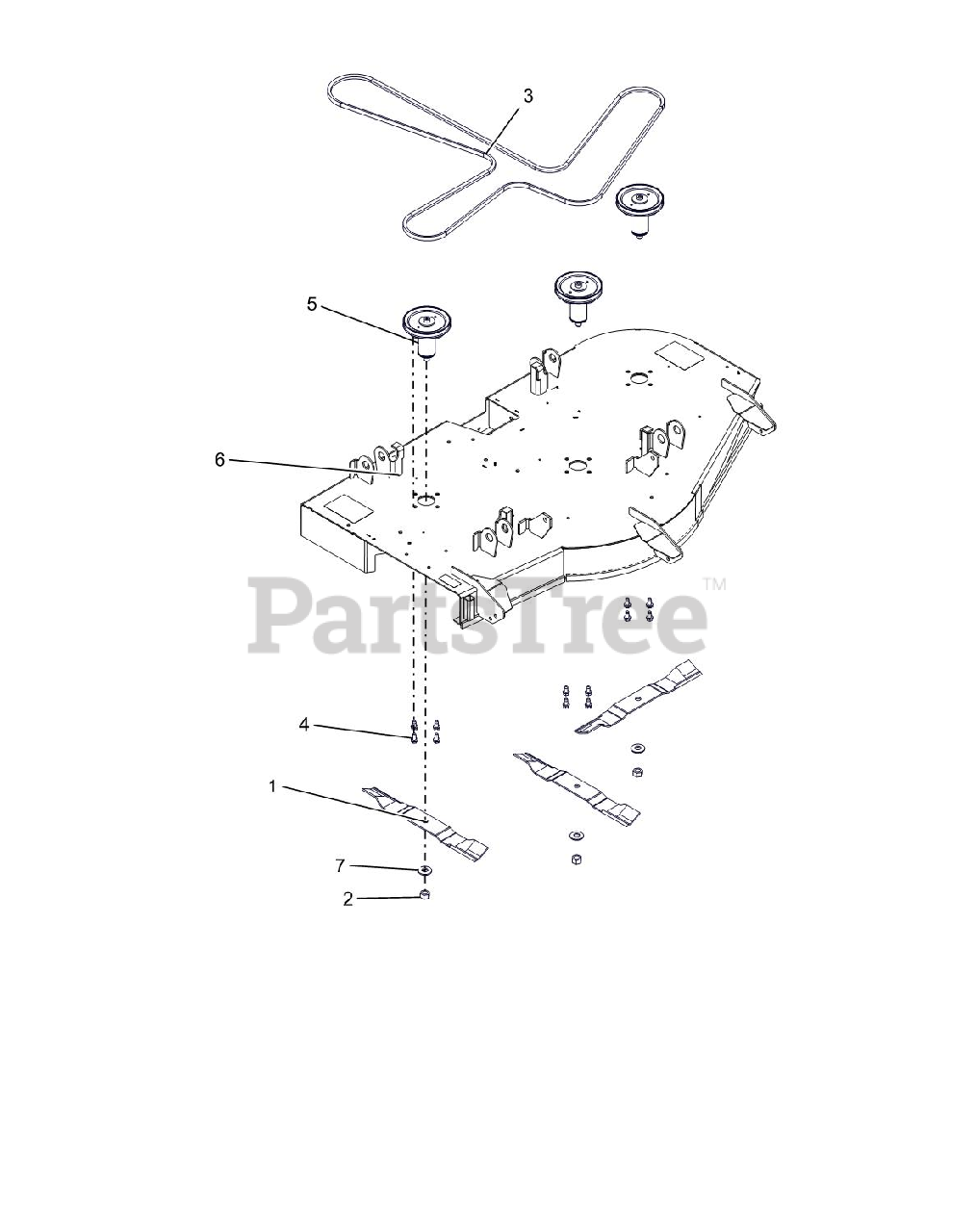

Deck, Belt, Blades And Spindles - 52 Inch Parts Diagram

  • Title
1

Gravely 04771200

BLADE, 18" - 30 DEG .5 OFFSET

$26.99

$

In Stock, Qty 20+

0

2

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 07200023

V-BELT, HA-WRAPPED

$86.99

$

In Stock, Qty 20+

0

4

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 51528000

KIT, DECK SPINDLE ASM-52
(Superseded to 51537200)

$183.99

$

In Stock, Qty 20+

0

6

Gravely 51528400

KIT, 52" GRAVELY DECK W/DECALS
(Superseded to 51533500)

$

$

Not available

7

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0
