915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 029999) Belt Covers And Baffles - 52 Inch Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

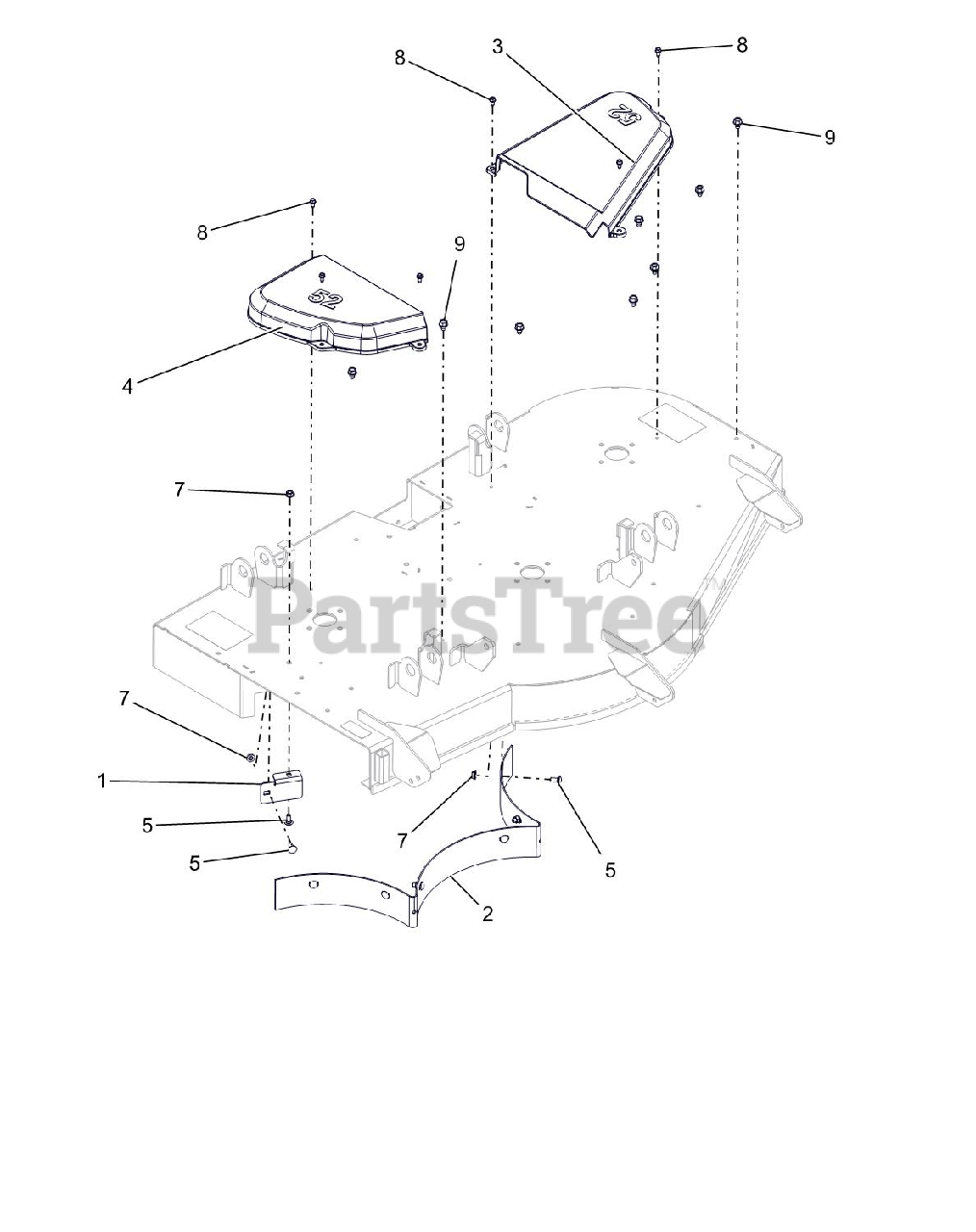

Belt Covers And Baffles - 52 Inch Parts Diagram

  • Title
1

Gravely 04771653

STRIP, DEFLECTOR - 52"

$

$

Not available

2

Gravely 04775253

BAFFLE, REAR - REMOVABLE 52"

$

$

Not available

3

Gravely 04792900

COVER, BELT 52" LH

$31.99

$

In Stock, Qty 20+

0

4

Gravely 04793300

COVER, BELT 52" RIGHT

$22.99

$

In Stock, Qty 20+

0

5

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
