915229 - Ariens Ikon-XL 60" Zero-Turn Mower, Kawasaki FR (SN: 080000 & Above) Idlers And Sheaves - 60" Parts Diagram

Ikon-XL 60" Zero-Turn Mower, Kawasaki FR

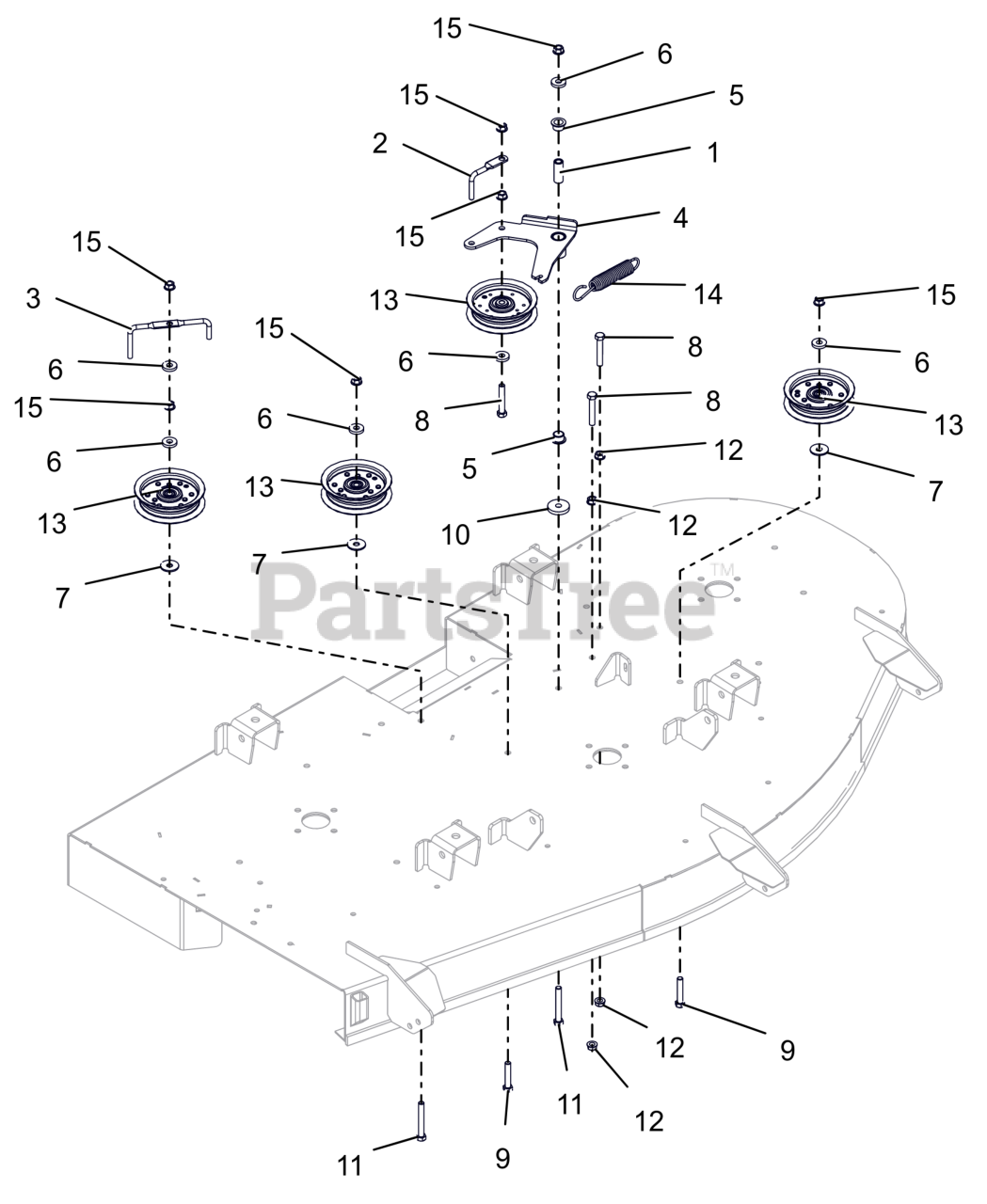

Idlers And Sheaves - 60" Parts Diagram

  • Title

1

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

2

Ariens 03828859

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

3

Ariens 03974159

WIREFORM, BELT FINGER
(Superseded to 03974100)

$

$

Not available

4

Ariens 04773359

WLDMT, IDLER ARM-42"

$37.99

$

Usually ships in 4-12 days

0

5

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

6

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

11

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

12

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

14

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0

15

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
