915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 080000 & Above) Rear Tires And Transaxles - 60" Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

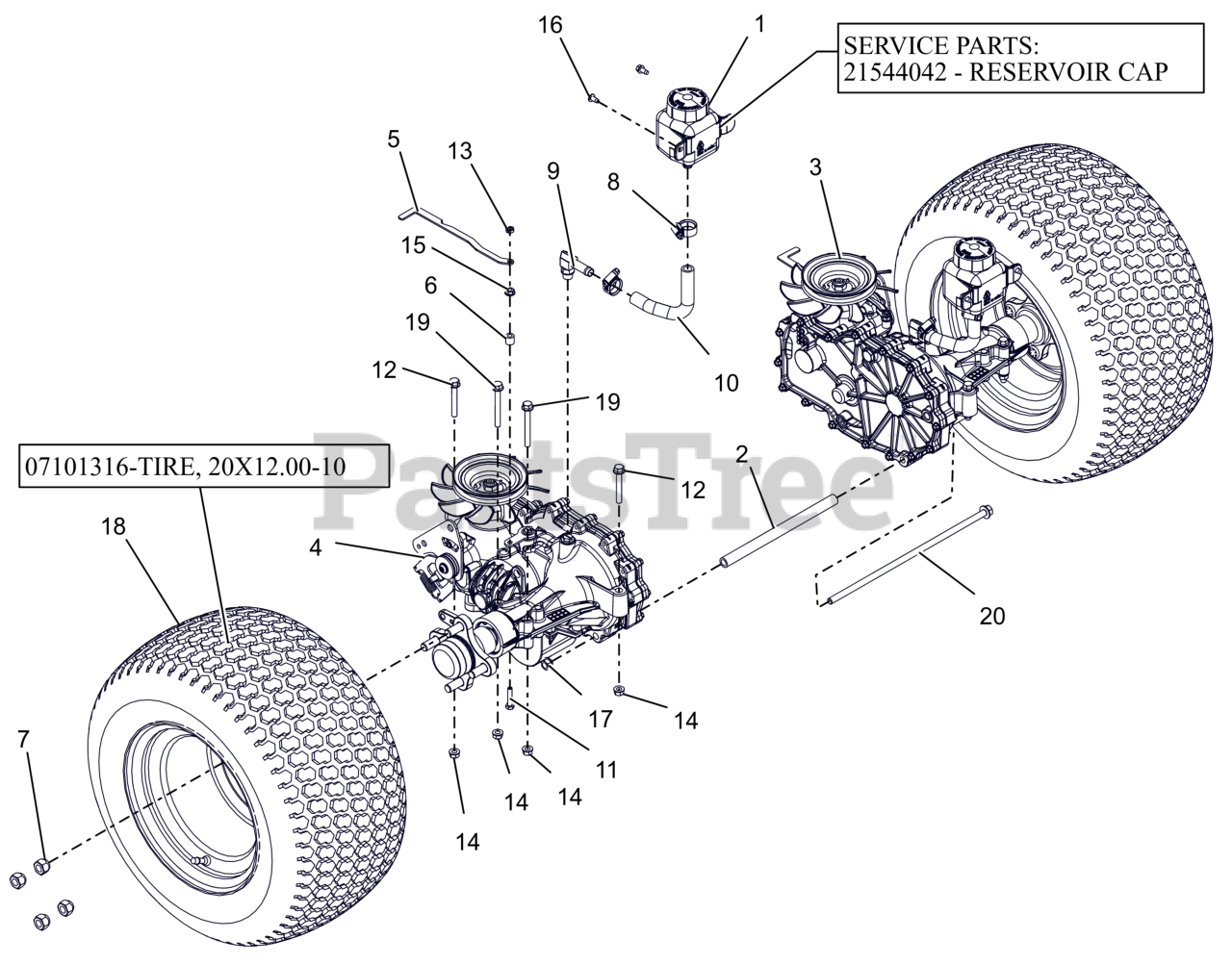

Rear Tires And Transaxles - 60" Parts Diagram

  • Title
1

Ariens 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service Part

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 05162551

TUBE, TRANSAXLE BRACE -9.27LG

$18.99

$

In Stock, only 1 left!

0

3

Ariens 04879900

TRANSAXLE,ZT2800 LH
(Superseded to 09160600)

$1427.99

$

Usually ships in 4-12 days

0

4

Ariens 04880100

TRANSAXLE,ZT2800 RH
(Superseded to 09160700)

$1428.99

$

Usually ships in 4-12 days

0

5

Ariens 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

6

Ariens 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Ariens 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Ariens 07001735

HOSE, FORMED LH XL

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$1.99

$

In Stock, Qty 5

0

12

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07101313

ASM, WHL/TIRE 20X12.00-10

$205.99

$

Usually ships in 4-12 days

0

18

Ariens 07101316

TIRE, 20X12.00-10 (MONITOR)

Note: Component Service Part

$148.99

$

Usually ships in 4-12 days

0

19

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 05901903

BLT,HEX-FLG .38-16X13 G5 ZCC

$13.99

$

In Stock, only 1 left!

0
