915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 045000 - 074999) Seat (05092400) Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

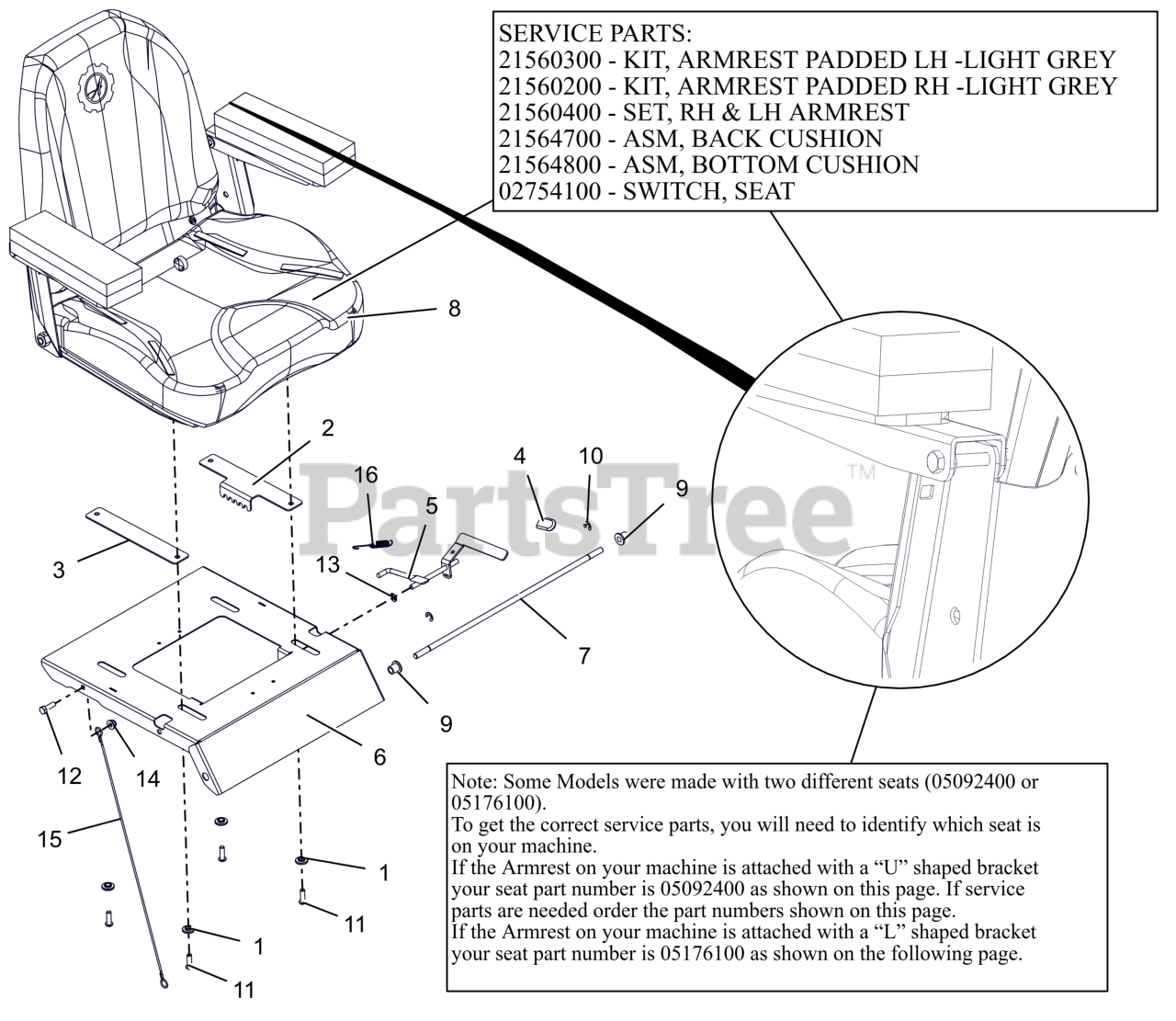

Seat (05092400) Parts Diagram

  • Title

1

Ariens 05501328

BSHG, FLG .312X.499X.23X.88

$2.49

$

In Stock, only 2 left!

0

2

Ariens 04376951

PLATE, ADJUSTABLE SEAT TRACK

$13.99

$

In Stock, only 1 left!

0

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Ariens 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

6

Ariens 04757059

PLATE, SEAT

$67.99

$

Usually ships in 4-12 days

0

7

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$

$

Not available

8

Ariens 05092400

SEAT, IKON XL

$

$

Not available

8

Ariens 21560300

PAD,LH ARMREST LIGHT GREY SOFT

Note: SERVICE PART

$

$

Not available

8

Ariens 21560200

PAD, RH ARMREST LIGHT GREY

Note: SERVICE PART

$51.99

$

Usually ships in 4-12 days

0

8

Ariens 21560400

SET,RH & LH ARMREST -LTGREY

Note: SERVICE PART

$135.99

$

Usually ships in 4-12 days

0

8

Ariens 21564700

ASM, BACK CUSHION-ARIENS X

Note: SERVICE PART

$

$

Not available

8

Ariens 21564800

ASM, BOTTOM CUSHION-ARIENS X

Note: SERVICE PART

$232.99

$

Usually ships in 4-12 days

0

8

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

9

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

10

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0

16

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0
