915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 - 029999) Engine - Kohler 25HP Twin Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

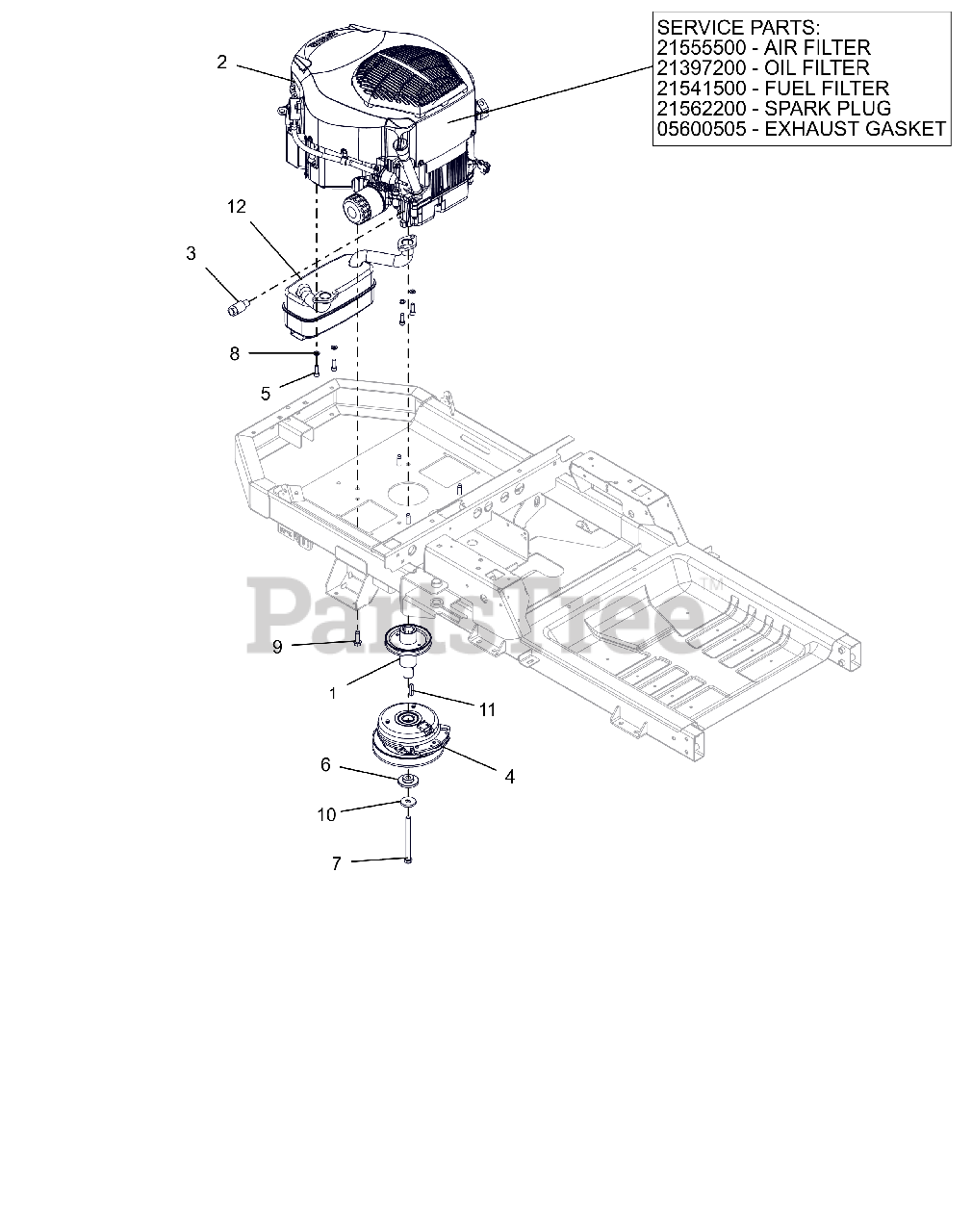

Engine - Kohler 25HP Twin Parts Diagram

  • Title

1

Ariens 07345000

WLDMT, DRIVE SHEAVE (LG XL)CZC

$64.99

$

Usually ships in 4-12 days

0

2

Ariens 08201211

ENGINE, KOHLER TWIN - 25HP

$

$

Not available

2

Ariens 21555500

AIR CLEANER, KOHLER

Note: SERVICE PART

$29.99

$

In Stock, only 1 left!

0

2

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, Qty 6

0

2

Ariens 21541500

FILTER, FUEL

Note: SERVICE PART

$8.99

$

In Stock, Qty 20+

0

2

Ariens 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

3

Ariens 03943600

DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0

4

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, only 4 left!

0

5

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

7

Ariens 05901606

BLT-HEX.438-20X5 GR8 YZ NYTORQ
(Superseded to 05901823)

$6.99

$

In Stock, only 1 left!

0

8

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 3 left!

0

10

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

11

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

12

Ariens 05088400

MUFFLER - KOHLER
(Superseded to 05113700)

$82.99

$

In Stock, only 1 left!

0
