915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 - 029999) Belt Covers And Baffles - 60" Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

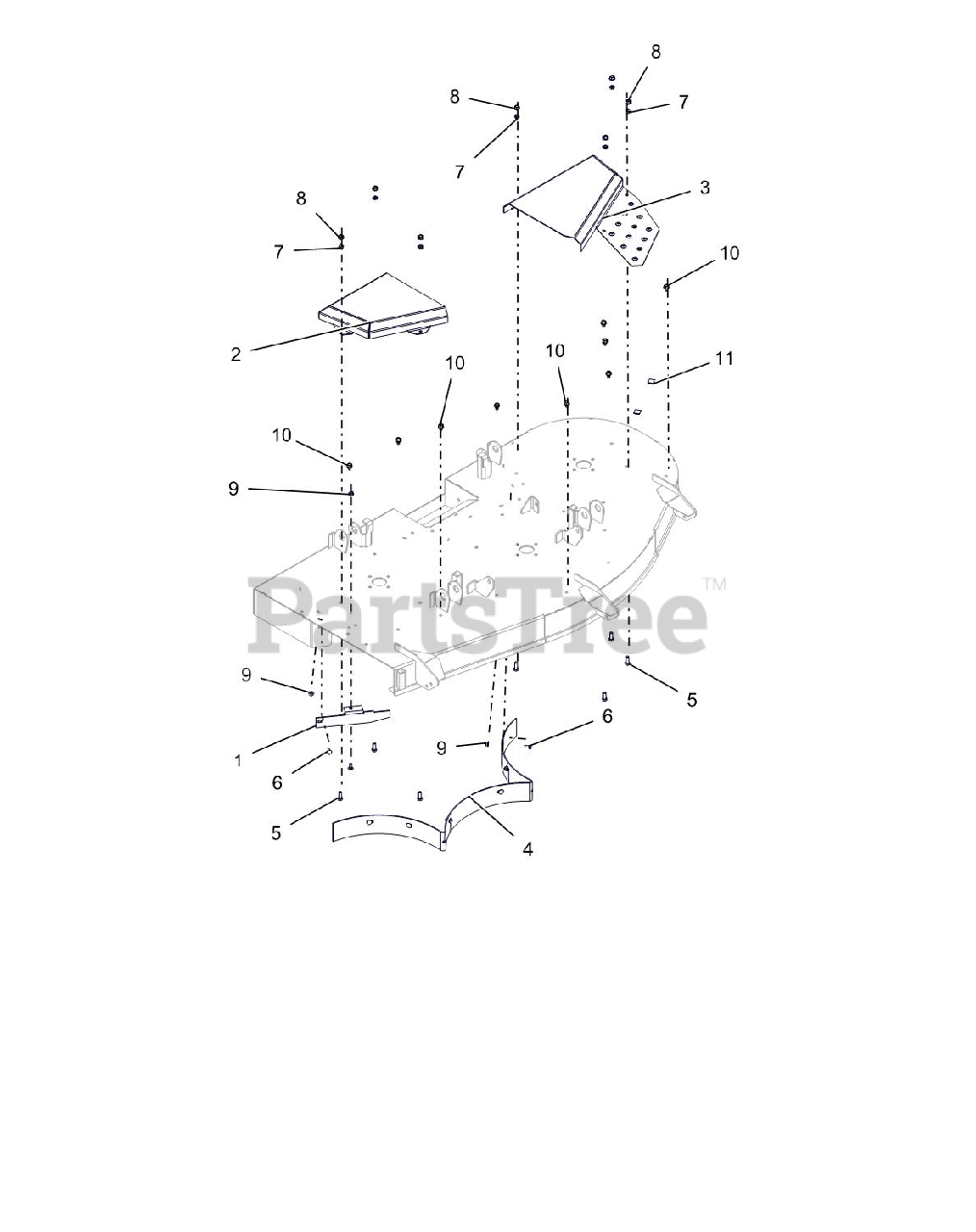

Belt Covers And Baffles - 60" Parts Diagram

  • Title
1

Ariens 04995259

BAFFLE, DISCHARGE 60

$34.99

$

In Stock, only 1 left!

0

2

Ariens 04997059

COVER, RH BELT 60

$68.99

$

Usually ships in 4-12 days

0

3

Ariens 04997159

COVER, LH BELT 60

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 05015359

BAFFLE, REAR BOLT-IN, 60" XL

$

$

Not available

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

11

$2.49

$

Usually ships in 4-12 days

0
