915227 - Ariens Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin (SN: 075000 - 079999) Discharge Chute Parts Diagram

Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin

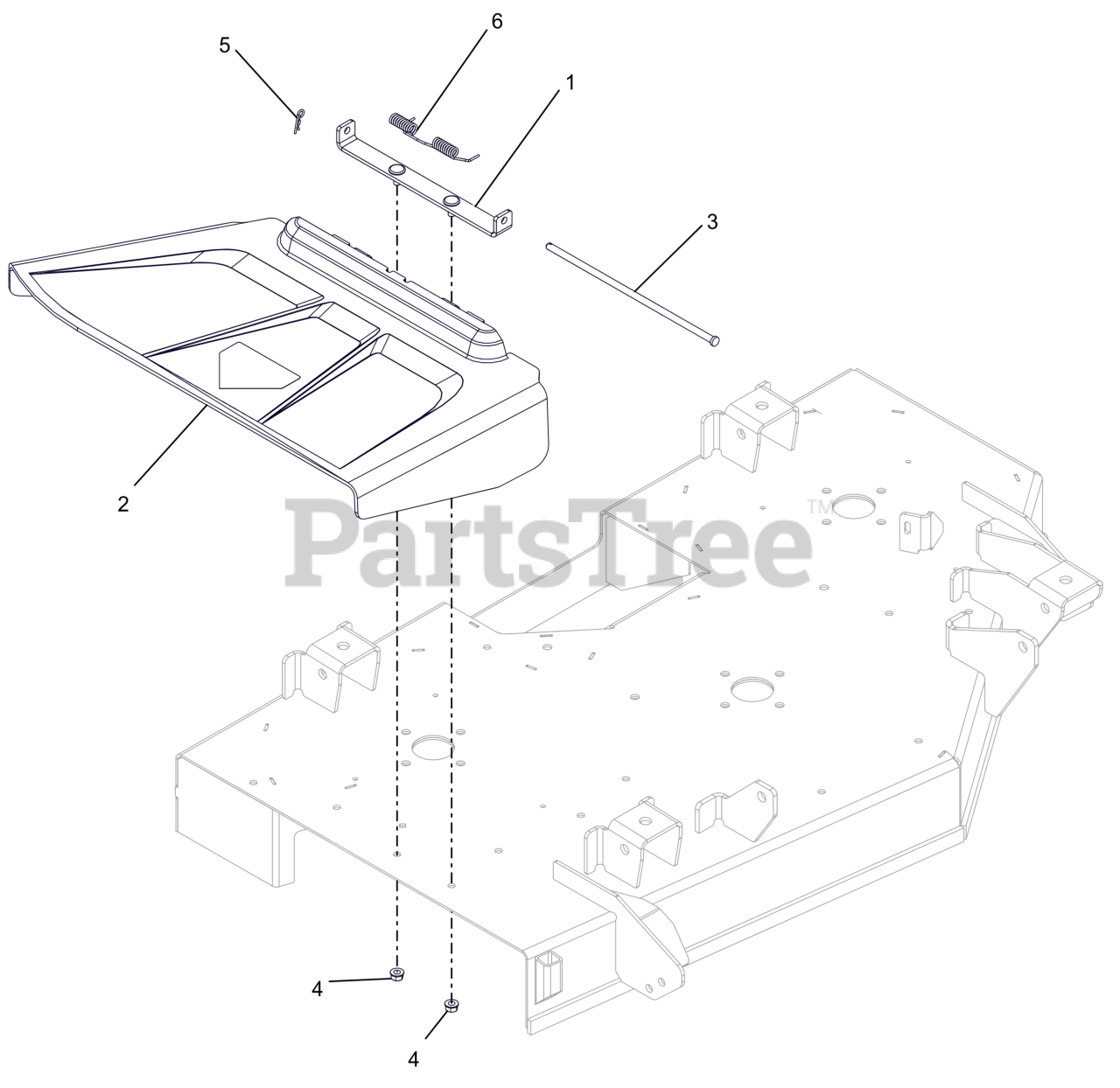

Discharge Chute Parts Diagram

  • Title
1

$21.99

$

In Stock, Qty 20+

0

2

Ariens 04795000

CHUTE, SIDE DISCHARGE

$45.99

$

In Stock, Qty 20+

0

3

Ariens 04815900

PIN, 5/16 X 10.5
(Superseded to 06800205)

$15.99

$

In Stock, Qty 20+

0

4

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 20+

0
