915227 - Ariens Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin (SN: 000101 - 029999) Idlers And Sheaves - 52" Parts Diagram

Ikon-XL 52" Zero-Turn Mower, 24hp Kohler Twin

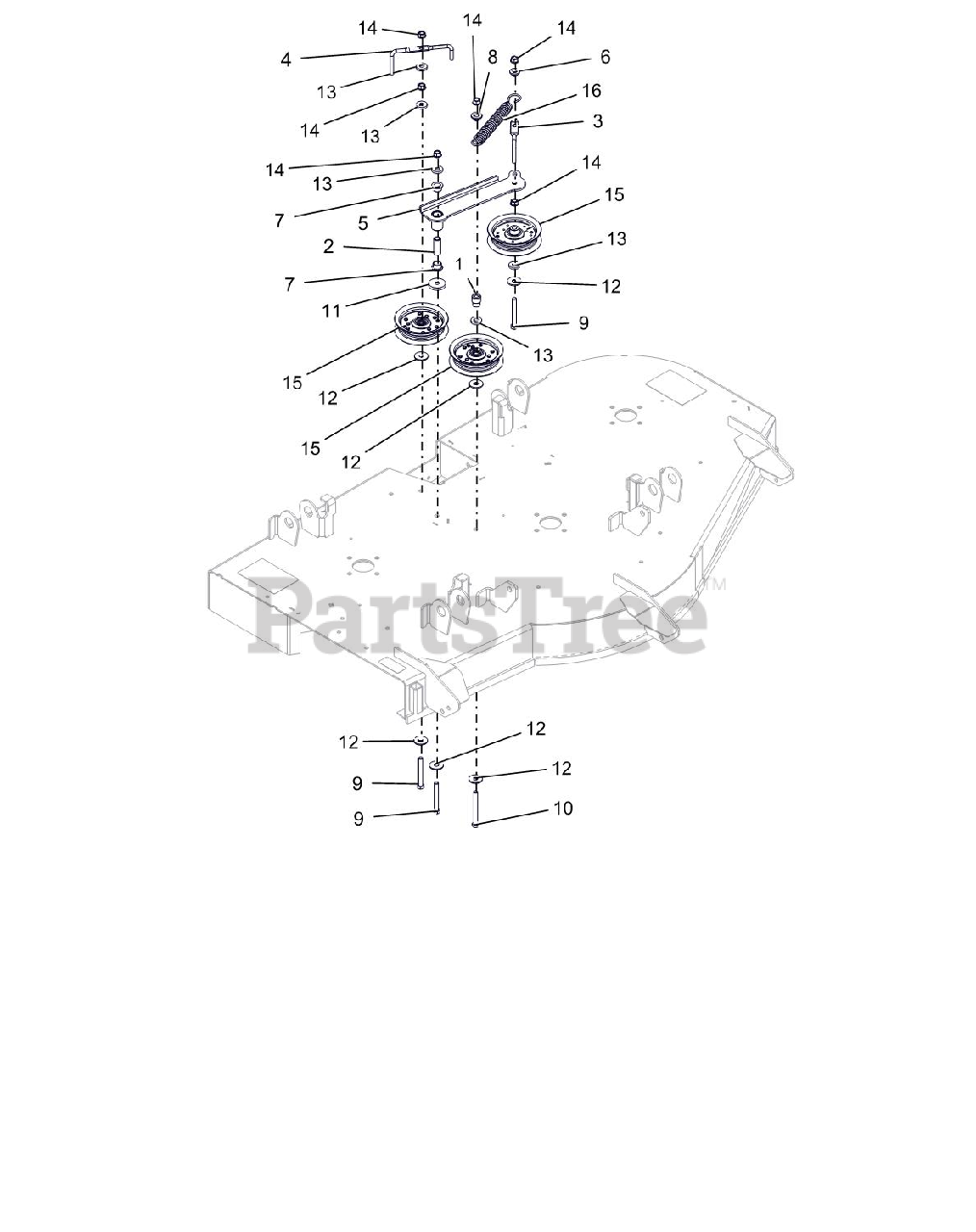

Idlers And Sheaves - 52" Parts Diagram

  • Title

1

Ariens 00679300

BUSHING, IDLER (P/M)

$3.49

$

In Stock, only 2 left!

0

2

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

3

Ariens 03856859

WIREFORM, BELT FINGER

$

$

Not available

4

Ariens 03974100

BELT FINGER

$

$

Not available

5

Ariens 04795659

WLDMT, IDLER ARM-52"

$45.99

$

In Stock, only 1 left!

0

6

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

8

Ariens 05501028

BSHG-FLG .385X.500X.875X.31

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

16

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0
