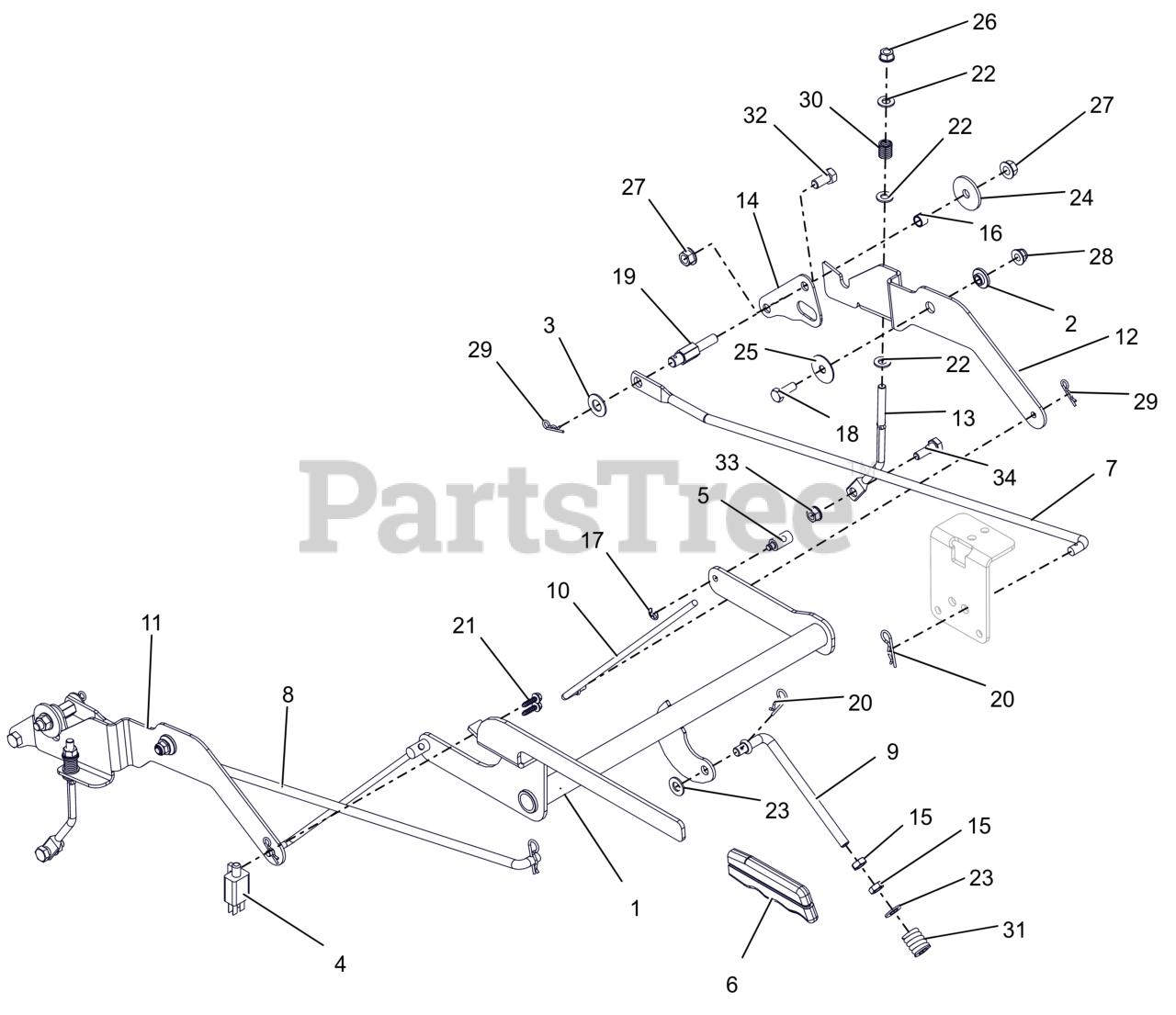

915226 - Ariens Ikon-XL 42" Zero-Turn Mower, 22hp Kohler (SN: 080000 & Above) Parking Brake Parts Diagram

Ikon-XL 42" Zero-Turn Mower, 22hp Kohler

Parking Brake Parts Diagram

  • Title

1

Ariens 04787851

WLDMT, BRAKE LEVER

$46.99

$

Usually ships in 4-12 days

0

2

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

3

Ariens 06401112

WSHR, FLT .505X1.00X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

5

Ariens 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

6

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

7

Ariens 05245700

LINKAGE, STEERING - LH

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 05245600

LINKAGE, STEERING - RH

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 04787900

LINK, OVER CENTER, PARKING BRK

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 04788000

LINK, BRAKE ARM

$

$

Not available

11

Ariens 04788151

INTERLOCK, RH BRAKE LINK
(Superseded to 04788100)

$23.99

$

Usually ships in 4-12 days

0

12

Ariens 04790451

INTERLOCK, LH BRAKE LINK
(Superseded to 04790400)

$22.99

$

Usually ships in 4-12 days

0

13

Ariens 04879600

LINK, BRAKE (XL)

$16.99

$

Usually ships in 4-12 days

0

14

Ariens 04799351

PLATE, TRANSAXLE ADAPTOR

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05501235

SPCR, SLV .385X.500X.350

$1.49

$

In Stock, Qty 11

0

17

Ariens 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

19

Ariens 05245800

POST, STEERING LINK MOUNTING

$

$

Not available

20

Ariens 06700219

PIN, HAIR #203 .09X1.50 ZCC

$2.99

$

In Stock, Qty 9

0

21

Ariens 06100232

SCR, PLASTITE #12X.75 ZCC

$

$

Not available

22

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 9

0

25

Ariens 06401105

WSHR, FLT .347X1.254X.048 ZCC

$2.49

$

In Stock, only 2 left!

0

26

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 6

0

31

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17

0

32

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

34

Ariens 07001734

BOLT,SHLDR .38X.25 -.31-18X.75

$

$

Not available
