915225 - Ariens Ikon-X 52" Zero-Turn Mower, Kawasaki FR, CARB (SN: 045000 & Above) Deck, Belt, Blades and Spindles - 52" Parts Diagram

Ikon-X 52" Zero-Turn Mower, Kawasaki FR, CARB

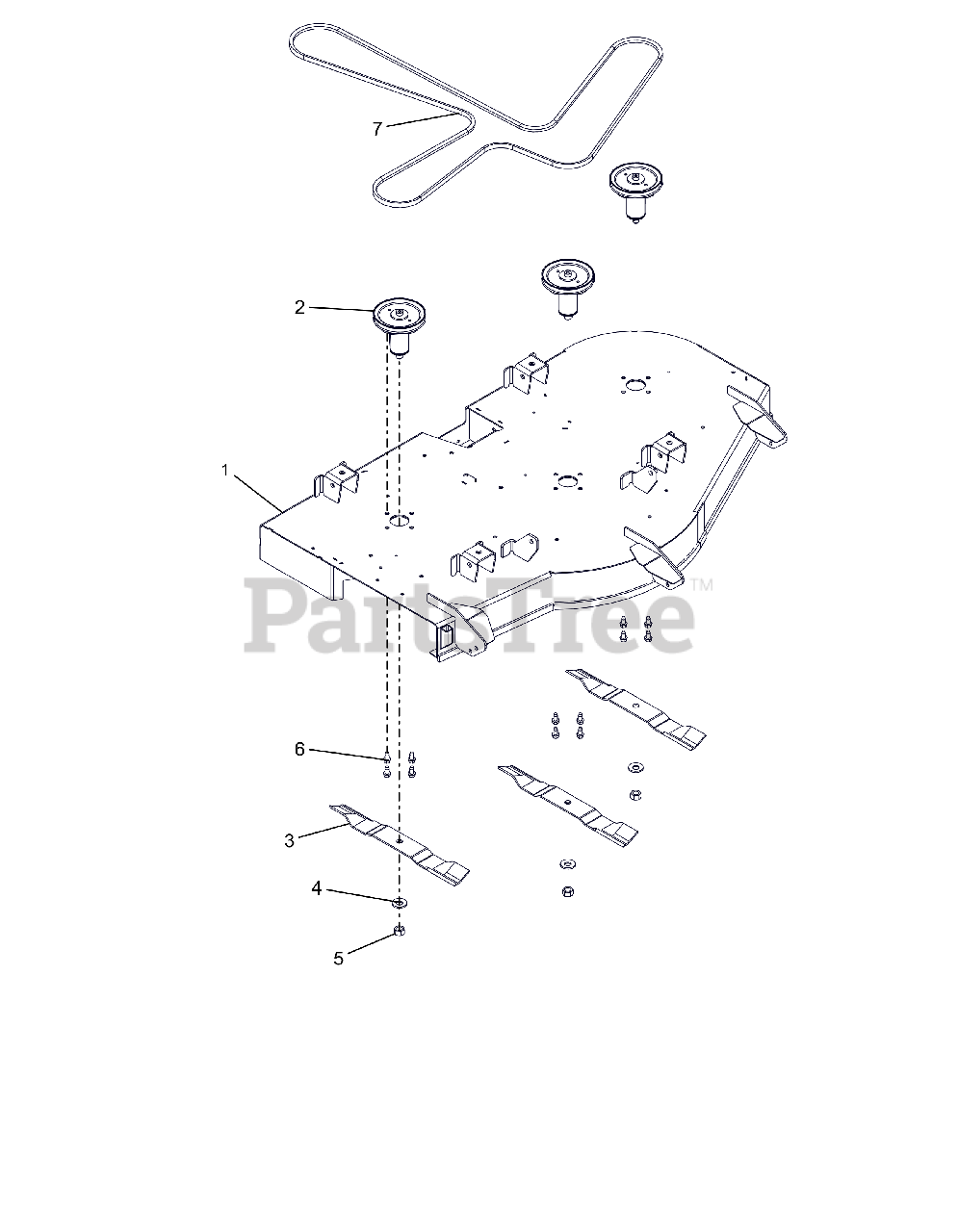

Deck, Belt, Blades and Spindles - 52" Parts Diagram

  • Title
1

Ariens 51532300

KIT, 52" ARIENS DECK W/DECALS

$749.99

$

Usually ships in 4-12 days

0

2

Ariens 51528000

KIT, DECK SPINDLE ASM-52
(Superseded to 51537200)

$183.99

$

In Stock, Qty 20+

0

3

Ariens 04771200

BLADE, 18" - 30 DEG .5 OFFSET

$26.99

$

In Stock, Qty 20+

0

4

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

5

Ariens 06500920

NUT-STD .625-18 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07200023

V-BELT, HA-WRAPPED

$86.99

$

In Stock, Qty 20+

0
