915224 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB (SN: 045000 & Above) Seat Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB

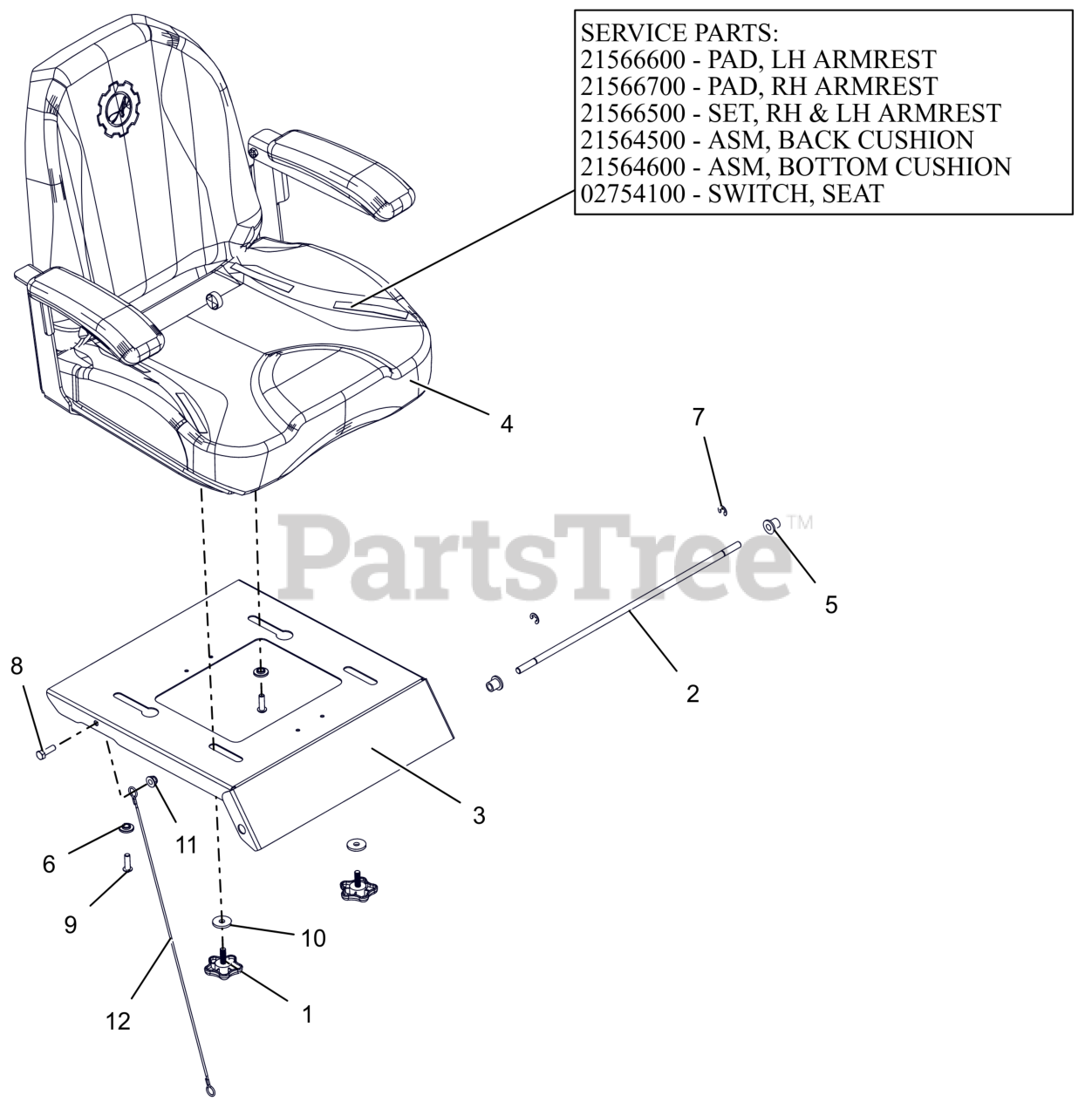

Seat Parts Diagram

  • Title

1

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

2

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$

$

Not available

3

Ariens 05160859

PLATE, SEAT (FASTENER SLIDE)
(Superseded to 05246959)

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 05176000

SEAT, IKON

$581.99

$

In Stock, only 1 left!

0

4

Ariens 21566600

PAD, LH ARMREST

Note: SERVICE PART

$55.99

$

Usually ships in 4-12 days

0

4

Ariens 21566700

PAD, RH ARMREST

Note: SERVICE PART

$55.99

$

Usually ships in 4-12 days

0

4

Ariens 21566500

SET, RH & LH ARMREST ASM

Note: SERVICE PART

$119.99

$

Usually ships in 4-12 days

0

4

Ariens 21564500

ASM, BACK CUSHION-ARIENS X

Note: SERVICE PART

$219.99

$

In Stock, only 1 left!

0

4

Ariens 21564600

ASM, BOTTOM CUSHION-ARIENS X

Note: SERVICE PART

$187.99

$

Usually ships in 4-12 days

0

4

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

5

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

6

Ariens 05501328

BSHG, FLG .312X.499X.23X.88

$2.49

$

In Stock, only 2 left!

0

7

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 2 left!

0

11

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0
