915224 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB (SN: 030000 - 034999) Frame Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB

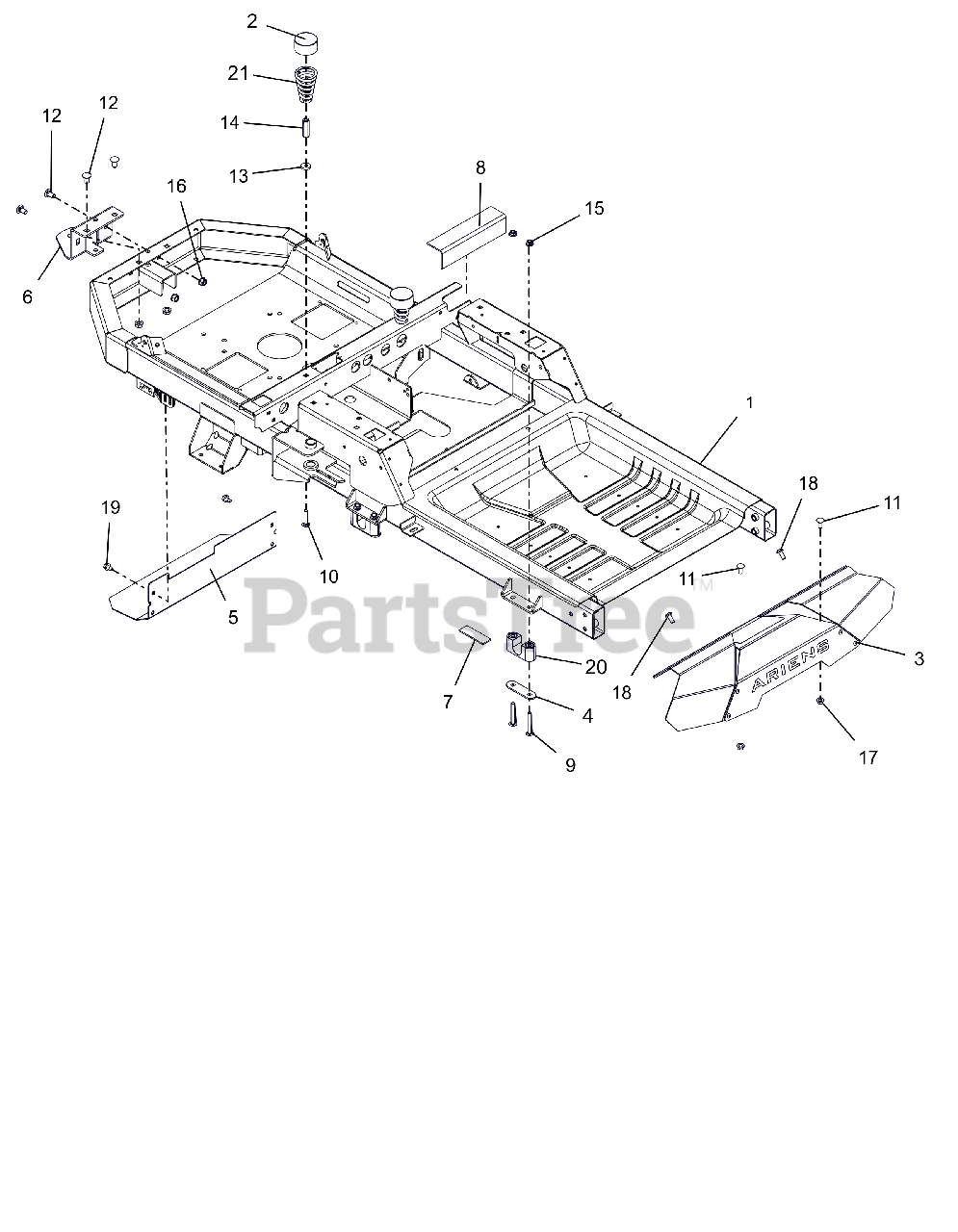

Frame Parts Diagram

  • Title
1

Ariens 51531600

KIT, IKON-X/XL FRAME (2016)

$746.99

$

Usually ships in 4-12 days

0

2

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

3

Ariens 51531300

KIT, IKON FOOT REST W/DECAL

$98.99

$

Usually ships in 4-12 days

0

4

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

5

Ariens 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 1 left!

0

6

Ariens 04835359

BRKT, HITCH TONGUE

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

8

Ariens 04864600

PAD, RUBBER-TANK

$

$

Not available

9

Ariens 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

13

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

14

Ariens 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

15

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07400120

SCR-RDHDSKTAP .31-18 X .75
(Superseded to 07400134)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0
