915222 - Ariens Ikon-X 52" Zero-Turn Mower, 24hp Kohler (SN: 035000 - 044999) Fuel System - Non-CARB Parts Diagram

Ikon-X 52" Zero-Turn Mower, 24hp Kohler

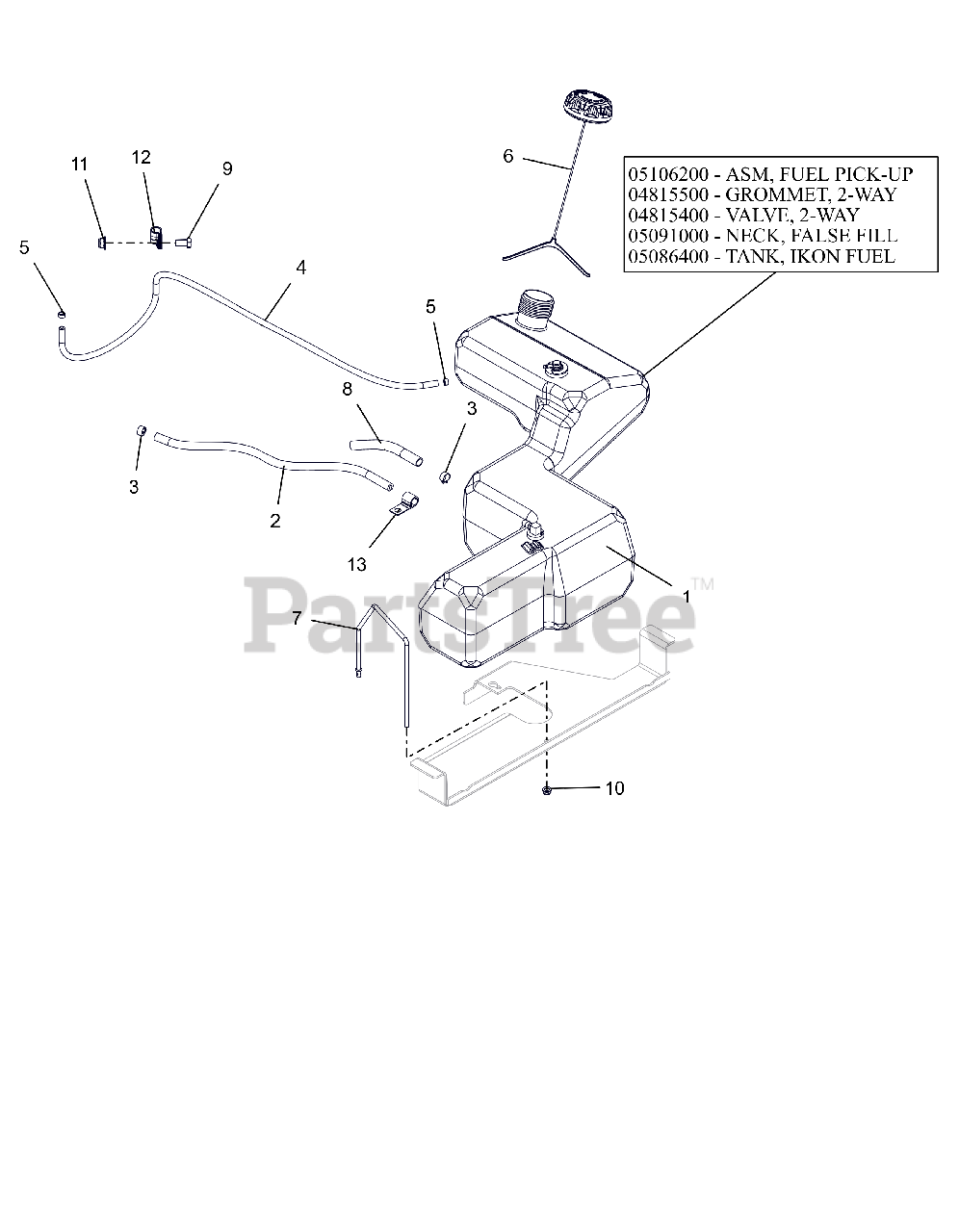

Fuel System - Non-CARB Parts Diagram

  • Title

1

Ariens 05086600

ASSEMBLY, FUEL TANK IKON(2017)
(Superseded to 09167200)

$155.99

$

Usually ships in 4-12 days

0

1

Ariens 05106200

ASM, IKON FUEL PICK-UP

$29.99

$

Usually ships in 4-12 days

0

1

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

$3.49

$

In Stock, Qty 8

0

1

Ariens 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 7

0

1

Ariens 05091000

NECK, FALSE FILL-2017 IKON

$

$

Not available

1

Ariens 05086400

TANK, IKON FUEL (2017)

$

$

Not available

2

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

5

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$20.99

$

In Stock, Qty 20+

0

7

Ariens 05099867

BRKT, FUEL TANK HOLD DOWN

$

$

Not available

8

Ariens 05118500

WRAP, ANTIABRASION .5X.064WALL

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0
