915222 - Ariens Ikon-X 52" Zero-Turn Mower, 24hp Kohler (SN: 030000 - 034999) Engine - Kohler 24HP Parts Diagram
Ikon-X 52" Zero-Turn Mower, 24hp Kohler

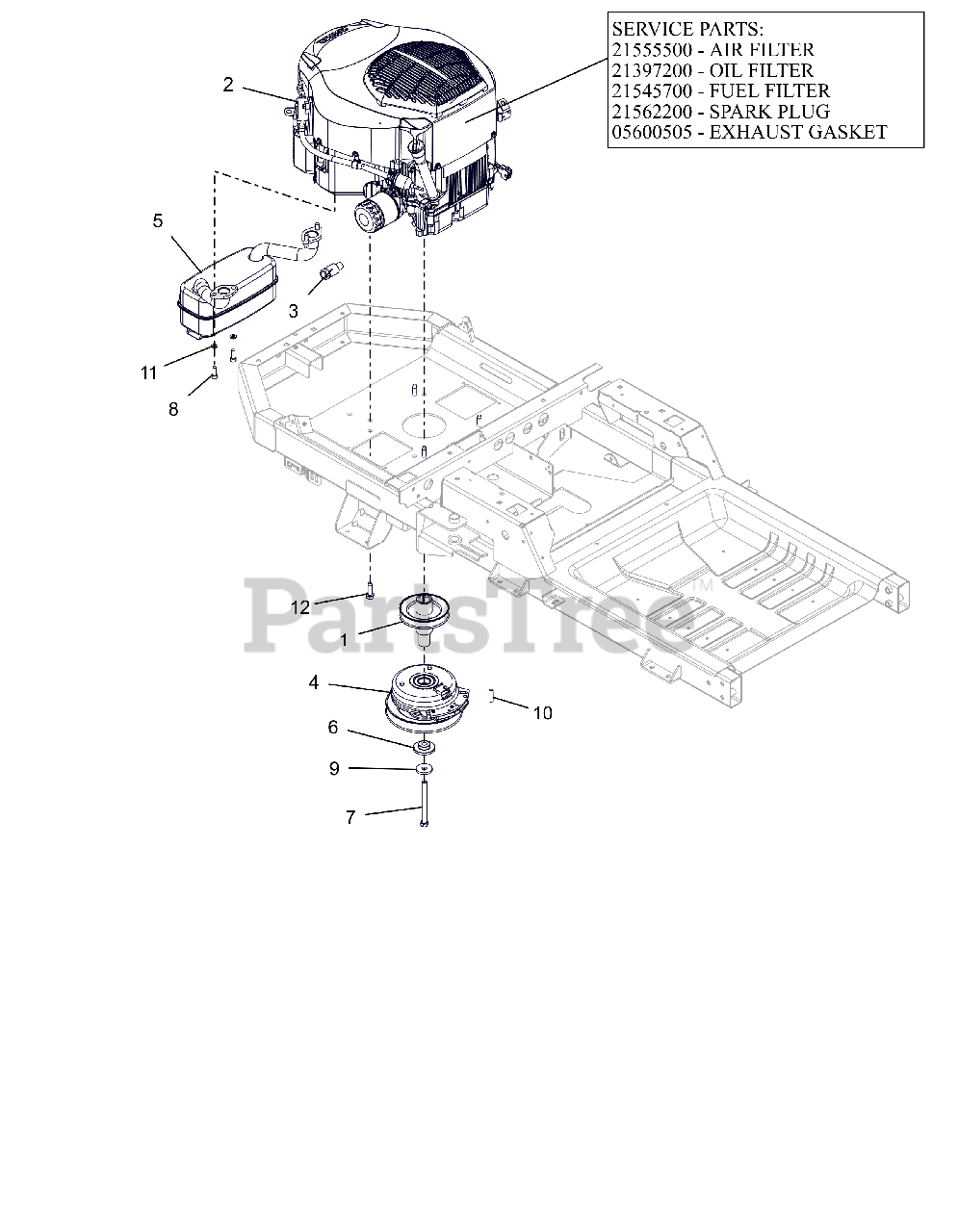

Engine - Kohler 24HP Parts Diagram
Ariens 07345100
WLDMT, DRIVE SHEAVE-X
$
$
Not available
Ariens 08201201
ENGINE, KOHLER 24HP TWIN
$
$
Not available
Ariens 03943600
DRAIN, OIL
$11.99
$
In Stock, only 3 left!
Ariens 04678300
CLUTCH,105FTLB MONOPOLE 6.83"
$258.99
$
In Stock, Qty 5
$82.99
$
In Stock, only 1 left!
Ariens 05501206
BSHG-FLG .469X1.06X.574X2.0
$19.99
$
In Stock, only 1 left!
$5.99
$
Usually ships in 4-12 days
Ariens 05901839
SCR-CAP .31-18X.88 S/HD G8 ZCC
$2.99
$
Usually ships in 4-12 days
Ariens 06400936
WASHER, 7/16" SPRING DISK
$11.99
$
In Stock, only 1 left!
Ariens 06603400
KEY-SQ .25 X 1.25 X .25 SAE
$3.99
$
In Stock, Qty 11
Ariens 06300119
WSHR,LK-REG .312X.078 ZCC
$0.99
$
In Stock, Qty 20+
Ariens 07400128
SCR,TAP .375-16X1.25HWH TR ZCC
$2.99
$
In Stock, only 3 left!
