915222 - Ariens Ikon-X 52" Zero-Turn Mower, 24hp Kohler (SN: 000101 - 029999) Transaxle Drive Parts Diagram

Ikon-X 52" Zero-Turn Mower, 24hp Kohler

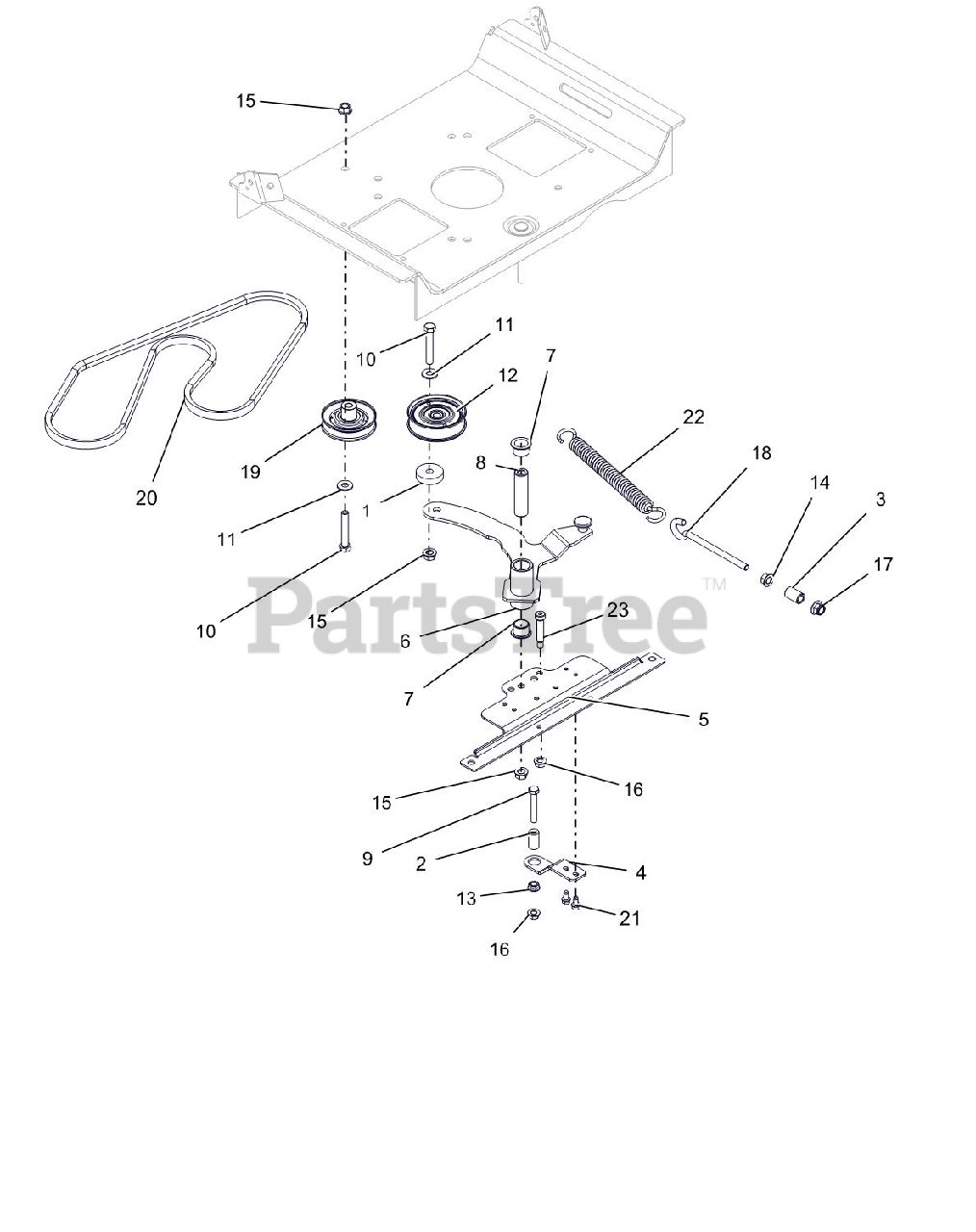

Transaxle Drive Parts Diagram

  • Title

1

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

2

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 2 left!

0

3

Ariens 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 04793951

BRKT, CLUTCH STOP

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 04875151

BRKT, DRIVE IDLER MOUNTING

$25.99

$

In Stock, only 1 left!

0

6

Ariens 04890451

WLDMT,GRD DRIVE IDLER ARM-LGR

$59.99

$

In Stock, only 1 left!

0

7

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, only 2 left!

0

8

Ariens 05501237

BUSHING, SLEEVE .38X.750X2.78

$17.99

$

In Stock, only 1 left!

0

9

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, only 1 left!

0

13

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

19

Ariens 07345400

ASM, 3.00" V IDLER
(Superseded to 51531400)

$39.99

$

In Stock, only 1 left!

0

20

Ariens 07200718

V-BELT, A-RAW EDGE

$52.99

$

In Stock, Qty 20+

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

23

Ariens 07070118

BLT-SHLDR .38X1.5X.31-18 SLT Y

$5.99

$

Usually ships in 4-12 days

0
