915218 (ZT XL 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 075000 - 079999) Engine - Kawasaki FR730 Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR

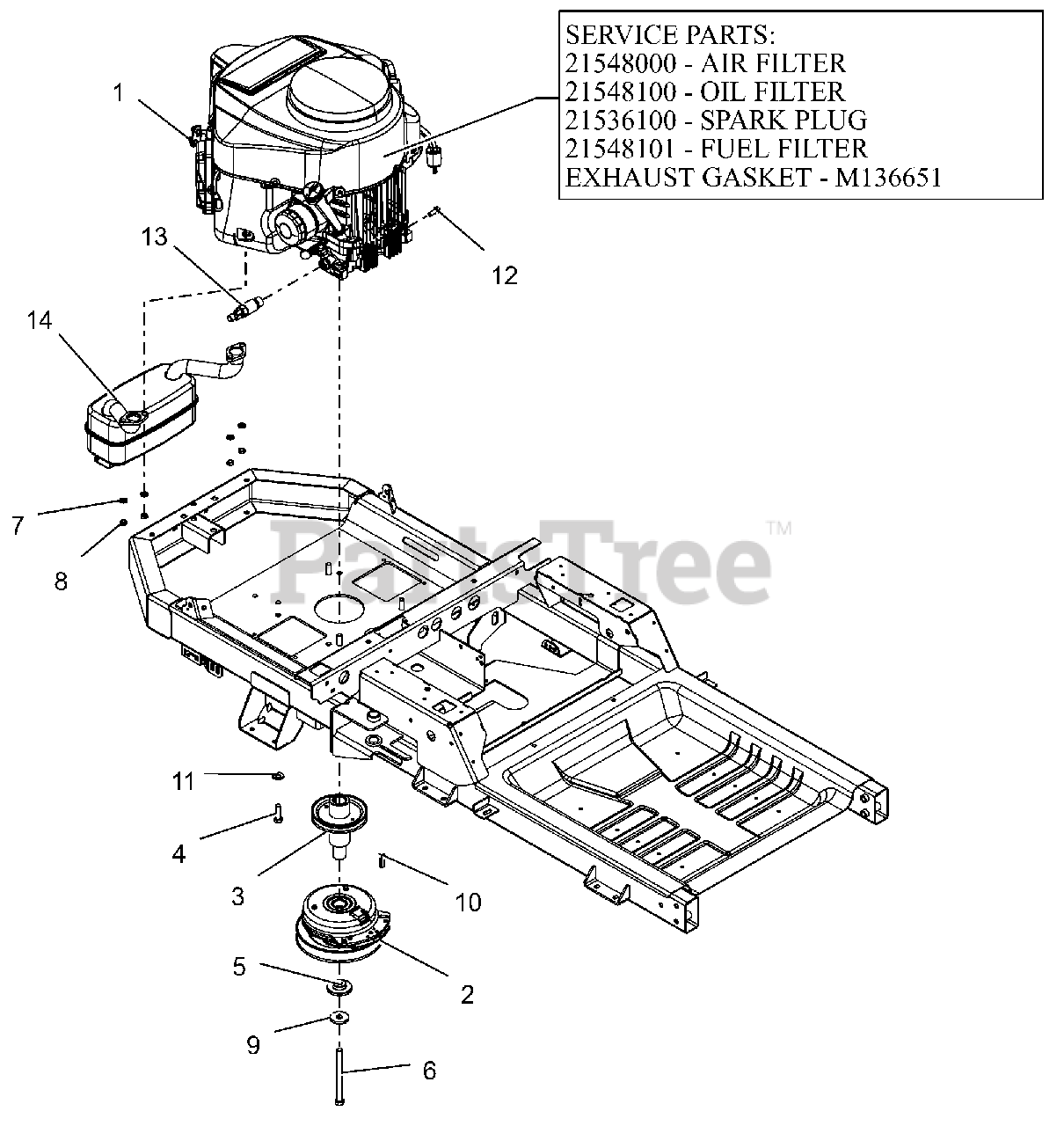

Engine - Kawasaki FR730 Parts Diagram

  • Title

1

Gravely 08201129

ENGINE, KAWASAKI FR730 24HP

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

PLUG, SPARK

$3.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

$

$

Not available

1

Gravely M136651

GASKET, MUFFLER #
(Superseded to 00191627)

$7.99

$

In Stock, only 2 left!

0

2

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, only 4 left!

0

3

Gravely 07345000

WLDMT, DRIVE SHEAVE (LG XL)CZC

$64.99

$

Usually ships in 4-12 days

0

4

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

5

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

6

Gravely 05901606

BLT-HEX.438-20X5 GR8 YZ NYTORQ
(Superseded to 05901823)

$6.99

$

In Stock, only 1 left!

0

7

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

10

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

11

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

13

Gravely 04977100

DRAIN, OIL M20X2.5

$12.99

$

In Stock, Qty 20+

0

14

Gravely 05088300

MUFFLER - KAWASAKI

$102.99

$

Usually ships in 4-12 days

0
