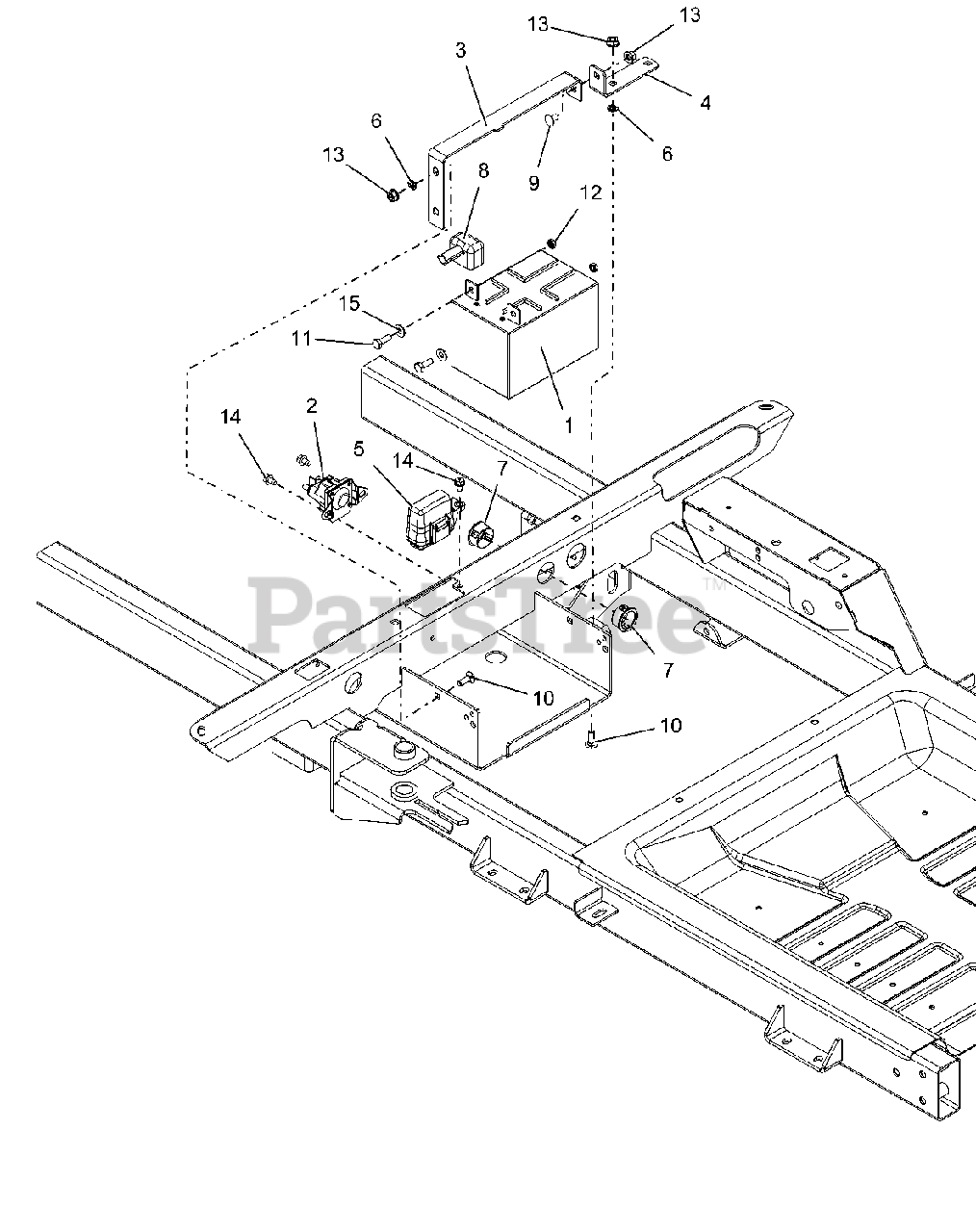

915216 (ZT XL 60) - Gravely 60" Zero-Turn Mower, 26hp Kohler Pro (SN: 000101 - 019999) Electrical Parts Diagram

60" Zero-Turn Mower, 26hp Kohler Pro

Electrical Parts Diagram

  • Title

1

Gravely 04738800

BATTERY, 12V 12A -190CCA

$122.99

$

In Stock, Qty 20+

0

2

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 2 left!

0

3

Gravely 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 04833651

BRKT, BATTERY (BLACK)

$

$

Not available

5

Gravely 04974400

HARNESS, WIRE -2016 IKON/ZT-4POS
(Superseded to 05295600)

$102.99

$

In Stock, only 1 left!

0

6

Gravely 07027600

NUT, PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

7

Gravely 07500308

BSHG, PANEL SNAP .937X1.109X.56

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5 Y
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

11

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500704

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
