915212 (ZT 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 & Above) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, 22hp Kohler Twin

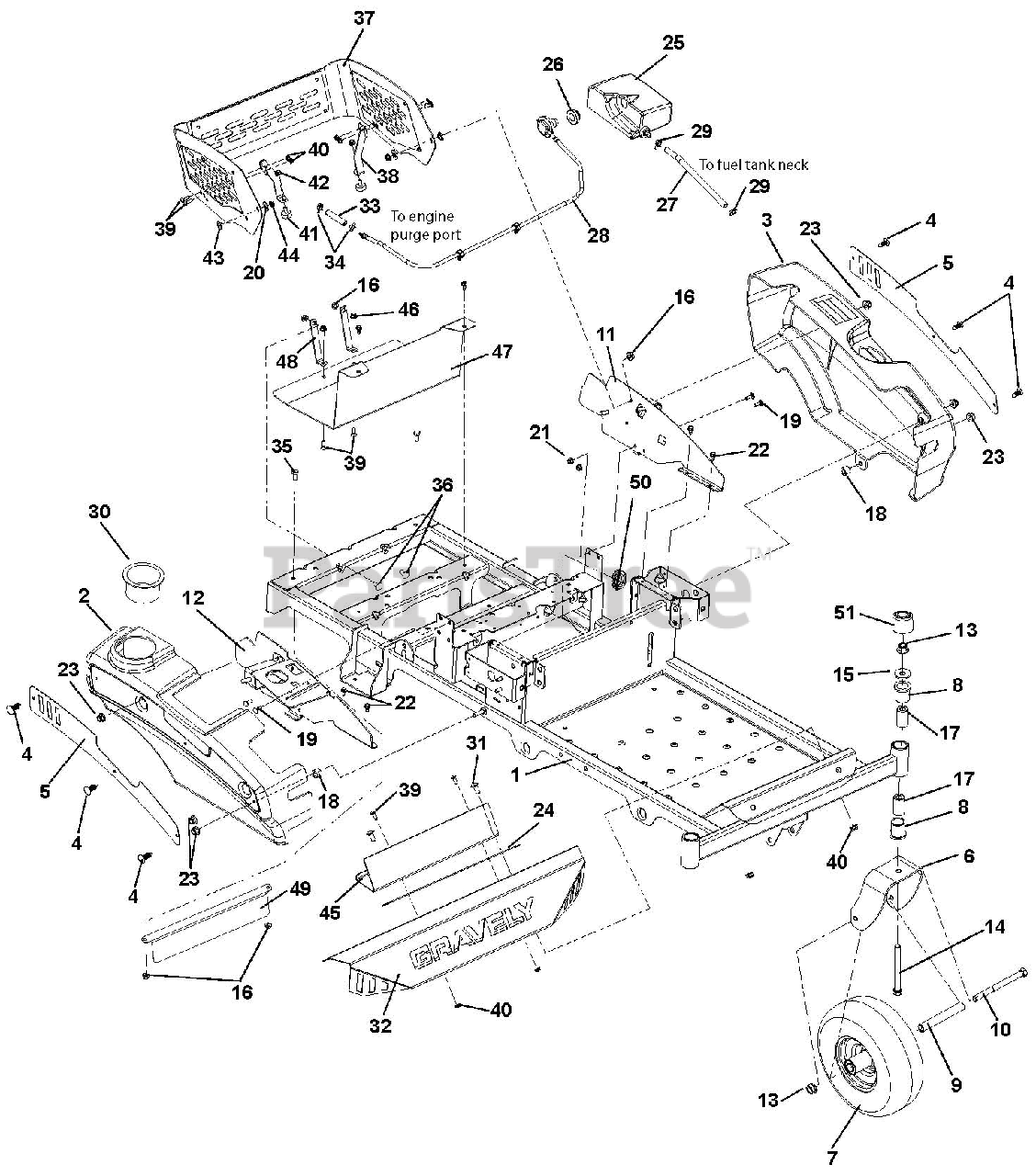

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 51525900

Weldment, Frame

$685.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

Fender, Right Hand

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$1.49

$

In Stock, Qty 16

0

5

Gravely 04717553

Plate, Fender

$22.99

$

In Stock, only 3 left!

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 1 left!

0

7

Gravely 07100124

Wheel/Tire Assembly, 11 x 4-5

$74.99

$

In Stock, Qty 20+

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Gravely 04717353

Weldment, Left Hand Fender Mount

$

$

Not available

12

Gravely 04821253

Weldment, Right Hand Fender Mount

$82.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00363100

Spacer, Caster

$6.99

$

In Stock, only 4 left!

0

18

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

19

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

20

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06500012

Nut, Locking Top Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

22

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06545400

Nut, Locking Nylon Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03833800

Grip, Adhesive, 1" x 16" BLK

$

$

Not available

25

Gravely 04423000

Expansion Tank Subassembly
(Superseded to 05244800)

$40.99

$

Usually ships in 4-12 days

0

26

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.49

$

In Stock, Qty 9

0

27

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas, 7 inches

$1.49

$

In Stock, Qty 20+

0

28

Gravely 04745700

Assembly, Fuel Vent – Kohler, Briggs and Stratton
(Superseded to 04843800)

$

$

Not available

29

Gravely 03278800

Clamp, Hose Wire .490/.510 x .116

$1.49

$

In Stock, Qty 20+

0

30

Gravely 04192700

Cupholder, Snap-In, 3.75 OD

$

$

Not available

31

Gravely 06218900

Bolt, Round Head Square Neck .31-18 x .75

$

$

Not available

32

Gravely 04717053

Foot Rest

$64.99

$

Usually ships in 4-12 days

0

33

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

Note: (as required)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 04097700

Clamp-Hose, Spring .188

$

$

Not available

35

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

37

Gravely 51526600

Assembly, Engine Wrap

$175.99

$

Usually ships in 4-12 days

0

38

Gravely 04719351

Bracket, Engine Wrap Foot

$

$

Currently unavailable

39

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06500710

Nut, Center Lock Flange .25-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

42

Gravely 06530400

Nut, Serrated Flange .31-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05501127

Bushing, Flange .325 x .499 x .3 x .875

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06528700

Nut, Center Lock Flange .31-18
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 04717151

Plate, Back Foot Rest

$

$

Not available

46

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 04739351

Guard, Heat Shield, ZT

$54.99

$

Usually ships in 4-12 days

0

48

Gravely 04739451

Strap, Heat Shield, ZT

$14.99

$

Usually ships in 4-12 days

0

49

Gravely 04739551

Guard, Hot Surface, ZT

$

$

Not available

50

Gravely 07506500

Grommet, 1.0 I.D. x 1.38 O.D.

$3.49

$

In Stock, only 1 left!

0

51

Gravely 07500233

Cap, Dust

$9.49

$

In Stock, only 2 left!

0
