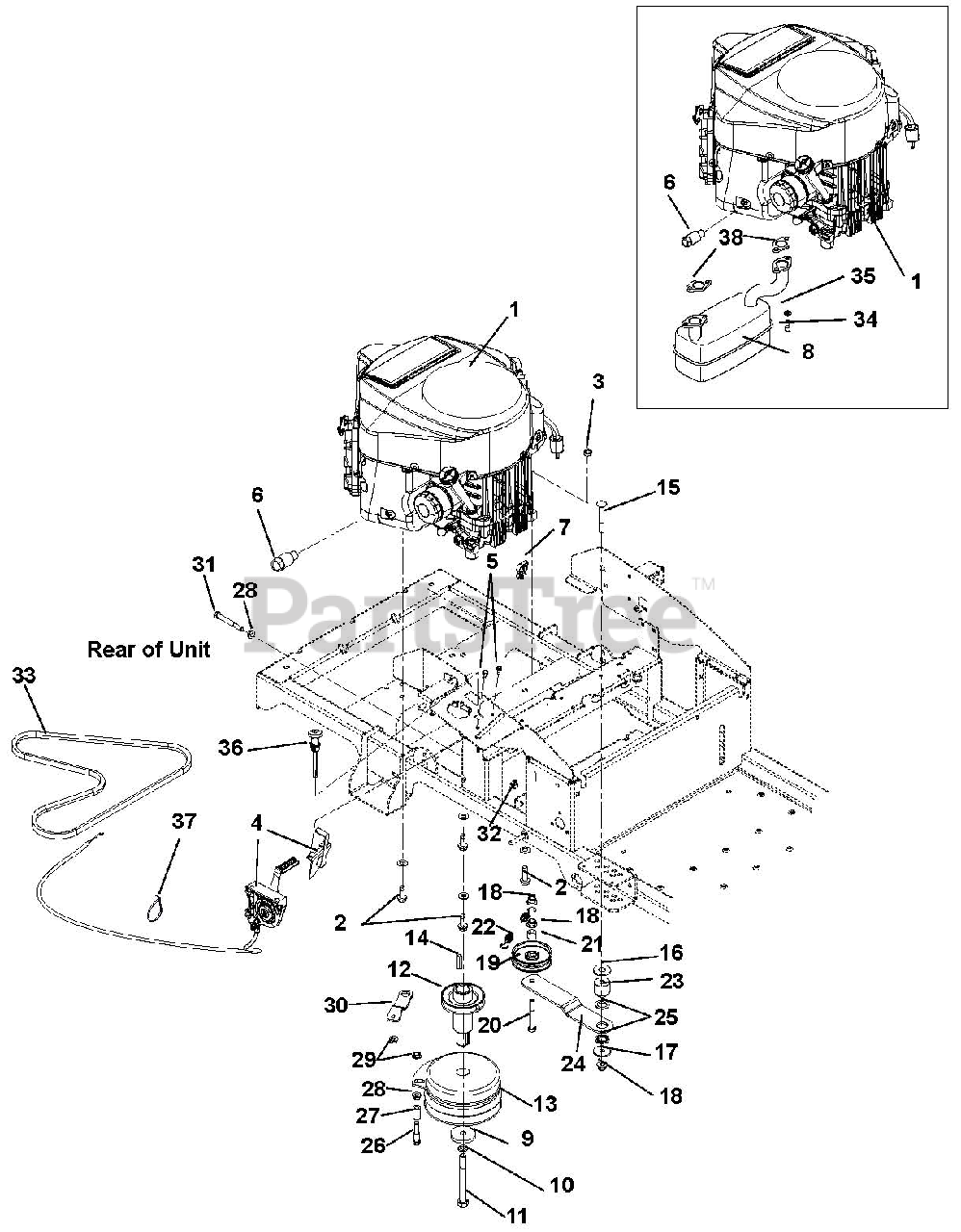

915211 - Ariens Zoom 34" Zero-Turn Mower, 19hp Kohler Twin (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 34" Zero-Turn Mower, 19hp Kohler Twin

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 08201126

ENGINE, KOHLER TWIN 21HP

Note: (915215, 235)

$

$

Not available

1

Ariens 08201125

ENGINE, KOHLER TWIN 19 HP

Note: (915209, 211, 213, 233)

$

$

Not available

2

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

3

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06900416

CABLE, THROTTLE

$34.99

$

In Stock, only 1 left!

0

5

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

6

Ariens 03943600

DRAIN, OIL

$11.99

$

In Stock, only 3 left!

0

7

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 04749600

MUFFLER, KOHLER TWIN

$71.99

$

Usually ships in 4-12 days

0

9

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

10

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

12

Ariens 07338600

WLDMT, CRANKSHAFT EXTENSION

$85.99

$

Usually ships in 4-12 days

0

13

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

In Stock, only 1 left!

0

14

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

15

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07300221

PULLEY, ENGINE CLUTCH 03608

$30.99

$

In Stock, only 2 left!

0

20

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

21

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

22

Ariens 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

23

Ariens 03961100

SPACER, GROUND DRIVE IDLER

$5.99

$

In Stock, only 1 left!

0

24

Ariens 03961067

IDLER ARM, GROUND DRIVE

$

$

Not available

25

Ariens 03960700

BUSHING, IDLER ARM

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 05901418

SCR-CAP .31-18X1 3/4 S/HD YWZC

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 2 left!

0

28

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 03956751

BRKT, CLUTCH STOP

$11.99

$

Usually ships in 4-12 days

0

31

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

32

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 07200010

V-BELT, HA-RAW EDGE

$36.99

$

In Stock, only 4 left!

0

34

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06900408

CABLE, CHOKE (SNAP IN)

$39.99

$

Usually ships in 4-12 days

0

37

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

38

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

$9.99

$

Usually ships in 4-12 days

0
