915210 (ZT 34) - Gravely 34" Zero-Turn Mower (SN: 000101 & Above) Mower Deck, Belt And Idlers Parts Diagram

34" Zero-Turn Mower

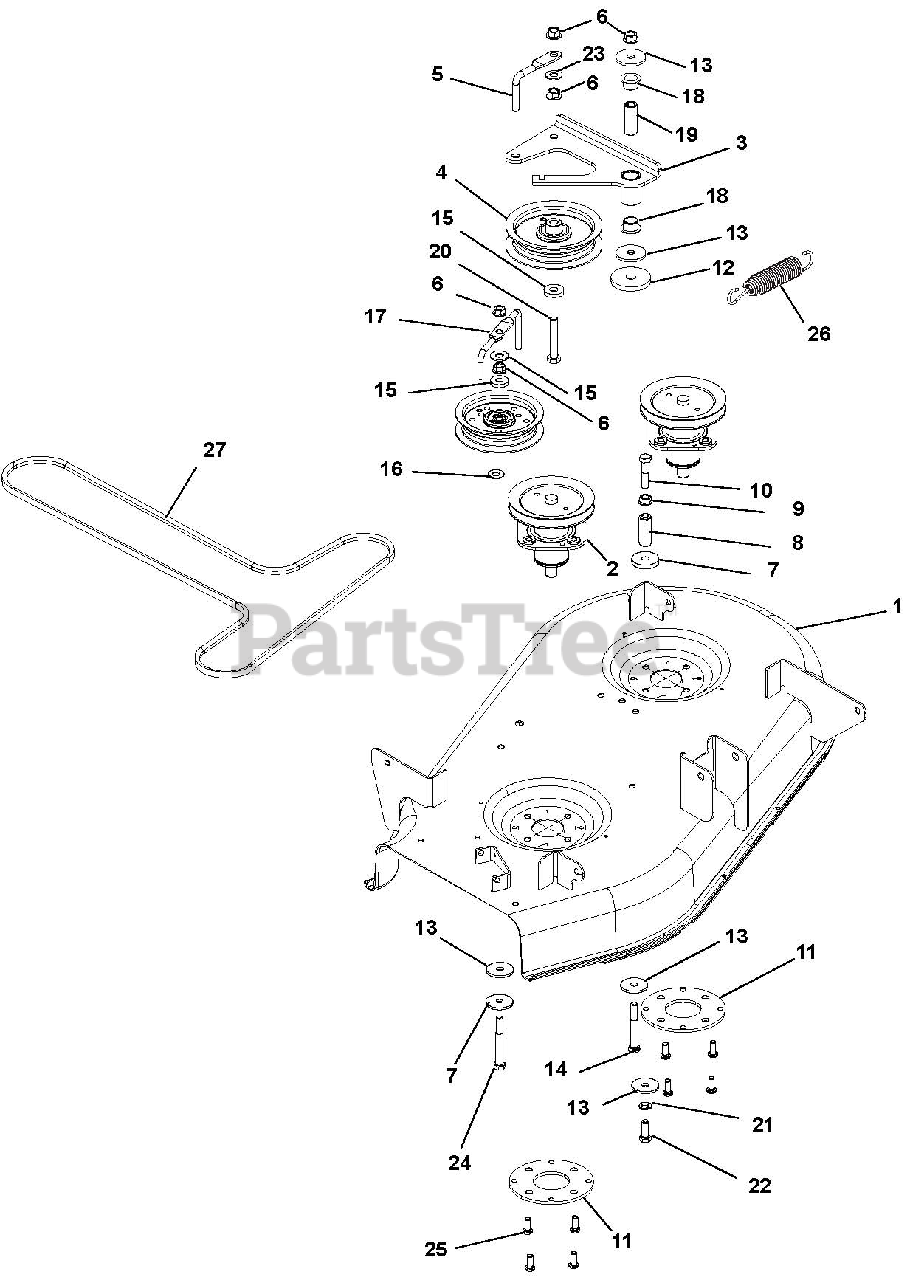

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Gravely 51525500

Kit, Gravely 34" Deck with Decals

$685.99

$

Usually ships in 4-12 days

0

2

Gravely 51519500

Assembly, Spindle

$156.99

$

In Stock, Qty 7

0

3

Gravely 04430867

Weldment, Idler Arm
(Superseded to 04430851)

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

5

Gravely 03828853

Wireform, Belt Finger
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

9

Gravely 06534900

Nut, Spin Lock, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03839053

Plate, REINF, Spindle

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

13

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

14

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03974153

Belt Finger
(Superseded to 03974100)

$

$

Not available

18

Gravely 05500907

Bushing, Flange, .625 x .750 x .500 x 1.00

$5.99

$

In Stock, Qty 20+

0

19

Gravely 03763400

Spacer, .375ID x .625D x 1.66 Promaster

$3.99

$

In Stock, Qty 20+

0

20

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

25

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 08320300

Spring, Tension .135 x .98 x 6.0

$17.99

$

In Stock, Qty 20+

0

27

Gravely 07200116

V-Belt, HA-Wrapped Clutching

$63.99

$

In Stock, only 3 left!

0
