915207 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Control Panel - Briggs & Stratton Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Briggs & Stratton

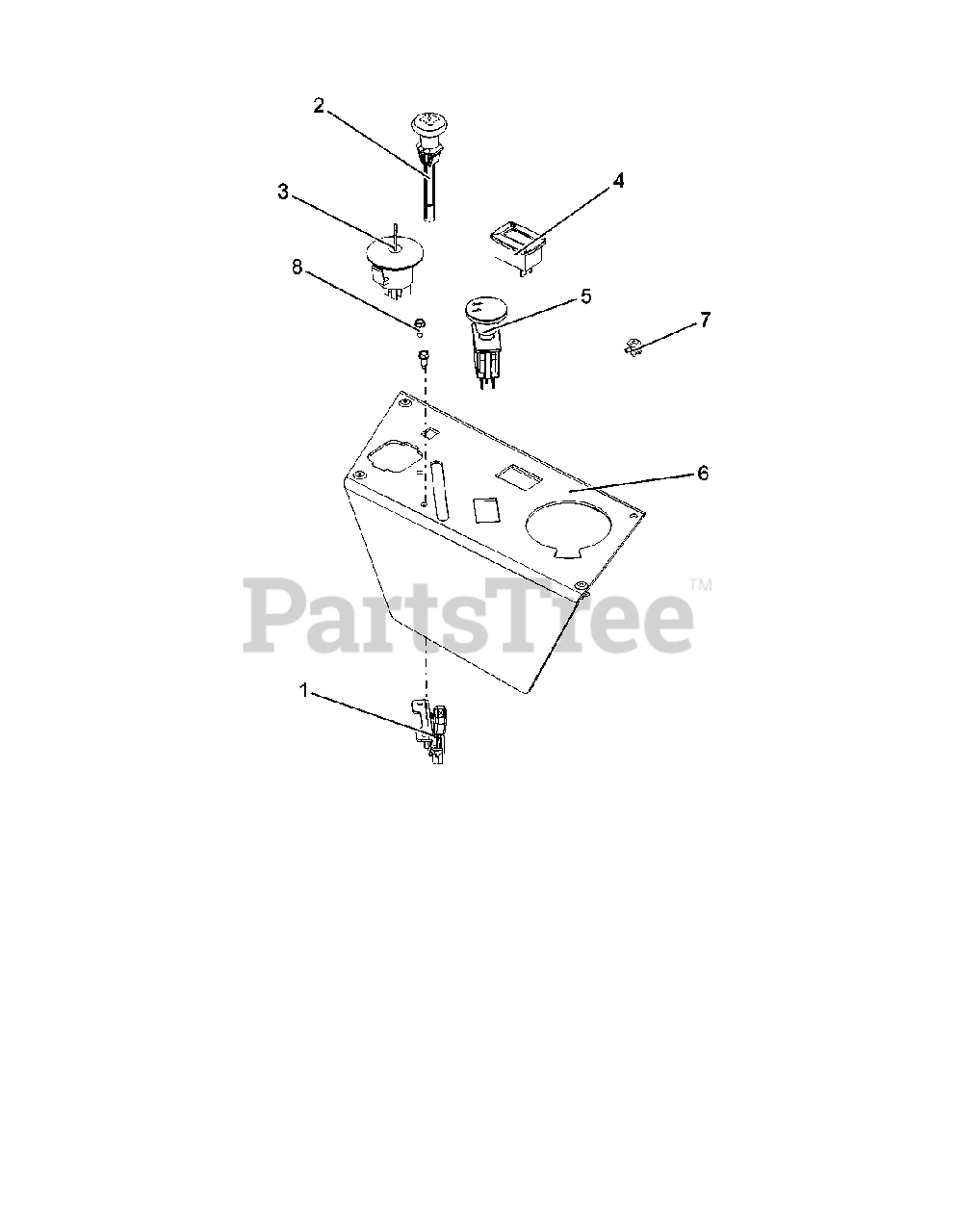

Control Panel - Briggs & Stratton Parts Diagram

  • Title
1

Ariens 06900633

CABLE, THROTTLE CONTROL

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 06900621

CABLE - CHOKE, SNAP-IN

$28.99

$

In Stock, only 1 left!

0

3

Ariens 04974300

KEYSWITCH-IGNITION 4 POS

Note: IF YOU HAVE THE 7 TERMINAL SWITCH, IT MATES WITH 04974400 WIRE HARNESS

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

Note: IF YOU HAVE THE 5 TERMINAL SWITCH, IT MATES WITH 04794500 WIRE HARNESS

$18.99

$

In Stock, Qty 20+

0

4

Ariens 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

5

Ariens 04399600

SWITCH, CLUTCH (YELLOW)

$22.99

$

In Stock, only 1 left!

0

6

Ariens 04766959

PANEL, CONTROL

$

$

Not available

7

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

8

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0
